All Lift Pillar Mounted Jib Crane, 1 Ton All Lift Pillar Mounted Jib Crane, 1 Ton

All Lift Pillar Mounted Jib Crane, 1 Ton

$3,642.00
Reviews (0)
SKU:
ALLC-PM-Series-2

Estimated Lead Time: 2-3 weeks

Price and SKU will update based on options selected.
Current stock: 0

Cart Subtotal: $0.00

View cart Checkout
Description

Description

The All Lift Pillar Mounted Jib Crane (1 Ton) requires no foundation and mounts directly to the floor, with a top mount secured to the ceiling or other overhead support for stability. This design allows up to 360° of rotation depending on installation location, or rotation stops can be added to limit the swing range. Ideal for use as a primary or auxiliary crane in general manufacturing and assembly environments. The pillar mounted design also works well for handing off materials between adjacent workstations.

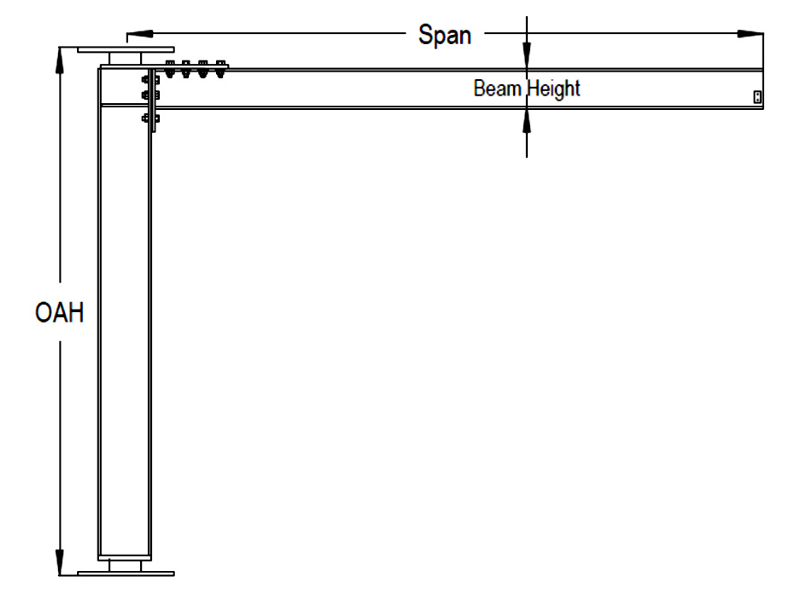

All Lift PM-Series Pillar Mounted Jib Crane, 1 Ton - 8' to 20' Span, 10' to 16' Overall Height

NOTE: Price listed is for smallest size model #PM208-10 (RFQ for pricing on others).

Capacity (Pounds) Model Span Height Overall Beam Height Flange Width Unit Weight
2000 PM208-10 8’ 10’ 8” 5-1/4” 641#
2000 PM210-10 10’ 10’ 12” 6 ½” 787#
2000 PM212-10 12’ 10’ 12” 6 ½” 847#
2000 PM214-10 14’ 10’ 12” 6 ½” 907#
2000 PM216-10 16’ 10’ 12” 6 ½” 980#
2000 PM218-10 18’ 10’ 16” 7” 1,356#
2000 PM220-10 20’ 10’ 16” 7” 1,436#
2000 PM208-12 8’ 12’ 8” 5-1/4” 701#
2000 PM210-12 10’ 12’ 12” 6 ½” 847#
2000 PM212-12 12’ 12’ 12” 6 ½” 907#
2000 PM214-12 14’ 12’ 12” 6 ½” 967#
2000 PM216-12 16’ 12’ 12” 6 ½” 1,040#
2000 PM218-12 18’ 12’ 16” 7” 1,436#
2000 PM220-12 20’ 12’ 16” 7” 1,516#
2000 PM208-14 8’ 14’ 8” 5-1/4” 761#
2000 PM210-14 10’ 14’ 12” 6 ½” 907#
2000 PM212-14 12’ 14’ 12” 6 ½” 967#
2000 PM214-14 14’ 14’ 12” 6 ½” 1,027#
2000 PM216-14 16’ 14’ 12” 6 ½” 1,100#
2000 PM218-14 18’ 14’ 16” 7” 1,516#
2000 PM220-14 20’ 14’ 16” 7” 1,596#
2000 PM208-16 8’ 16’ 8” 5-1/4” 821#
2000 PM210-16 10’ 16’ 12” 6 ½” 967#
2000 PM212-16 12’ 16’ 12” 6 ½” 1,027#
2000 PM214-16 14’ 16’ 12” 6 ½” 1,087#
2000 PM216-16 16’ 16’ 12” 6 ½” 1,160#
2000 PM218-16 18’ 16’ 16” 7” 1,596#
2000 PM220-16 20’ 16’ 16” 7” 1,676#

Available Options (RFQ):

  • Tagline Festooning
  • Hoists & Trolleys

Installation Requirements:

  • Includes (2) moun ng plates and end stops. 7/8” diameter mounting bolts NOT included
  • Mounting is to be determined by others based on floor thickness and overhead structure to be mounted to.
  • Bolts to be Grade 5 or better.
Reviews

Reviews (0)

Be the first to review this product.

Write a Review


Additional Info

Additional Info

SKU:
ALLC-PM-Series-2
Availability:
Estimated Lead Time: 2-3 weeks
Shipping:
Calculated at Checkout
Mounting:
Pillar
Standard Capacities:
Up to 1 ton
Spans:
Up to 20 ft.
Power Option:
No
