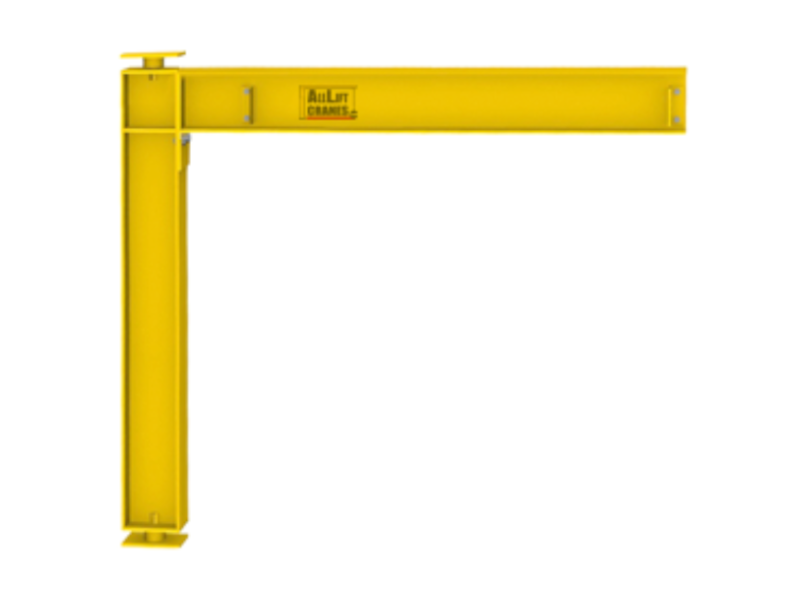

All Lift Pillar Mounted Jib Crane, 1/2 Ton All Lift Pillar Mounted Jib Crane, 1/2 Ton

All Lift Pillar Mounted Jib Crane, 1/2 Ton

$3,794.00
Reviews (0)
SKU:
ALLC-PM-Series-1

Estimated Lead Time: 2-3 weeks

Price and SKU will update based on options selected.
Current stock: 0

Cart Subtotal: $0.00

View cart Checkout
Description

Description

The All Lift Pillar Mounted Jib Crane (1/2 Ton) requires no foundation and mounts directly to the floor, with a top mount secured to the ceiling or other overhead support for stability. This design allows up to 360° of rotation depending on installation location, or rotation stops can be added to limit the swing range. Ideal for use as a primary or auxiliary crane in general manufacturing and assembly environments. The pillar mounted design also works well for handing off materials between adjacent workstations.

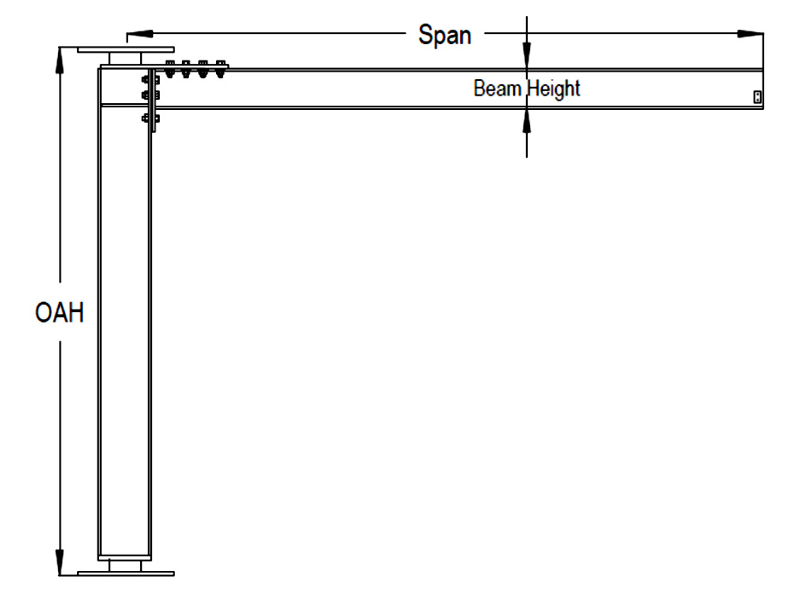

All Lift PM-Series Pillar Mounted Jib Crane, 1/2 Ton - 8' to 20' Span, 10' to 16' Overall Height

NOTE: Price listed is for smallest size model #PM10810 (RFQ for pricing on others).

Capacity (Pounds) Model Span Height Overall Beam Height Flange Width Unit Weight
1000 PM108-10 8’ 10’ 8” 5-1/4” 630#
1000 PM110-10 10’ 10’ 8” 5-1/4” 672#
1000 PM112-10 12’ 10’ 8” 5-1/4” 714#
1000 PM114-10 14’ 10’ 12” 6 ½” 777#
1000 PM116-10 16’ 10’ 12” 6 ½” 813#
1000 PM118-10 18’ 10’ 12” 6 ½” 905#
1000 PM120-10 20’ 10’ 12” 6 ½” 947#
1000 PM108-12 8’ 12’ 8” 5-1/4” 690#
1000 PM110-12 10’ 12’ 8” 5-1/4” 732#
1000 PM112-12 12’ 12’ 8” 5-1/4” 774#
1000 PM114-12 14’ 12’ 12” 6 ½” 837#
1000 PM116-12 16’ 12’ 12” 6 ½” 873#
1000 PM118-12 18’ 12’ 12” 6 ½” 975#
1000 PM120-12 20’ 12’ 12” 6 ½” 1,017#
1000 PM108-14 8’ 14’ 8” 5-1/4” 750#
1000 PM110-14 10’ 14’ 8” 5-1/4” 792#
1000 PM112-14 12’ 14’ 8” 5-1/4” 834#
1000 PM114-14 14’ 14’ 12” 6 ½” 897#
1000 PM116-14 16’ 14’ 12” 6 ½” 933#
1000 PM118-14 18’ 14’ 12” 6 ½” 1,045#
1000 PM120-14 20’ 14’ 12” 6 ½” 1,087#
1000 PM108-16 8’ 16’ 8” 5-1/4” 810#
1000 PM110-16 10’ 16’ 8” 5-1/4” 852#
1000 PM112-16 12’ 16’ 8” 5-1/4” 894#
1000 PM114-16 14’ 16’ 12” 6 ½” 957#
1000 PM116-16 16’ 16’ 12” 6 ½” 993#
1000 PM118-16 18’ 16’ 12” 6 ½” 1,115#
1000 PM120-16 20’ 16’ 12” 6 ½” 1,157

Available Options (RFQ):

  • Tagline Festooning
  • Hoists & Trolleys

Installation Requirements:

  • Includes (2) moun ng plates and end stops. 7/8” diameter mounting bolts NOT included
  • Mounting is to be determined by others based on floor thickness and overhead structure to be mounted to.
  • Bolts to be Grade 5 or better.
Reviews

Reviews (0)

Be the first to review this product.

Write a Review


Additional Info

Additional Info

SKU:
ALLC-PM-Series-1
Availability:
Estimated Lead Time: 2-3 weeks
Shipping:
Calculated at Checkout
Mounting:
Pillar
Standard Capacities:
Up to 1,000 lbs.
Spans:
Up to 20 ft.
Power Option:
No
