All Lift Wall-Mounted Jib Crane, 1 Ton

$1,895.00

Reviews (0)

SKU:: ALLC-CW-Series-3

Estimated Lead Time: 2-3 weeks

Description
Reviews
Additional Info

Description

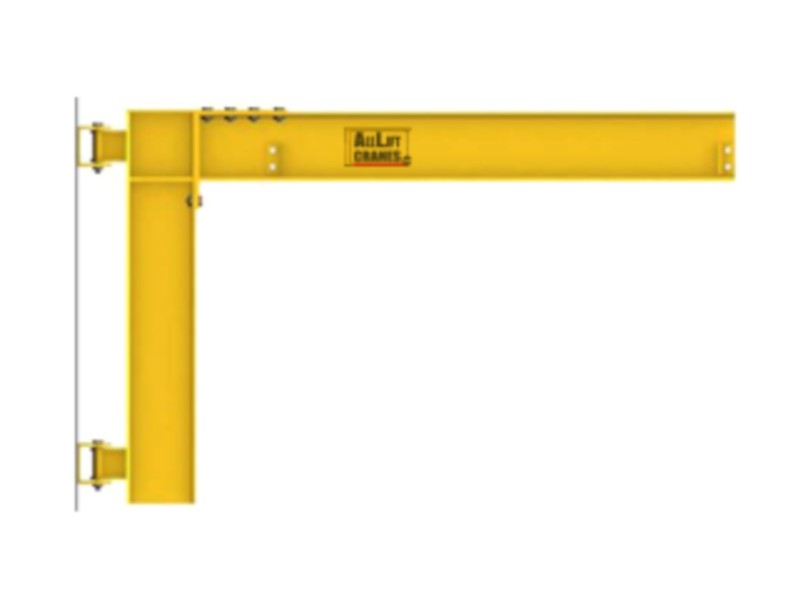

The All Lift Cantilevered Wall Mounted Jib Crane provides hoist coverage with up to 200° of rotation. Because it mounts directly to a wall or vertical building column, it can be installed very close to the underside of the lowest ceiling obstruction, maximizing available lift height for the hoist. The design consists of a vertical mast secured to two brackets on a wall or structural beam, with a boom that extends outward perpendicular from the mounting surface.

Well suited for individual use in bays, along walls, or between building columns. Also works as a supplement to an existing overhead crane or monorail system where additional point-of-use lifting is needed.

All Lift CW-Series Cantilevered Wall Mounted Jib Crane, 1 Ton - 8' to 20' Span

NOTE: Price listed is for smallest size model #CW208 (RFQ for pricing on others).

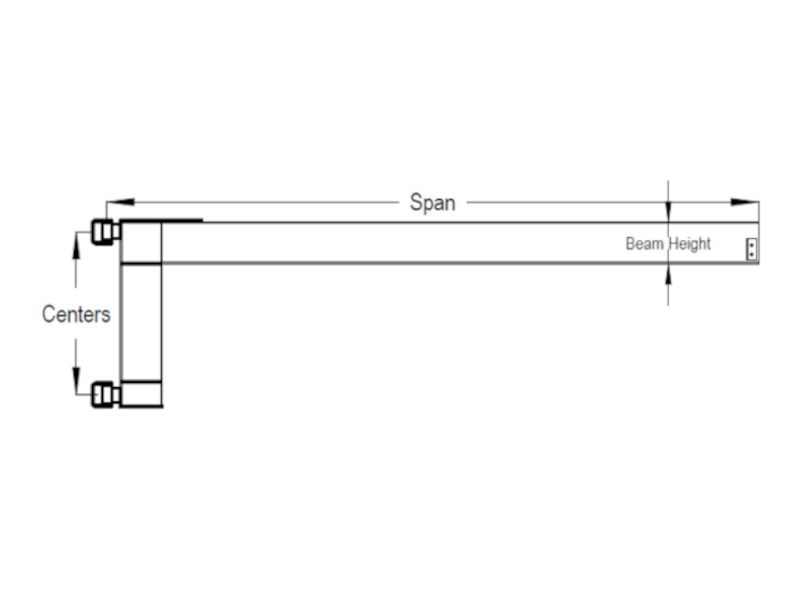

Capacity (Pounds)	Model	Span	Bracket Centers	Beam Height	Flange Width	Thrust & Pull	Weight lbs.
2000	CW208	8’	4’ – 0”	8”	5-1/4”	5,250#	469
2000	CW210	10’	5’ – 0”	12”	6 ½”	5,335#	626
2000	CW212	12’	5’ – 0”	12”	6 ½”	6,450#	686
2000	CW214	14’	5’ – 0”	12”	6 ½”	7,605#	746
2000	CW216*	16’	6’ – 0”	12”	6 ½”	7,390#	873
2000	CW218*	18’	6’ – 0”	16”	7”	8,750#	1223
2000	CW220*	20’	6’ – 0”	16”	7”	9,805#	1337

*Bolt together design - All other models are WELDED.

Available Options (RFQ):

Tagline Festooning
Hoists & Trolleys
Rotation Stops

Installation Requirements:

Mounting bolts not included – use grade 5 or be er provided by the installer.
Allow for 3” clearance above and along entire length of boom.
Must have a structurally sound wall, column, or base for supporting the Jib Crane.
