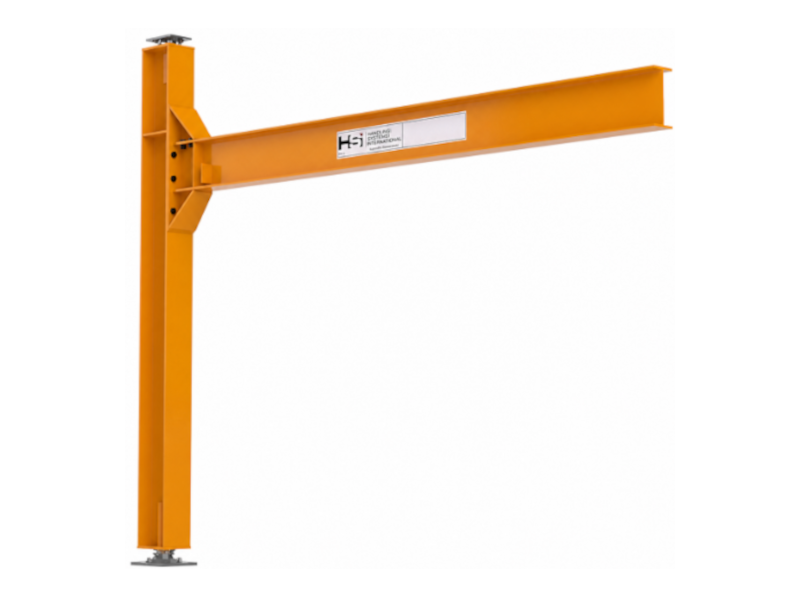

HSI Pillar Mounted Jib Crane, 1 Ton
$3,870.77
- SKU:
- HANL-314-3
Estimated Lead Time: 2-3 weeks
Description
Reviews
Additional Info
Description
The Handling Systems International Model 314 Pillar Mounted Jib Crane is designed to mount to the floor with upper support from a building truss or bracket.
This provides an economical 360° rotation solution with no special foundation requirement, reducing overall installation cost. Well suited for low headroom applications, and also available with a drop boom configuration.
- Capacities up to 10 Ton
- Most economical 360 rotation jib crane
- No foundation requirement
- Low force exertion on supporting structure
- Perfect solution for overhead crane work cell handling
HSI Model 314 Mast Style Jib Crane, 1 Ton - 8' to 20' Span (also available in 3,000lb capacity)
NOTE: Price listed is for smallest size model #314-2000-8-10 (RFQ for pricing on others).
Not seeing what you're looking for? Please RFQ, many sizes available not listed.
| Model | Capacity (LBS) |
Span (S) | Mounting Height (MH) | Height Under Boom (HUB) (Feet) |
Approx. Weight (lbs.) |
| 314-2000-8-10 | 2000 | 8'-0" | 10'-0" | 9'-2" | 555 |
| 314-2000-8-14 | 2000 | 8'-0" | 14'-0" | 13'-2" | 640 |
| 314-2000-8-20 | 2000 | 8'-0" | 20'-0" | 19'-2" | 967 |
| 314-2000-10-10 | 2000 | 10'-0" | 10'-0" | 9'-0" | 780 |
| 314-2000-10-14 | 2000 | 10'-0" | 14'-0" | 13'-0" | 896 |
| 314-2000-10-20 | 2000 | 10'-0" | 20'-0" | 19'-0" | 1076 |
| 314-2000-12-10 | 2000 | 12'-0" | 10'-0" | 9'-0" | 827 |
| 314-2000-12-14 | 2000 | 12'-0" | 14'-0" | 13'-0" | 947 |
| 314-2000-12-20 | 2000 | 12'-0" | 20'-0" | 19'-0" | 1127 |
| 314-2000-14-10 | 2000 | 14'-0" | 10'-0" | 8'-10" | 970 |
| 314-2000-14-14 | 2000 | 14'-0" | 14'-0" | 12'-10" | 1087 |
| 314-2000-14-20 | 2000 | 14'-0" | 20'-0" | 18'-10" | 1410 |
| 314-2000-16-10 | 2000 | 16'-0" | 10'-0" | 8'-10" | 1031 |
| 314-2000-16-14 | 2000 | 16'-0" | 14'-0" | 12'-10" | 1152 |
| 314-2000-16-20 | 2000 | 16'-0" | 20'-0" | 18'-10" | 1477 |
| 314-2000-18-10 | 2000 | 18'-0" | 10'-0" | 8'-6" | 1396 |
| 314-2000-18-14 | 2000 | 18'-0" | 14'-0" | 12'-6" | 1522 |
| 314-2000-18-20 | 2000 | 18'-0" | 20'-0" | 18'-6" | 2040 |
| 314-2000-20-10 | 2000 | 20'-0" | 10'-0" | 8'-6" | 1488 |
| 314-2000-20-14 | 2000 | 20'-0" | 14'-0" | 12'-6" | 1609 |
| 314-2000-20-20 | 2000 | 20'-0" | 20'-0" | 18'-6" | 2134 |
Available Options (RFQ):
- Tagline Festooning
- Hoists & Trolleys
- Rotation Stops
- Outdoor application
- Motorized Rotation
- Hand Geared Rotation
- Custom Heights & Spans
Reviews (0)
Be the first to review this product.
Additional Info
- SKU:
- HANL-314-3
- Availability:
- Estimated Lead Time: 2-3 weeks
- Shipping:
- Calculated at Checkout
- Mounting:
- Pillar
- Standard Capacities:
- Up to 1 ton
- Spans:
- Up to 20 ft.
- Power Option:
- Yes
- Heights:
- Determined by structure
