All Lift Light Duty Floor Mounted Jib Crane, 1/4 Ton All Lift Light Duty Floor Mounted Jib Crane, 1/4 Ton

All Lift Light Duty Floor Mounted Jib Crane, 1/4 Ton

$2,022.00
Reviews (0)
SKU:
ALLC-L-Series-1

Estimated Lead Time: 2-3 weeks

Price and SKU will update based on options selected.
Current stock: 0

Cart Subtotal: $0.00

View cart Checkout
Description

Description

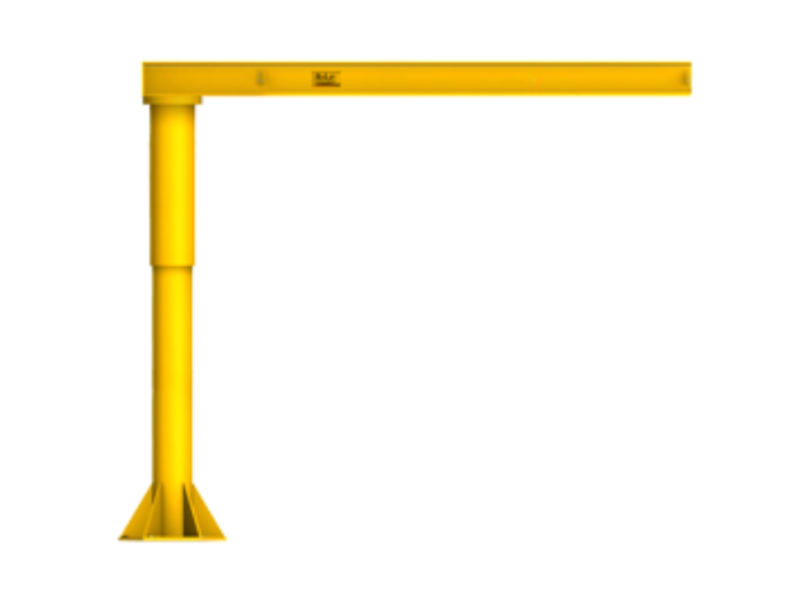

The All Lift Light Duty Floor Mounted Jib Crane (1/4 Ton) is constructed with a heavy wall structural steel pipe mast and an oversized reinforced base plate, providing minimal deflection and consistent alignment under load. The boom is a rolled steel I-beam with tapered flange for smooth trolley travel across the full span, rotating a full 360° for maximum coverage. Removable safety end stops are included on both ends to limit trolley travel. Built for durability in lighter-duty applications, this freestanding jib crane features a 26" diameter base, 22" bolt circle, and 6 mounting holes at 1-1/4" diameter each.

All Lift L-Series Light Duty Floor Mounted Jib Crane, 1/4 Ton - 8', 10', or 12' Height Under Beam

NOTE: Price listed is for smallest size model #L586 (RFQ for pricing on others).

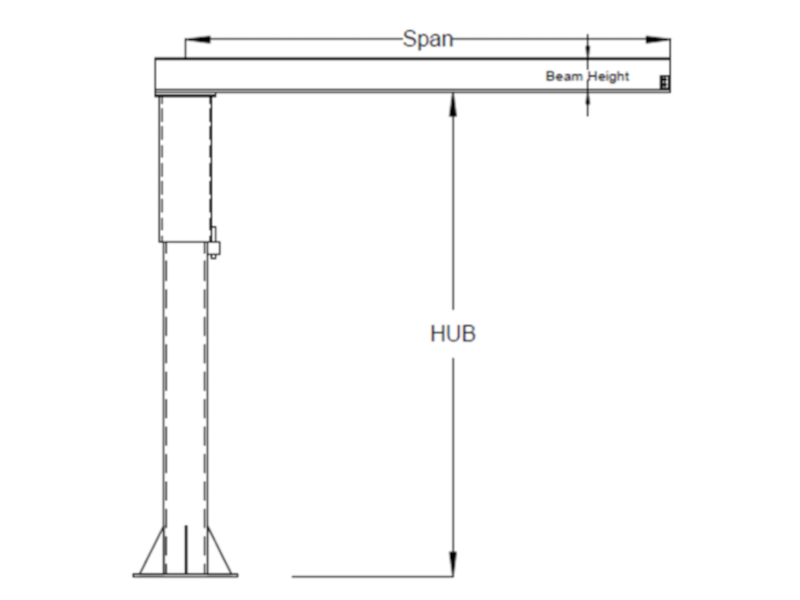

Capacity (Pounds) Model Hub Span Beam Height Flange Width Base Diameter Unit Weight
500 L586* 8’ 6’ 6” 4” 26”* 478#
500 L588* 8’ 8’ 6” 4” 26”* 510#
500 L5810* 8’ 10’ 6” 4” 26”* 542#
500 L5812* 8’ 12’ 6” 4” 26”* 669#
500 L5814 8’ 14’ 8” 5-1/4” 26” 776#
500 L5816 8’ 16’ 8” 5-1/4” 26” 818#
500 L5106* 10’ 6’ 6” 4” 26”* 516#
500 L5108* 10’ 8’ 6” 4” 26”* 548#
500 L51010* 10’ 10’ 6” 4” 26”* 580#
500 L51012* 10’ 12’ 6” 4” 26”* 713#
500 L51014 10’ 14’ 8” 5-1/4” 26” 820#
500 L51016 10’ 16’ 8” 5-1/4” 26” 862#
500 L5126* 12’ 6’ 6” 4” 26”* 544#
500 L5128* 12’ 8’ 6” 4” 26”* 586#
500 L51210* 12’ 10’ 6” 4” 26”* 618#
500 L51212* 12’ 12’ 6” 4” 26”* 758#
500 L51214 12’ 14’ 8” 5-1/4” 26” 865#
500 L51216 12’ 16’ 8” 5-1/4” 26” 907#

Units with (*) require 3’ deep x 4' square foundations. All others require 3’ deep by 5’ square concrete foundations with rebar.

 Available Options (RFQ):

  • Tagline Festooning
  • Hoists & Trolleys
  • Anchor Bolt Kits
  • Bolt Pattern Plywood Template
  • Rotation Stops
  • Collector Rings
  • Outdoor Applications

Installation Requirements:

  • 3’ deep by 4’ square or 3’ deep by 5’ square cement foundation, depending on span.
  • 3000 psi of compressive force-reinforced rebar 5/8” diameter on top and bottom, 12” on center.
Reviews

Reviews (0)

Be the first to review this product.

Write a Review


Additional Info

Additional Info

SKU:
ALLC-L-Series-1
Availability:
Estimated Lead Time: 2-3 weeks
Shipping:
Calculated at Checkout
Mounting:
Floor
Standard Capacities:
Up to 500 lbs.
Spans:
Up to 16 ft.
Heights:
Up to 12 ft. (Under Beam)
Power Option:
No
