All Lift Heavy Duty Floor Mounted Jib Crane, 1 Ton

All Lift Heavy Duty Floor Mounted Jib Crane, 1 Ton

$3,886.00

Reviews (0)

SKU:: ALLC-H-Series-2

Estimated Lead Time: 2-3 weeks

Description
Reviews
Additional Info

Description

The All Lift Heavy Duty Floor Mounted Jib Crane (1 Ton) is built with a heavy wall structural steel pipe mast and oversized reinforced base plate, delivering minimal deflection and consistent alignment under load. The I-beam boom features a rolled steel construction with tapered flange, allowing smooth trolley travel across the full span. The boom rotates a full 360° and includes safety end stops on both ends to limit trolley travel. Designed for demanding shop environments, this freestanding jib crane is built to last with a 36" diameter base (or 48"), 32" bolt circle (or 44"), and 12 mounting holes at 1-1/4" diameter each.

All Lift H-Series Heavy Duty Floor Mounted Jib Crane, 1 Ton - 10', 12', 14', 16', 18', or 20' Height Under Beam

NOTE: Price listed is for smallest size model #H2108 (RFQ for pricing on others).

10' to 14" Height Under Beam (HUB)

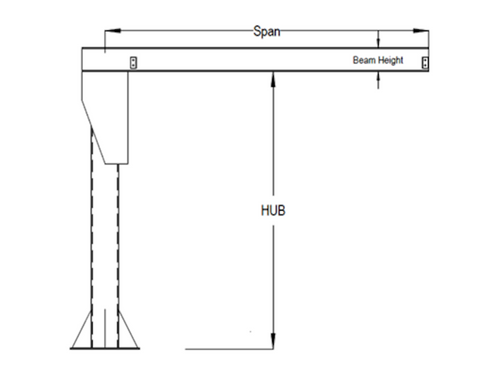

Capacity (Pounds)	Model	Hub	Span	Beam Height	Flange Width	Base Diameter	Weight lbs.
2000	H2108*	10’	8’	8”	5 1/4”	36”*	964
2000	H21010*	10’	10’	8”	5 1/4”	36”*	1006
2000	H21012**	10’	12’	12”	6 ½”	36”**	1462
2000	H21014**	10’	14’	12”	6 ½”	36”**	1525
2000	H21016	10’	16’	12”	6 ½”	36”	1652
2000	H21018	10’	18’	16”	7”	48”	2239
2000	H21020	10’	20’	16”	7”	48”	2453
2000	H2128*	12’	8’	8”	5 1/4”	36”*	1005
2000	H21210*	12’	10’	8”	5 1/4”	36”*	1047
2000	H21212**	12’	12’	12”	6 ½”	36”**	1564
2000	H21214**	12’	14’	12”	6 ½”	36”**	1702
2000	H21216	12’	16’	12”	6 ½”	36”	1762
2000	H21218	12’	18’	16”	7”	48”	2348
2000	H21220	12’	20’	16”	7”	48”	2578
2000	H2148*	14’	8’	8”	5 1/4”	36”*	1449
2000	H21410*	14’	10’	8”	5 1/4”	36”*	1491
2000	H21412**	14’	12’	12”	6 ½”	36”**	1661
2000	H21414**	14’	14’	12”	6 ½”	36”**	1811
2000	H21416	14’	16’	12”	6 ½”	36”	1871
2000	H21418	14’	18’	16”	7”	48”	2498
2000	H21420	14’	20’	16”	7”	48”	2703

Units with 36” diameter base plates with (*) have 4' deep x 5' square foundations, (**) have 4’ deep x 6 square foundations and all others have 4’ deep by 7’ square concrete foundations.

16' to 20" Height Under Beam (HUB)

Capacity (Pounds)	Model	Hub	Span	Beam Height	Flange Width	Base Diameter	Weight lbs.
2000	H21610*	16’	10’	8”	5-1/4”	36”*	1606
2000	H21612**	16’	12’	12”	6 ½”	36”**	1751
2000	H21614	16’	14’	12”	6 ½”	48”	2414
2000	H21616	16’	16’	16”	7”	48”	2668
2000	H21618	16’	18’	16”	7”	48”	2963
2000	H21620	16’	20’	16”	7”	48”	3043
2000	H21810*	18’	10’	12”	6 ½”	36”*	1906
2000	H21812	18’	12’	12”	6 ½”	48”	2494
2000	H21814	18’	14’	12”	6 ½”	48”	2554
2000	H21816	18’	16’	16”	7”	48”	3024
2000	H21818	18’	18’	16”	7”	48”	3104
2000	H21820	18’	20’	16”	7”	48”	3184
2000	H22010*	20’	10’	12”	6 ½”	36”*	2015
2000	H22012	20’	12’	12”	6 ½”	48”	2619
2000	H22014	20’	14’	16”	7”	48”	2964
2000	H22016	20’	16’	16”	7”	48”	3166
2000	H22018	20’	18’	16”	7”	48”	3237
2000	H22020	20’	20’	16”	7”	48”	3426

Units with 36” diameter base plates with (*) have 4' deep x 5' square foundations, (**) have 4’ deep x 6 square foundations and all others have 4’ deep by 7’ square concrete foundations.

Available Options (RFQ):

Tagline Festooning
Hoists & Trolleys
Anchor Bolt Kits
Bolt Pattern Plywood Template
Rotation Stops
Motorized Rotation
Collector Rings
Outdoor Applications
Custom size requirement

Installation Requirements:

4’ deep by 5’ square, 4’ deep by 6’ square, or 4’ deep by 7’ square cement foundation, depending on base plate
3000 psi of compressive force-reinforced rebar 3/4” diameter on top and bottom, 12” on center.
