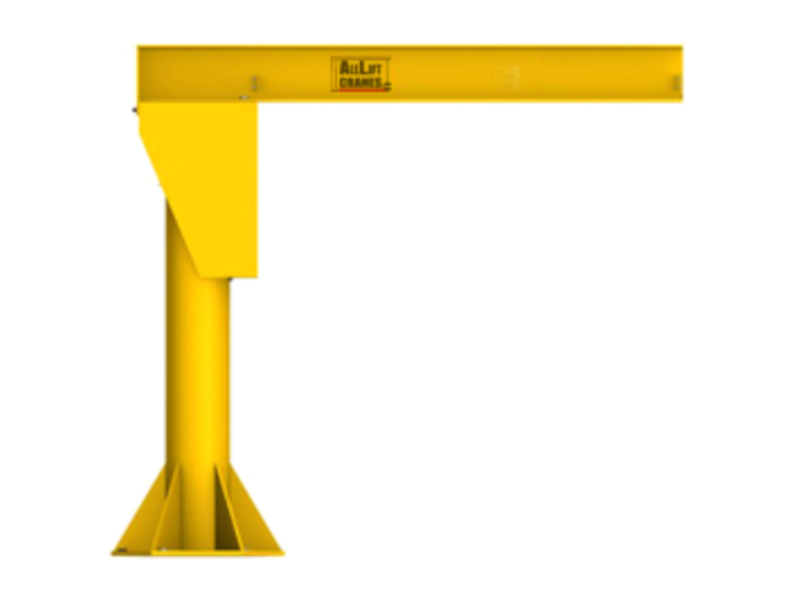

The All Lift Heavy Duty Floor Mounted Jib Crane (3 Ton) is built with a heavy wall structural steel pipe mast and oversized reinforced base plate, delivering minimal deflection and consistent alignment under load. The I-beam boom features a rolled steel construction with tapered flange, allowing smooth trolley travel across the full span. The boom rotates a full 360° and includes safety end stops on both ends to limit trolley travel. Designed for demanding shop environments, this freestanding jib crane is built to last with a 48" diameter base (or 54"), 44" bolt circle (or 50"), and 12 mounting holes at 1-1/4" diameter each.

All Lift H-Series Heavy Duty Floor Mounted Jib Crane, 3 Ton - 10', 12', 14', 16', 18', or 20' Height Under Beam

NOTE: Price listed is for smallest size model #H6108 (RFQ for pricing on others).

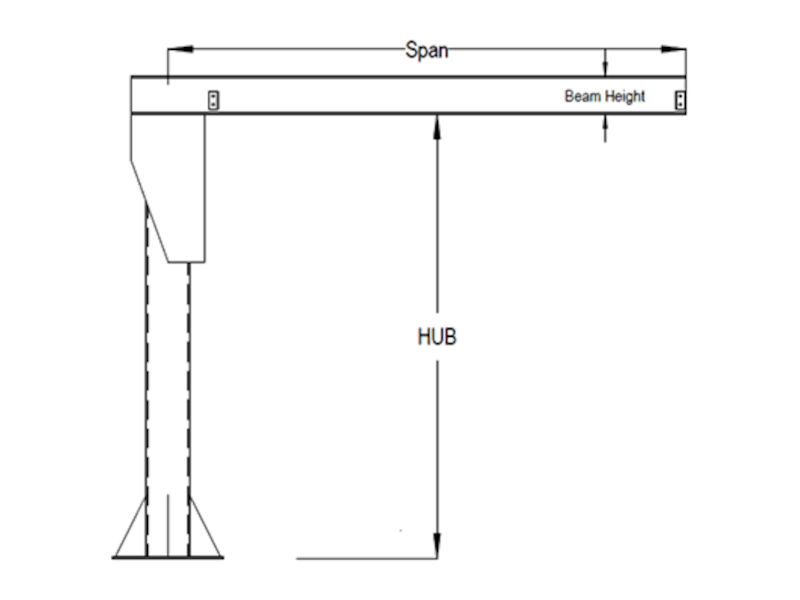

10' to 14" Height Under Beam (HUB)

Units with 48” diameter base plates that with (*) have 4’ deep x 7’ square foundations and all others have 4’ deep by 8’ square concrete foundations.

Units with 54” diameter base plates have 4’ deep by 9’ square concrete foundations.

16' to 20" Height Under Beam (HUB)

Units with 48” diameter base plates that with (*) have 4’ deep x 7’ square foundations and all others have 4’ deep by 8’ square concrete foundations.

Units with 54” diameter base plates have 4’ deep by 9’ square concrete foundations.

 Available Options (RFQ):

• Tagline Festooning
• Hoists & Trolleys
• Anchor Bolt Kits
• Bolt Pattern Plywood Template
• Rotation Stops
• Motorized Rotation
• Collector Rings
• Outdoor Applications
• Custom size requirement

Installation Requirements:

• 4’ deep by 7’ square, 4’ deep by 8' square, or 4’ deep by 9’ square cement foundation, depending on base plate.
• 3000 psi of compressive force-reinforced rebar 3/4” diameter on top and bottom, 12” on center.
