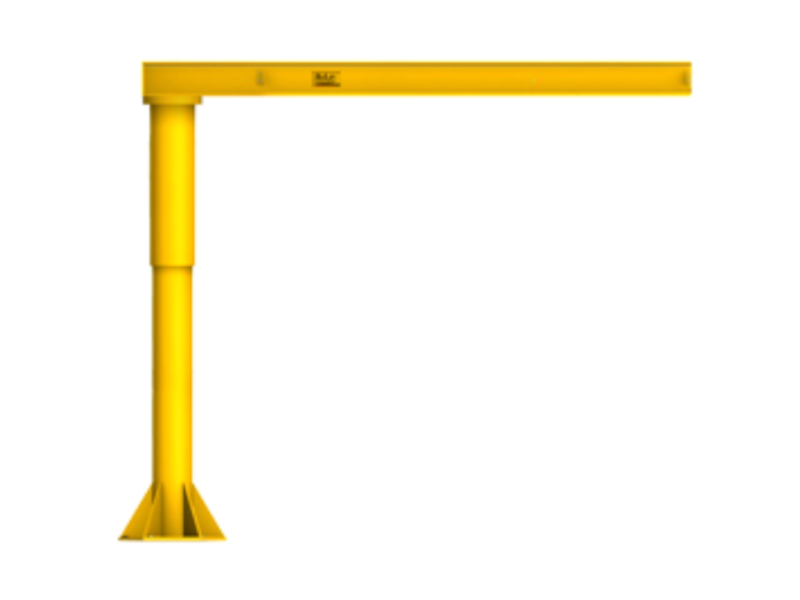

All Lift Light Duty Floor Mounted Jib Crane, 1/2 Ton

All Lift Light Duty Floor Mounted Jib Crane, 1/2 Ton

$2,165.00

Reviews (0)

SKU:: ALLC-L-Series-2

Estimated Lead Time: 2-3 weeks

Description
Reviews
Additional Info

Description

The All Lift Light Duty Floor Mounted Jib Crane (1/2 Ton) is constructed with a heavy wall structural steel pipe mast and an oversized reinforced base plate, providing minimal deflection and consistent alignment under load. The boom is a rolled steel I-beam with tapered flange for smooth trolley travel across the full span, rotating a full 360° for maximum coverage. Removable safety end stops are included on both ends to limit trolley travel. Built for durability in lighter-duty applications, this freestanding jib crane features a 26" diameter base, 22" bolt circle, and 6 mounting holes at 1-1/4" diameter each.

All Lift L-Series Light Duty Floor Mounted Jib Crane, 1/2 Ton - 8', 10', or 12' Height Under Beam

NOTE: Price listed is for smallest size model #L186 (RFQ for pricing on others).

Capacity (Pounds)	Model	Hub	Span	Beam Height	Flange Width	Base Diameter	Unit Weight
1000	L186*	8’	6’	6”	4”	26”*	573#
1000	L188*	8’	8’	6”	4”	26”*	605#
1000	L1810*	8’	10’	8”	5-1/4”	26”*	728#
1000	L1812*	8’	12’	8”	5-1/4”	26”*	770#
1000	L1814	8’	14’	8”	5-1/4”	26”	812#
1000	L1106*	10’	6’	6”	4”	26”*	617#
1000	L1108*	10’	8’	6”	4”	26”*	649#
1000	L11010*	10’	10’	8”	5-1/4”	26”*	785#
1000	L11012*	10’	12’	8”	5-1/4”	26”*	827#
1000	L11014	10’	14’	8”	5-1/4”	26”	869#
1000	L1126*	12’	6’	6”	4”	26”*	662#
1000	L1128*	12’	8’	6”	4”	26”*	694#
1000	L11210*	12’	10’	8”	5-1/4”	26”*	841#
1000	L11212*	12’	12’	8”	5-1/4”	26”*	883#
1000	L11214	12’	14’	8”	5-1/4”	26”	981#

Units with (*) require 3’ deep x 4' square foundations. All others require 3’ deep by 5’ square concrete foundations with rebar.

Available Options (RFQ):

Tagline Festooning
Hoists & Trolleys
Anchor Bolt Kits
Bolt Pattern Plywood Template
Rotation Stops
Collector Rings
Outdoor Applications

Installation Requirements:

3’ deep by 4’ square or 3’ deep by 5’ square cement foundation, depending on span.
3000 psi of compressive force-reinforced rebar 5/8” diameter on top and bottom, 12” on center.
