All Lift Heavy Duty Floor Mounted Jib Crane, 1/2 Ton

All Lift Heavy Duty Floor Mounted Jib Crane, 1/2 Ton

$3,925.00

Reviews (0)

SKU:: ALLC-H-Series-1

Estimated Lead Time: 2-3 weeks

Description
Reviews
Additional Info

Description

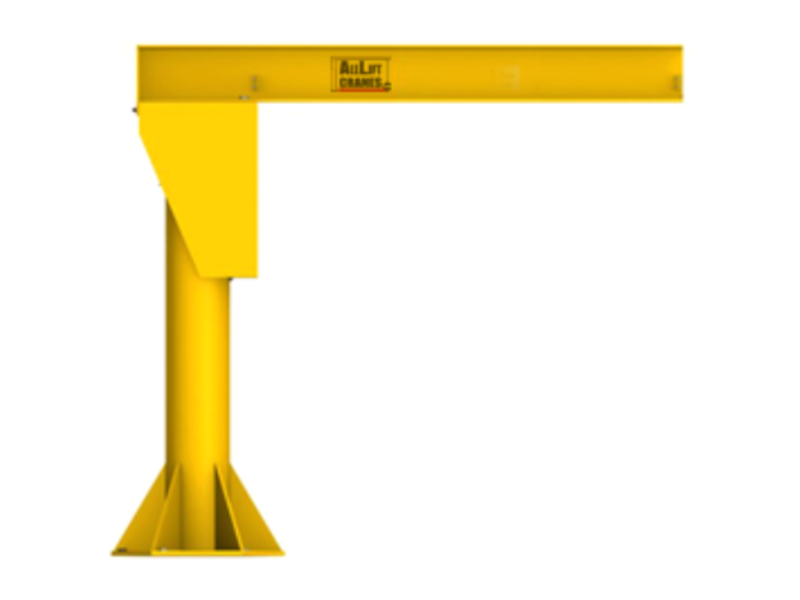

The All Lift Heavy Duty Floor Mounted Jib Crane (1/2 Ton) is built with a heavy wall structural steel pipe mast and oversized reinforced base plate, delivering minimal deflection and consistent alignment under load. The I-beam boom features a rolled steel construction with tapered flange, allowing smooth trolley travel across the full span. The boom rotates a full 360° and includes safety end stops on both ends to limit trolley travel. Designed for demanding shop environments, this freestanding jib crane is built to last with a 36" diameter base, 32" bolt circle, and 12 mounting holes at 1-1/4" diameter each.

All Lift H-Series Heavy Duty Floor Mounted Jib Crane, 1/2 Ton - 10', 12', 14', 16', 18', or 20' Height Under Beam

NOTE: Price listed is for smallest size model #H1108 (RFQ for pricing on others).

10' to 14" Height Under Beam (HUB)

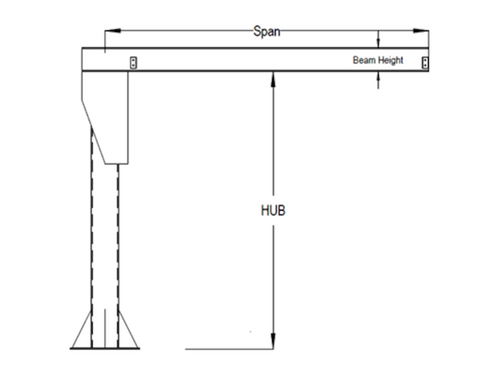

Capacity (Pounds)	Model	Hub	Span	Beam Height	Flange Width	Base Diameter	Weight lbs.
1000	H1108*	10’	8’	8”	5 1/4”	36”*	949
1000	H11010*	10’	10’	8”	5 1/4”	36”*	991
1000	H11012*	10’	12’	8”	5 1/4”	36”*	1033
1000	H11014	10’	14’	8”	5 1/4”	36”	1138
1000	H11016	10’	16’	12”	6 ½”	36”	1598
1000	H11018	10’	18’	12”	6 ½”	36”	1658
1000	H11020	10’	20’	12”	6 ½”	36”	1981
1000	H1128*	12’	8’	8”	5 1/4”	36”*	1005
1000	H11210*	12’	10’	8”	5 1/4”	36”*	1047
1000	H11212*	12’	12’	8”	5 1/4”	36”*	1089
1000	H11214	12’	14’	8”	5 1/4”	36”	1194
1000	H11216	12’	16’	12”	6 ½”	36”	1697
1000	H11218	12’	18’	12”	6 ½”	36”	1757
1000	H11220	12’	20’	12”	6 ½”	36”	2090
1000	H1148*	14’	8’	8”	5 1/4”	36”*	1061
1000	H11410*	14’	10’	8”	5 1/4”	36”*	1103
1000	H11412*	14’	12’	8”	5 1/4”	36”*	1145
1000	H11414	14’	14’	8”	5 1/4”	36”	1570
1000	H11416	14’	16’	12”	6 ½”	36”	1797
1000	H11418	14’	18’	12”	6 ½”	36”	1931
1000	H11420	14’	20’	12”	6 ½”	36”	2199

Units with (*) require 3' deep x 4' square foundations. All others require 3’ deep x 5’ square concrete foundations with rebar.

16' to 20" Height Under Beam (HUB)

Capacity (Pounds)	Model	Hub	Span	Beam Height	Flange Width	Base Diameter	Weight lbs.
1000	H11610*	16’	10’	8”	5 1/4”	36”*	1606
1000	H11612*	16’	12’	8”	5 1/4”	36”*	1679
1000	H11614	16’	14’	8”	5 1/4”	36”	1721
1000	H11616	16’	16’	12”	6 ½”	36”	1980
1000	H11618	16’	18’	12”	6 ½”	36”	2040
1000	H11620	16’	20’	12”	6 ½”	48”	2624
1000	H11810*	18’	10’	8”	5 1/4”	36”*	1705
1000	H11812*	18’	12’	8”	5 1/4”	36”*	1778
1000	H11814	18’	14’	12”	6 ½”	36”	2029
1000	H11816	18’	16’	12”	6 ½”	36”	2089
1000	H11818	18’	18’	12”	6 ½”	48”	2689
1000	H11820	18’	20’	12”	6 ½”	48”	2749
1000	H12010*	20’	10’	8”	5 1/4”	36”*	1804
1000	H12012*	20’	12’	12”	6 ½”	36”	2078
1000	H12014	20’	14’	12”	6 ½”	36”	2138
1000	H12016	20’	16’	12”	6 ½”	36”	2198
1000	H12018	20’	18’	12”	6 ½”	48”	2814
1000	H12020	20’	20’	12”	6 ½”	48”	2874

Units with (*) require 3' deep x 4' square foundations. All others require 3’ deep x 5’ square concrete foundations with rebar.

Available Options (RFQ):

Tagline Festooning
Hoists & Trolleys
Anchor Bolt Kits
Bolt Pattern Plywood Template
Rotation Stops
Motorized Rotation
Collector Rings
Outdoor Applications
Custom size requirement

Installation Requirements:

3’ deep by 4’ square, 3’ deep by 5’ square, or 3’ deep by 6’ square cement foundation, depending on base plate.
3000 psi of compressive force-reinforced rebar 3/4” diameter on top and bottom, 12” on center.
