All Lift Heavy Duty Floor Mounted Jib Crane, 2 Ton

All Lift Heavy Duty Floor Mounted Jib Crane, 2 Ton

$5,241.00

Reviews (0)

SKU:: ALLC-H-Series-3

Estimated Lead Time: 2-3 weeks

Description
Reviews
Additional Info

Description

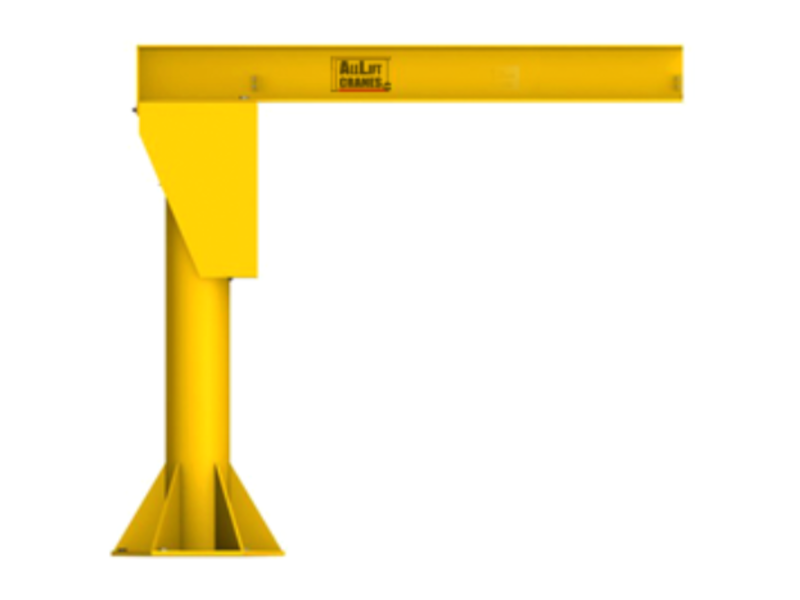

The All Lift Heavy Duty Floor Mounted Jib Crane (2 Ton) is built with a heavy wall structural steel pipe mast and oversized reinforced base plate, delivering minimal deflection and consistent alignment under load. The I-beam boom features a rolled steel construction with tapered flange, allowing smooth trolley travel across the full span. The boom rotates a full 360° and includes safety end stops on both ends to limit trolley travel. Designed for demanding shop environments, this freestanding jib crane is built to last with a 36" diameter base (or 48" or 54"), 32" bolt circle (or 44" or 50"), and 12 mounting holes at 1-1/4" diameter each.

All Lift H-Series Heavy Duty Floor Mounted Jib Crane, 2 Ton - 10', 12', 14', 16', 18', or 20' Height Under Beam

NOTE: Price listed is for smallest size model #H4108 (RFQ for pricing on others).

10' to 14" Height Under Beam (HUB)

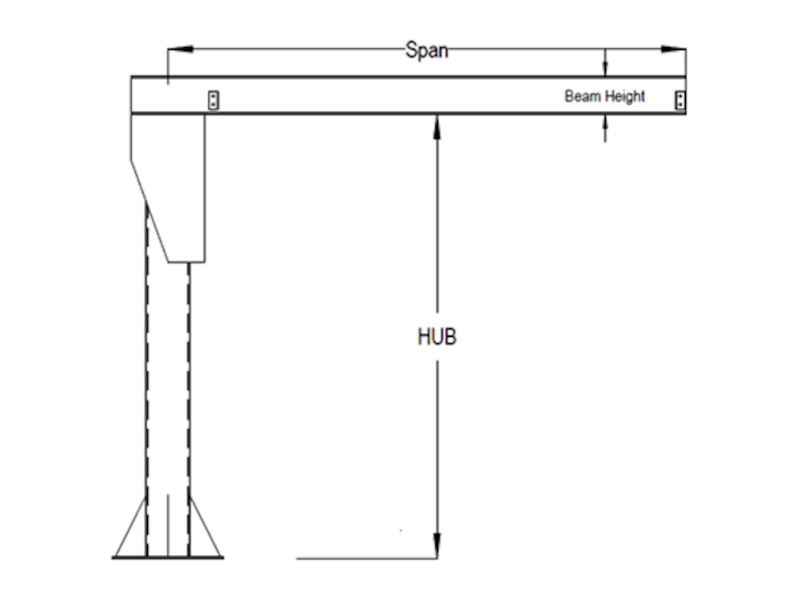

Capacity (Pounds)	Model	Hub	Span	Beam Height	Flange Width	Base Diameter	Weight lbs.
4000	H4108	10’	8’	12”	6 ½”	36”	1412
4000	H41010	10’	10’	12”	6 ½”	36”	1472
4000	H41012*	10’	12’	16”	7”	48”*	2153
4000	H41014*	10’	14’	16”	7”	48”*	2233
4000	H41016	10’	16’	21”	6 ½”	48”	2732
4000	H41018	10’	18’	24”	7”	48”	3383
4000	H41020	10’	20’	24”	7”	48”	3507
4000	H4128	12’	8’	12”	6 ½”	36”	1522
4000	H41210	12’	10’	12”	6 ½”	36”	1582
4000	H41212*	12’	12’	16”	7”	48”*	2278
4000	H41214*	12’	14’	16”	7”	48”*	2358
4000	H41216	12’	16’	21”	6 ½”	48”	2857
4000	H41218	12’	18’	24”	7”	48”	3525
4000	H41220	12’	20’	24”	7”	48”	3649
4000	H4148	14’	8’	12”	6 ½”	36”	1631
4000	H41410	14’	10’	12”	6 ½”	36”	1691
4000	H41412*	14’	12’	16”	7”	48”*	2403
4000	H41414*	14’	14’	16”	7”	48”*	2483
4000	H41416	14’	16’	21”	6 ½”	48”	3087
4000	H41418	14’	18’	24”	7”	48”	3666
4000	H41420	14’	20’	24”	7”	48”	4438

Units with 36” diameter base plates have 4' deep x 6' square foundations, (*) have 4’ deep x 7 square foundations and all others have 4’ deep by 8' square concrete foundations.

16' to 20" Height Under Beam (HUB)

Capacity (Pounds)	Model	Hub	Span	Beam Height	Flange Width	Base Diameter	Weight lbs.
4000	H41610	16’	10’	12”	6 ½”	36”	1800
4000	H41612*	16’	12’	16”	7”	48”*	2528
4000	H41614*	16’	14’	16”	7”	48”*	3183
4000	H41616	16’	16’	24”	7”	48”	3677
4000	H41618	16’	18’	24”	7”	48”	3801
4000	H41620	16’	20’	24”	7”	48”	4646
4000	H41810*	18’	10’	12”	6 ½”	48”*	2434
4000	H41812*	18’	12’	16”	7”	48”*	3296
4000	H41814*	18’	14’	16”	7”	48”*	3376
4000	H41816	18’	16’	24”	7”	48”	4607
4000	H41818	18’	18’	24”	7”	48”	4731
4000	H41820	18’	20’	24”	7”	54”	5654
4000	H42010*	20’	10’	12”	6 ½”	48”*	2559
4000	H42012*	20’	12’	16”	7”	48”*	3438
4000	H42014*	20’	14’	16”	7”	48”*	3518
4000	H42016	20’	16’	24”	7”	48”	4815
4000	H42018	20’	18’	24”	7”	48”	4939
4000	H42020	20’	20’	24”	7”	54”	5905

Units with 36” diameter base plates have 4' deep x 6' square foundations, (*) have 4’ deep x 7 square foundations and all others have 4’ deep by 8' square concrete foundations.

Units with 54” diameter base plates have 4’ deep by 9’ square concrete foundations.

Available Options (RFQ):

Tagline Festooning
Hoists & Trolleys
Anchor Bolt Kits
Bolt Pattern Plywood Template
Rotation Stops
Motorized Rotation
Collector Rings
Outdoor Applications
Custom size requirement

Installation Requirements:

4’ deep by 6’ square, 4’ deep by 7’ square, 4’ deep by 8' square, or 4’ deep by 9’ square cement foundation, depending on base plate.
3000 psi of compressive force-reinforced rebar 3/4” diameter on top and bottom, 12” on center.
