All Lift Heavy Duty Floor Mounted Jib Crane, 5 Ton

All Lift Heavy Duty Floor Mounted Jib Crane, 5 Ton

$14,224.00

Reviews (0)

SKU:: ALLC-H-Series-5

Estimated Lead Time: 2-3 weeks

Description
Reviews
Additional Info

Description

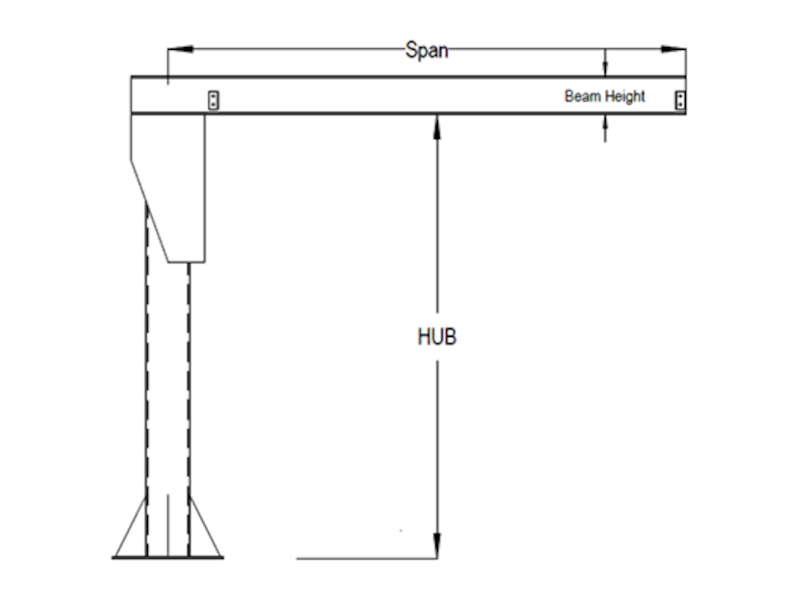

The All Lift Heavy Duty Floor Mounted Jib Crane (5 Ton) is built with a heavy wall structural steel pipe mast and oversized reinforced base plate, delivering minimal deflection and consistent alignment under load. The I-beam boom features a rolled steel construction with tapered flange, allowing smooth trolley travel across the full span. The boom rotates a full 360° and includes safety end stops on both ends to limit trolley travel. Designed for demanding shop environments, this freestanding jib crane is built to last with a 60" diameter base (or 66"or 72"), 56" bolt circle (pr 60" or 66"), and 12 mounting holes at 1-1/4" diameter each.

All Lift H-Series Heavy Duty Floor Mounted Jib Crane, 5 Ton - 10', 12', 14', 16', 18', or 20' Height Under Beam

NOTE: Price listed is for smallest size model #H10108 (RFQ for pricing on others).

10' to 14" Height Under Beam (HUB)

Capacity (Pounds)	Model	Hub	Span	Beam Height	Flange Width	Base Diameter	Weight lbs.
10000	H10108	10’	8’	21”	8 ¼”	60”	3905
10000	H101010	10’	10’	21”	8 ¼”	60”	4041
10000	H101012	10’	12’	21”	8 ¼”	66”	4791
10000	H101014	10’	14’	24”	9”	66”	5069
10000	H101016	10’	16’	24”	9”	66”	5221
10000	H101018	10’	18’	24”	9”	72”	6203
10000	H101020	10’	20’	24”	9”	72”	6962
10000	H10128	12’	8’	21”	8 ¼”	60”	4113
10000	H101210	12’	10’	21”	8 ¼”	60”	4249
10000	H101212	12’	12’	21”	8 ¼”	66”	5047
10000	H101214	12’	14’	24”	9”	66”	5320
10000	H101216	12’	16’	24”	9”	66”	5472
10000	H101218	12’	18’	24”	9”	72”	6518
10000	H101220	12’	20’	24”	9”	72”	7277
10000	H10148	14’	8’	21”	8 ¼”	60”	4313
10000	H101410	14’	10’	21”	8 ¼”	60”	4449
10000	H101412	14’	12’	21”	8 ¼”	66”	5757
10000	H101414	14’	14’	24”	9”	66”	6036
10000	H101416	14’	16’	24”	9”	66”	6188
10000	H101418	14’	18’	24”	9”	72”	6833
10000	H101420	14’	20’	24”	9”	72”	7593

Units with 60” & 66” diameter base plates have 4’ deep by 9’ square concrete foundations

Units with 72” diameter base plates have 4’ deep by 10’ square concrete foundations.

16' to 20" Height Under Beam (HUB)

Capacity (Pounds)	Model	Hub	Span	Beam Height	Flange Width	Base Diameter	Weight lbs.
10000	H101610	16’	10’	21”	8 ¼”	60”	5078
10000	H101612	16’	12’	21”	8 ¼”	66”	5987
10000	H101614	16’	14’	24”	9”	66”	6352
10000	H101616*	16’	16’	24”	9”	66”*	6504
10000	H101618	16’	18’	24”	9”	72”	7149
10000	H101620	16’	20’	24”	9”	72”	7908
10000	H101810	18’	10’	21”	8 ¼”	60”	5325
10000	H101812	18’	12’	21”	8 ¼”	66”	6394
10000	H101814	18’	14’	24”	9”	66”	6667
10000	H101816*	18’	16’	24”	9”	66”*	6819
10000	H101818	18’	18’	24”	9”	72”	7464
10000	H101820	18’	20’	24”	9”	72”	8223
10000	H102010	20’	10’	21”	8 ¼”	60”	5576
10000	H102012	20’	12’	21”	8 ¼”	66”	6710
10000	H102014	20’	14’	24”	9”	66”	6982
10000	H102016*	20’	16’	24”	9”	66”*	7134
10000	H102018	20’	18’	24”	9”	72”	7779
10000	H102020	20’	20’	24”	9”	72”	8539

Units with 60” & 66” diameter base plates that have an (*) have 4’ deep x 10’ square foundations. All others have 4’ deep by 9’ square concrete foundations.

Units with 72” diameter base plates have 4’ deep by 10’ square concrete foundations.

Available Options (RFQ):

Tagline Festooning
Hoists & Trolleys
Anchor Bolt Kits
Bolt Pattern Plywood Template
Rotation Stops
Motorized Rotation
Collector Rings
Outdoor Applications
Custom size requirement

Installation Requirements:

4’ deep by 7’ square, 4’ deep by 8' square, 4’ deep by 9' square, or 4’ deep by 10’ square cement foundation, depending on base plate.
3000 psi of compressive force-reinforced rebar 3/4” diameter on top and bottom, 12” on center.
