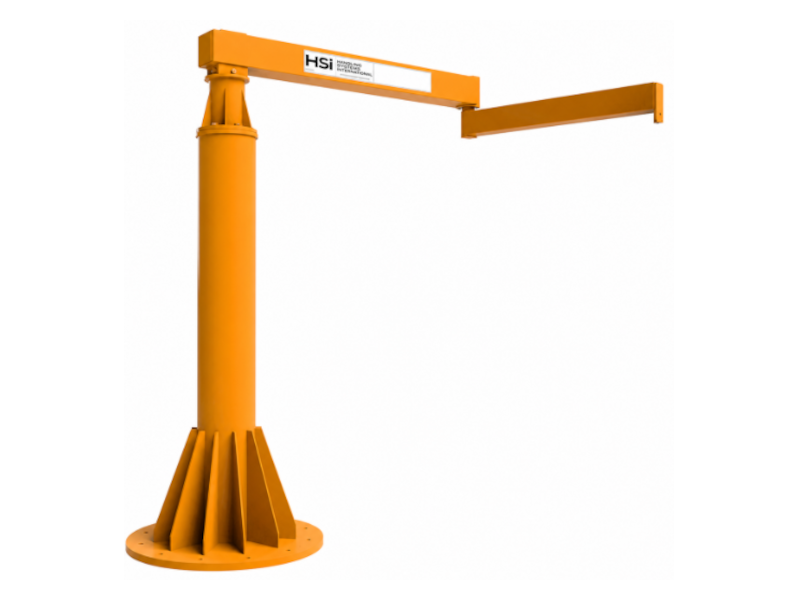

HSI Articulating Floor Mounted Jib Crane, 1/4 Ton

$11,703.42

Reviews (0)

SKU:: HANL-350AJ-2

Estimated Lead Time: 2-3 weeks

Description
Reviews
Additional Info

The Handling Systems International Freestanding Articulating Jib Crane is designed to position loads in hard to reach areas. The articulating boom makes it easy to maneuver around columns, corners, and through narrow passageways.

With true 360° articulation, the crane provides a large coverage area from the mast out to the tip of the outer arm. Compatible with hoists, manipulators, balancers, and vacuum lifters.

This self-supporting jib crane delivers a full 360° of rotation and mounts directly to the floor using HSI anchor bolts with either a recommended foundation or existing concrete, depending on crane specifications.

HSI Model 350AJ Freestanding Articulating Jib Crane, 1/4 Ton - 8' to 16' Span

NOTE: Price listed is for smallest size model #350FAJ-500-8-8 (RFQ for pricing on others).

*Not seeing what you're looking for? Please RFQ, many sizes available not listed.*

Model Number	CAPACITY LBS.	OVERALL SPAN	INNER ARM LENGTH	OUTER ARM LENGTH	HEIGHT UNDER BEAM	OUTER ARM HEIGHT	OVERALL HEIGHT	Approx. Weight
350FAJ-500-8-8	500	8	4’ 6”	3’ 6”	8’ 3”	8’ 9”	9’ 10-11/16”	815 lbs.
350FAJ-500-10-8	500	10	5’ 6”	4’ 6”	8’ 3”	8’ 9”	9’ 10-11/16”	853 lbs.
350FAJ-500-12-8	500	12	6’ 6”	5’ 6”	8’ 3”	8’ 9”	9’ 10-11/16”	891lbs.
350FAJ-500-14-8	500	14	7’ 6”	6’ 6”	8’ 3”	8’ 9”	9’ 10-11/16”	929 lbs.
350FAJ-500-16-8	500	16	8’ 8”	7’ 6”	8’ 3”	8’ 9”	9’ 10-11/16”	967 lbs.
350FAJ-500-8-10	500	8	4’ 6”	3’ 6”	10’ 3”	10’ 9”	11’ 10-11/16”	802 lbs.
350FAJ-500-10-10	500	10	5’ 6”	4’ 6”	10’ 3”	10’ 9”	11’ 10-11/16”	920 lbs.
350FAJ-500-12-10	500	12	6’ 6”	5’ 6”	10’ 3”	10’ 9”	11’ 10-11/16”	958 lbs.
350FAJ-500-14-10	500	14	7’ 6”	6’ 6”	10’ 3”	10’ 9”	11’ 10-11/16”	996 lbs.
350FAJ-500-16-10	500	16	8’ 8”	7’ 6”	10’ 3”	10’ 9”	11’ 10-11/16”	1,034 lbs.
350FAJ-500-8-12	500	8	4’ 6”	3’ 6”	12’ 3”	12’ 9”	13’ 10-11/16”	949 lbs.
350FAJ-500-10-12	500	10	5’ 6”	4’ 6”	12’ 3”	12’ 9”	13’ 10-11/16”	985 lbs.
350FAJ-500-12-12	500	12	6’ 6”	5’ 6”	12’ 3”	12’ 9”	13’ 10-11/16”	1,021 lbs.
350FAJ-500-14-12	500	14	7’ 6”	6’ 6”	12’ 3”	12’ 9”	13’ 10-11/16”	1,057 lbs.
350FAJ-500-16-12	500	16	8’ 8”	7’ 6”	12’ 3”	12’ 9”	13’ 10-11/16”	1,093 lbs.
350FAJ-500-8-14	500	8	4’ 6”	3’ 6”	14’ 3”	14’ 9”	15’ 10-11/16”	1,016 lbs.
350FAJ-500-10-14	500	10	5’ 6”	4’ 6”	14’ 3”	14’ 9”	15’ 10-11/16”	1,054 lbs.
350FAJ-500-12-14	500	12	6’ 6”	5’ 6”	14’’ 3”	14’ 9”	15’ 10-11/16”	1,092 lbs.
350FAJ-500-14-14	500	14	7’ 6”	6’ 6”	14’ 3”	14’ 9”	15’ 10-11/16”	1,130 lbs.
350FAJ-500-16-14	500	16	8’ 8”	7’ 6”	14’ 3”	14’ 9”	15’ 10-11/16”	1,168 lbs.
