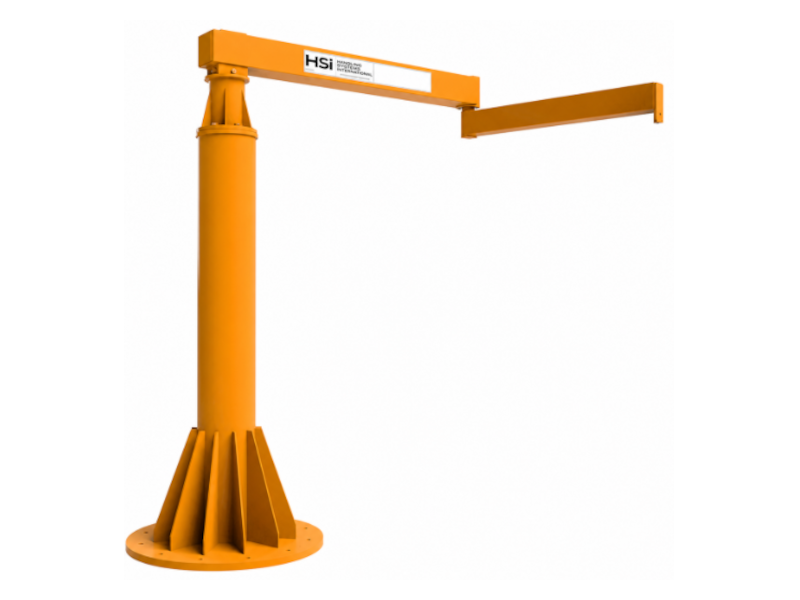

HSI Articulating Floor Mounted Jib Crane, 1/2 Ton
$18,836.28
- SKU:
- HANL-350AJ-3
Estimated Lead Time: 2-3 weeks
Description
Reviews
Additional Info
Description
The Handling Systems International Freestanding Articulating Jib Crane is designed to position loads in hard to reach areas. The articulating boom makes it easy to maneuver around columns, corners, and through narrow passageways.
With true 360° articulation, the crane provides a large coverage area from the mast out to the tip of the outer arm. Compatible with hoists, manipulators, balancers, and vacuum lifters.
This self-supporting jib crane delivers a full 360° of rotation and mounts directly to the floor using HSI anchor bolts with either a recommended foundation or existing concrete, depending on crane specifications.
HSI Model 350AJ Freestanding Articulating Jib Crane, 1/2 Ton - 8' to 16' Span
NOTE: Price listed is for smallest size model #350FAJ-1000-8-8 (RFQ for pricing on others).
*Not seeing what you're looking for? Please RFQ, many sizes available not listed.*
| Model Number | CAPACITY LBS. | OVERALL SPAN | INNER ARM LENGTH | OUTER ARM LENGTH | HEIGHT UNDER BEAM | OUTER ARM HEIGHT | OVERALL HEIGHT | Approx. Weight |
| 350FAJ-1000-8-8 | 1000 | 8 | 4’ 6” | 3’ 6” | 8’ 3” | 8’ 9” | 9’ 11-11/16” | 815 lbs. |
| 350FAJ-1000-10-8 | 1000 | 10 | 5’ 6” | 4’ 6” | 8’ 3” | 8’ 9” | 9’ 11-11/16” | 853 lbs. |
| 350FAJ-1000-12-8 | 1000 | 12 | 6’ 6” | 5’ 6” | 8’ 3” | 8’ 9” | 9’ 11-11/16” | 954 lbs. |
| 350FAJ-1000-14-8 | 1000 | 14 | 7’ 6” | 6’ 6” | 8’ 3” | 8’ 10” | 9’ 11-11/16” | 1,395 lbs. |
| 350FAJ-1000-16-8 | 1000 | 16 | 8’ 8” | 7’ 6” | 8’ 3” | 8’ 10” | 9’ 11-11/16” | 1,437 lbs. |
| 350FAJ-1000-8-10 | 1000 | 8 | 4’ 6” | 3’ 6” | 10’ 3” | 10’ 9” | 11’ 11-11/16” | 882 lbs. |
| 350FAJ-1000-10-10 | 1000 | 10 | 5’ 6” | 4’ 6” | 10’ 3” | 10’ 9” | 11’ 11-11/16” | 920 lbs. |
| 350FAJ-1000-12-10 | 1000 | 12 | 6’ 6” | 5’ 6” | 10’ 3” | 10’ 9” | 11’ 11-11/16” | 1,279 lbs. |
| 350FAJ-1000-14-10 | 1000 | 14 | 7’ 6” | 6’ 6” | 10’ 3” | 10’ 10” | 11’ 11-11/16” | 1,520 lbs. |
| 350FAJ-1000-16-10 | 1000 | 16 | 8’ 8” | 7’ 6” | 10’ 3” | 10’ 10” | 11’ 11-11/16” | 1,562 lbs. |
| 350FAJ-1000-8-12 | 1000 | 8 | 4’ 6” | 3’ 6” | 12’ 3” | 12’ 9” | 13’ 11-11/16” | 949 lbs. |
| 350FAJ-1000-10-12 | 1000 | 10 | 5’ 6” | 4’ 6” | 12’ 3” | 12’ 9” | 13’ 11-11/16” | 987 lbs. |
| 350FAJ-1000-12-12 | 1000 | 12 | 6’ 6” | 5’ 6” | 12’ 3” | 12’ 9” | 13’ 11-11/16” | 1,388 lbs. |
| 350FAJ-1000-14-12 | 1000 | 14 | 7’ 6” | 6’ 6” | 12’ 3” | 12’ 10” | 13’ 11-11/16” | 1,888 lbs. |
| 350FAJ-1000-16-12 | 1000 | 16 | 8’ 8” | 7’ 6” | 12’ 3” | 12’ 10” | 13’ 11-11/16” | 1,952 lbs. |
| 350FAJ-1000-8-14 | 1000 | 8 | 4’ 6” | 3’ 6” | 14’ 3” | 14’ 9’ | 15’ 11-11/16” | 1,016 lbs. |
| 350FAJ-1000-10-14 | 1000 | 10 | 5’ 6” | 4’ 6” | 14’ 3” | 14’ 9” | 15’ 11-11/16” | 1,460 lbs. |
| 350FAJ-1000-12-14 | 1000 | 12 | 6’ 6” | 5’ 6” | 14’’ 3” | 14’ 9” | 15’ 11-11/16” | 1,694 lbs. |
| 350FAJ-1000-14-14 | 1000 | 14 | 7’ 6” | 6’ 6” | 14’ 3” | 14’ 10” | 15’ 11-11/16” | 2,053 lbs. |
| 350FAJ-1000-16-14 | 1000 | 16 | 8’ 8” | 7’ 6” | 14’ 3” | 14’ 10” | 15’ 11-11/16” | 2,095 lbs. |
Available Options (RFQ):
- Tagline Festooning
- Hoists & Trolleys
- Rotation Stops
- Template & Anchor Bolts
- Outdoor application
- Foundationless mounting models
- Electric & air collectors
Reviews (0)
Be the first to review this product.
Additional Info
- SKU:
- HANL-350AJ-3
- Availability:
- Estimated Lead Time: 2-3 weeks
- Shipping:
- Calculated at Checkout
- Mounting:
- Floor
- Standard Capacities:
- Up to 1,000 lbs.
- Spans:
- Up to 16 ft.
- Power Option:
- No
- Heights:
- Up to 14 ft. (Under Beam)
