All Lift Light Duty Foundationless Floor Mounted Jib Crane, 1/4 Ton

All Lift Light Duty Foundationless Jib Crane, 1/4 Ton

$2,202.00

Reviews (0)

SKU:: ALLC-FL-Series-2

Estimated Lead Time: 2-3 weeks

Description
Reviews
Additional Info

Description

The All Lift Foundationless Floor Mounted Jib Crane (1/4 Ton) requires no pre-poured foundation and can be bolted directly to almost any existing concrete surface using straight anchor bolts and epoxy. This makes it ideal for open areas where a single crane needs to serve multiple workstations. The boom is a rolled steel I-beam with tapered flange for smooth trolley travel, rotating a full 360° for maximum reach. Removable safety end stops are included on both ends to limit trolley travel. Durable and built for long service life, the FL-500 Series features a 28" diameter base, 24" bolt circle, and 8 mounting holes at 1-1/4" diameter each.

All Lift FL-Series Light Duty Foundationless Floor Mounted Jib Crane, 1/4 Ton - 8', 10', or 12' Height Under Beam

NOTE: Price listed is for smallest size model #FL586 (RFQ for pricing on others).

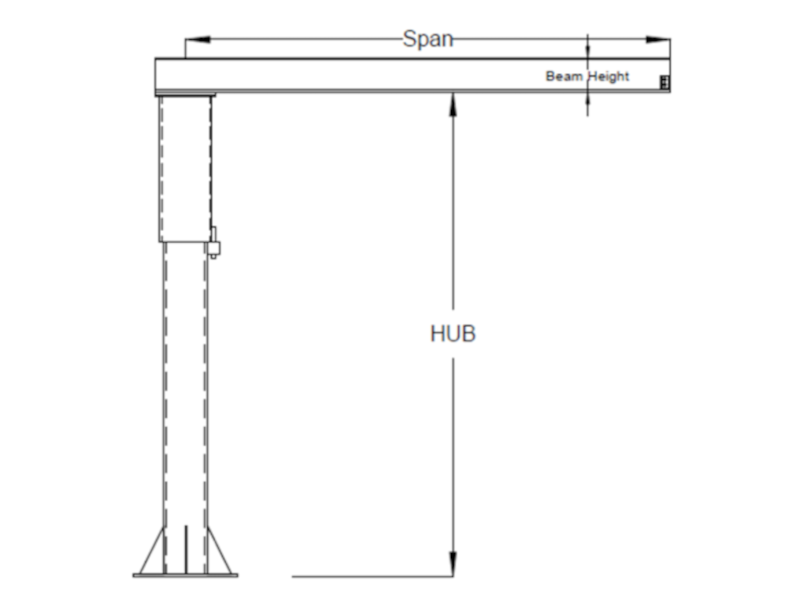

Capacity (Pounds)	Model	Hub	Span	Beam Height	Flange Width	Base Diameter	Unit Weight
500	FL586	8’	6’	6”	4”	28”	490#
500	FL588	8’	8’	6”	4”	28”	522#
500	FL5810	8’	10’	6”	4”	28”	554#
500	FL5812	8’	12’	6”	4”	28”	681#
500	FL5814	8’	14’	8”	5-1/4”	28”	912#
500	FL5106	10’	6’	6”	4”	28”	528#
500	FL5108	10’	8’	6”	4”	28”	560#
500	FL51010	10’	10’	6”	4”	28”	592#
500	FL51012	10’	12’	6”	4”	28”	725#
500	FL51014	10’	14’	8”	5-1/4”	28”	968#
500	FL5126	12’	6’	6”	4”	28”	566#
500	FL5128	12’	8’	6”	4”	28”	598#
500	FL51210	12’	10’	6”	4”	28”	630#
500	FL51212	12’	12’	6”	4”	28”	770#
500	FL51214	12’	14’	8”	5-1/4”	28”	1,036#

Available Options (RFQ):

Tagline Festooning
Hoists & Trolleys
Epoxy Anchor Bolt Kits
Bolt Pattern Plywood Template
Rotation Stops
Collector Rings
Outdoor Applications

Installation Requirements:

Existing concrete must be a minimum of 6” thick reinforced with a minimum 3,000 psi (5 bag mix), soil pressure must support 2,500 psi.
Concrete in and around the area (6’ x 6’) of the base plate must be free of cracks and must appear in good condition.
All units have 28” diameter base and 24” bolt circle 8 holes 1-1/4” diameter.
