All Lift Light Duty Foundationless Floor Mounted Jib Crane, 1/2 Ton

All Lift Light Duty Foundationless Jib Crane, 1/2 Ton

$2,824.00

Reviews (0)

SKU:: ALLC-FL-Series-3

Estimated Lead Time: 2-3 weeks

Description
Reviews
Additional Info

Description

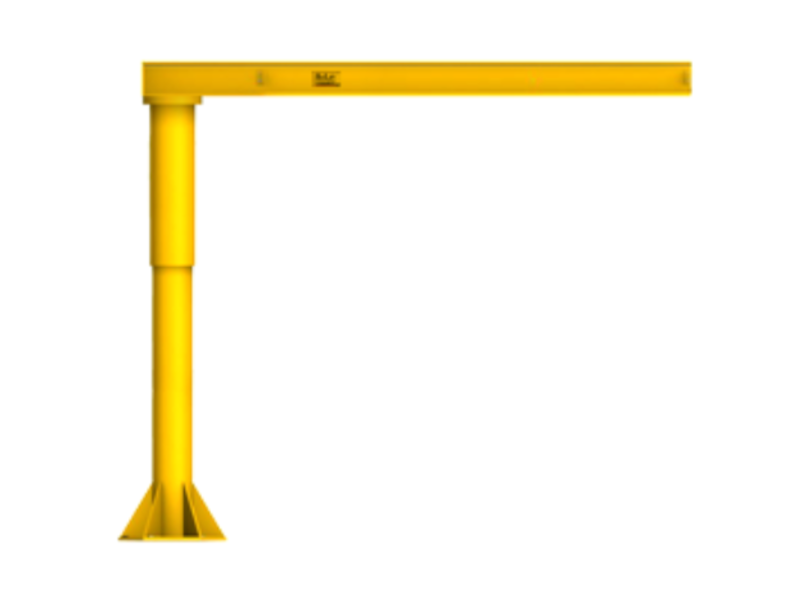

The All Lift Foundationless Floor Mounted Jib Crane (1/2 Ton) requires no pre-poured foundation and can be bolted directly to almost any existing concrete surface using straight anchor bolts and epoxy. This makes it ideal for open areas where a single crane needs to serve multiple workstations. The boom is a rolled steel I-beam with tapered flange for smooth trolley travel, rotating a full 360° for maximum reach. Removable safety end stops are included on both ends to limit trolley travel. Durable and built for long service life, the FL-1000 Series features a 30" diameter base (or 36"), 26" bolt circle (or 32"), and 12 mounting holes at 1-1/4" diameter each.

All Lift FL-Series Light Duty Foundationless Floor Mounted Jib Crane, 1/2 Ton - 8', 10', or 12' Height Under Beam

NOTE: Price listed is for smallest size model #FL186 (RFQ for pricing on others).

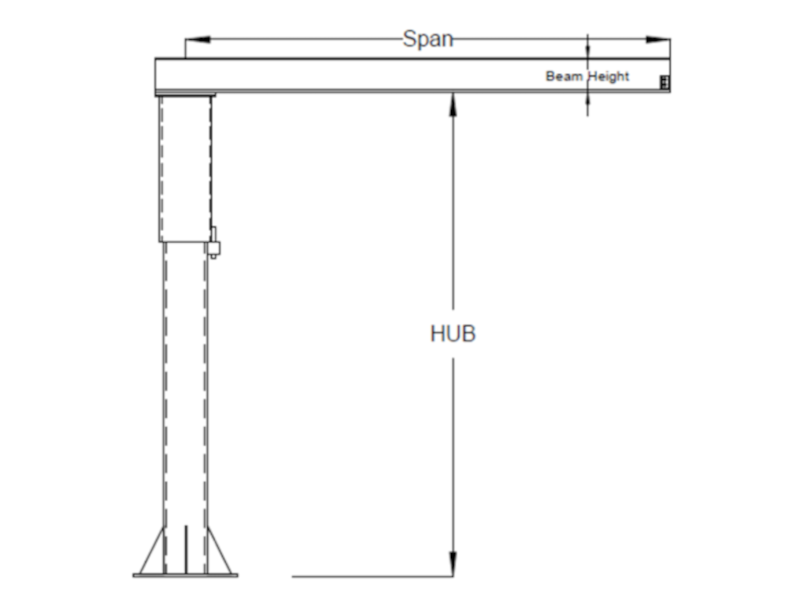

Capacity (Pounds)	Model	Hub	Span	Beam Height	Flange Width	Base Diameter	Unit Weight
1000	FL186	8’	6’	6”	4"	30"	598#
1000	FL188	8’	8’	6”	4"	30"	630#
1000	FL1810	8’	10’	8"	5-1/4”	30"	827#
1000	FL1812	8’	12’	8"	5-1/4”	30"	911#
1000	FL1814	8’	14’	8"	5-1/4”	36”	1,019#
1000	FL1106	10’	6’	6”	4"	30"	642#
1000	FL1108	10’	8’	6”	4"	30"	674#
1000	FL11010	10’	10’	8"	5-1/4”	30"	884#
1000	FL11012	10’	12’	8"	5-1/4”	30"	968#
1000	FL11014	10’	14’	8"	5-1/4”	36”	1,075#
1000	FL1126	12’	6’	6”	4"	30"	687#
1000	FL1128	12’	8’	6”	4"	30"	719#
1000	FL11210	12’	10’	8"	5-1/4”	30"	940#
1000	FL11212	12’	12’	8"	5-1/4”	30"	1,024#
1000	FL11214	12’	14’	8"	5-1/4”	36”	1,131#

Available Options (RFQ):

Tagline Festooning
Hoists & Trolleys
Epoxy Anchor Bolt Kits
Bolt Pattern Plywood Template
Rotation Stops
Collector Rings
Outdoor Applications

Installation Requirements:

Existing concrete must be a minimum of 6” thick reinforced with a minimum 3,000 psi (5 bag mix), soil pressure must support 2,500 psi.
Concrete in and around the area (6’ x 6’) of the base plate must be free of cracks and must appear in good condition.
Units with 30” diameter base have 26” bolt circle 12 holes 1-1/4” diameter.
Units with 36” diameter base have 32” bolt circle 12 holes 1-1/4” diameter.
