All Lift Heavy Duty Foundationless Jib Crane, 1/2 Ton

All Lift Heavy Duty Foundationless Jib Crane, 1/2 Ton

$4,894.00

Reviews (0)

SKU:: ALLC-FH-Series-1

Estimated Lead Time: 2-3 weeks

Description
Reviews
Additional Info

Description

The 1/2 Ton All Lift Heavy Duty Foundationless Floor Mounted Jib Crane (also available in 1 Ton) is the largest capacity jib crane available that does not require a pre-poured concrete foundation. It can be lagged directly to any existing concrete surface, making it ideal for open areas serving multiple workstations without the cost and downtime of pouring a new foundation. The boom is a rolled steel I-beam with tapered flange for smooth trolley travel, rotating a full 360° for complete coverage around the mast. Removable safety end stops on both ends of the boom limit trolley travel. Built for heavy duty use and long service life, the FH Series features a 48" diameter base, 44" bolt circle, and 12 mounting holes at 1-1/4" diameter each.

All Lift FH-Series Heavy Duty Foundationless Floor Mounted Jib Crane, 1/2 Ton - 10', 12', 14', or 16' Height Under Beam

NOTE: Price listed is for smallest size model #FH1108 (RFQ for pricing on others).

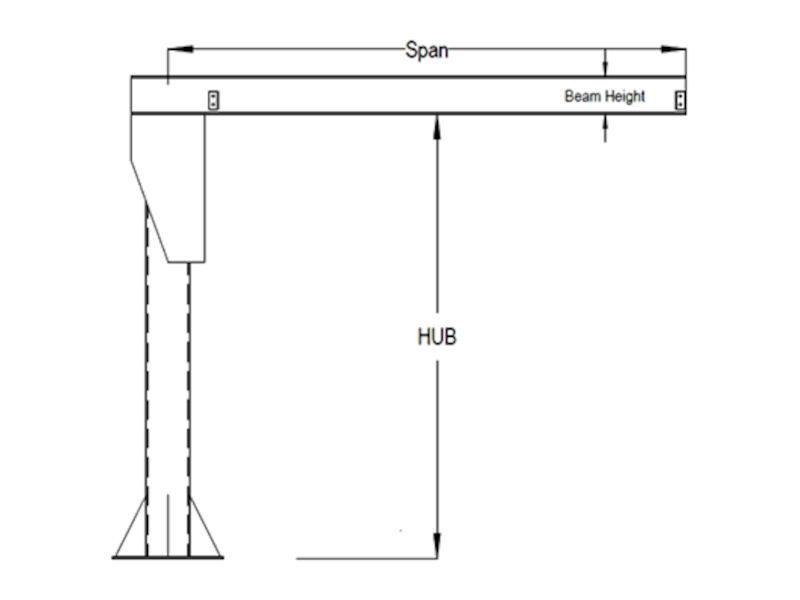

Capacity (Pounds)	Model	Hub	Span	Beam Height	Flange Width	Base Diameter	Unit Weight
1000	FH1108	10’	8’	8”	5 1/4”	48”	1,083#
1000	FH11010	10’	10’	8”	5 1/4”	48”	1,125#
1000	FH11012	10’	12’	8”	5 1/4”	48”	1,167#
1000	FH11014	10’	14’	8”	5 1/4”	48”	1,272#
1000	FH11016	10’	16’	12”	6 ½”	48”	1,759#
1000	FH11018	10’	18’	12”	6 ½”	48”	1,819#
1000	FH11020	10’	20’	12”	6 ½”	48”	2,114#
1000	FH1128	12’	8’	8”	5 1/4”	48”	1,139#
1000	FH11210	12’	10’	8”	5 1/4”	48”	1,181#
1000	FH11212	12’	12’	8”	5 1/4”	48”	1,223#
1000	FH11214	12’	14’	8”	5 1/4”	48”	1,328#
1000	FH11216	12’	16’	12”	6 ½”	48”	1,858#
1000	FH11218	12’	18’	12”	6 ½”	48”	1,918#
1000	FH11220	12’	20’	12”	6 ½”	48”	2,223#
1000	FH1148	14’	8’	8”	5 1/4”	48”	1,195#
1000	FH11410	14’	10’	8”	5 1/4”	48”	1,237#
1000	FH11412	14’	12’	8”	5 1/4”	48”	1,279#
1000	FH11414	14’	14’	8”	5 1/4”	48”	1,701#
1000	FH11416	14’	16’	12”	6 ½”	48”	1,957#
1000	FH11418	14’	18’	12”	6 ½”	48”	2,017#
1000	FH11420	14’	20’	12”	6 ½”	48”	2,332#
1000	FH11610	16’	10’	8”	5 1/4”	48”	1,788#
1000	FH11612	16’	12’	8”	5 1/4”	48”	1,830#
1000	FH11614	16’	14’	8”	5 1/4”	48”	1,872#
1000	FH11616	16’	16’	12”	6 ½”	54”	2,308#
1000	FH11618	16’	18’	12”	6 ½”	54”	2,368#
1000	FH11620	16’	20’	12”	6 ½”	54”	2,818#

Available Options (RFQ):

Tagline Festooning
Hoists & Trolleys
Epoxy Anchor Bolt Kits
Bolt Pattern Plywood Template
Rotation Stops
Collector Rings
Outdoor Applications
Motorization

Installation Requirements:

Existing concrete must be a minimum of 6” thick reinforced with a minimum 3,000 psi (5 bag mix), soil pressure must support 2,500 psi.
Concrete in and around the area (10’ x 10) of the base plate must be free of cracks and must appear in good condition.
All units have 48” diameter base and 44” bolt circle with 12 holes 1-1/4” diameter for 1” anchor bolts.
15' or less Span uses 10' x 10" foundation.
16' to 20" Span uses 11' x 11' foundation.
