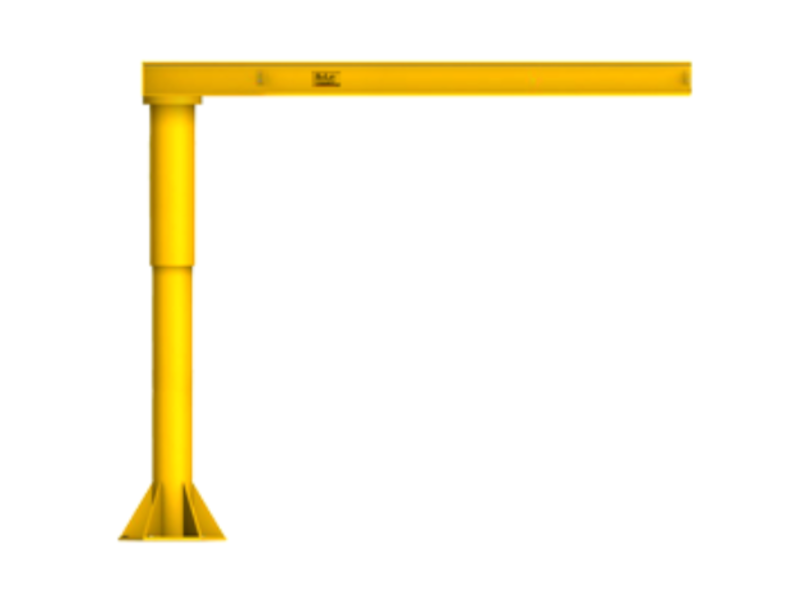

All Lift Light Duty Foundationless Floor Mounted Jib Crane, 1/8 Ton All Lift Light Duty Foundationless Jib Crane, 1/8 Ton

All Lift Light Duty Foundationless Jib Crane, 1/8 Ton

$2,140.00
Reviews (0)
SKU:
ALLC-FL-Series-1

Estimated Lead Time: 2-3 weeks

Price and SKU will update based on options selected.
Current stock: 0

Cart Subtotal: $0.00

View cart Checkout
Description

Description

The All Lift Foundationless Floor Mounted Jib Crane (1/8 Ton) requires no pre-poured foundation and can be bolted directly to almost any existing concrete surface using straight anchor bolts and epoxy. This makes it ideal for open areas where a single crane needs to serve multiple workstations. The boom is a rolled steel I-beam with tapered flange for smooth trolley travel, rotating a full 360° for maximum reach. Removable safety end stops are included on both ends to limit trolley travel. Durable and built for long service life, the FL-250 Series features a 26" diameter base, 22" bolt circle, and 6 mounting holes at 1-1/4" diameter each.

All Lift FL-Series Light Duty Foundationless Floor Mounted Jib Crane, 1/8 Ton - 8', 10', or 12' Height Under Beam

NOTE: Price listed is for smallest size model #FL2586 (RFQ for pricing on others).

Capacity (Pounds) Model Hub Span Beam Height Flange Width Base Diameter Unit Weight
250 FL2586 8’ 6’ 6” 4” 26” 478#
250 FL2588 8’ 8’ 6” 4” 26” 510#
250 FL25810 8’ 10’ 6” 4” 26” 542#
250 FL25812 8’ 12’ 6” 4” 26” 574#
250 FL25814 8’ 14’ 8” 5-1/4” 26” 776#
250 FL25106 10’ 6’ 6” 4” 26” 516#
250 FL25108 10’ 8’ 6” 4” 26” 548#
250 FL251010 10’ 10’ 6” 4” 26” 580#
250 FL251012 10’ 12’ 6” 4” 26” 612#
250 FL251014 10’ 14’ 8” 5-1/4” 26” 820#
250 FL25126 12’ 6’ 6” 4” 26” 554#
250 FL25128 12’ 8’ 6” 4” 26” 586#
250 FL251210 12’ 10’ 6” 4” 26” 618#
250 FL251212 12’ 12’ 6” 4” 26” 650#
250 FL251214 12’ 14’ 8” 5-1/4” 26” 865#

Available Options (RFQ):

  • Tagline Festooning
  • Hoists & Trolleys
  • Epoxy Anchor Bolt Kits
  • Bolt Pattern Plywood Template
  • Rotation Stops
  • Collector Rings
  • Outdoor Applications

Installation Requirements:

  • Existing concrete must be a minimum of 6” thick reinforced with a minimum 3,000 psi (5 bag mix), soil pressure must support 2,500 psi.
  • Concrete in and around the area (6’ x 6’) of the base plate must be free of cracks and must appear in good condition.
  • All units have 26” diameter base and 22” bolt circle 6 holes 1-1/4” diameter.
Reviews

Reviews (0)

Be the first to review this product.

Write a Review


Additional Info

Additional Info

SKU:
ALLC-FL-Series-1
Availability:
Estimated Lead Time: 2-3 weeks
Shipping:
Calculated at Checkout
Mounting:
Foundationless Floor
Standard Capacities:
Up to 250 lbs.
Spans:
Up to 14 ft.
Heights:
Up to 12 ft. (Under Beam)
Power Option:
No
