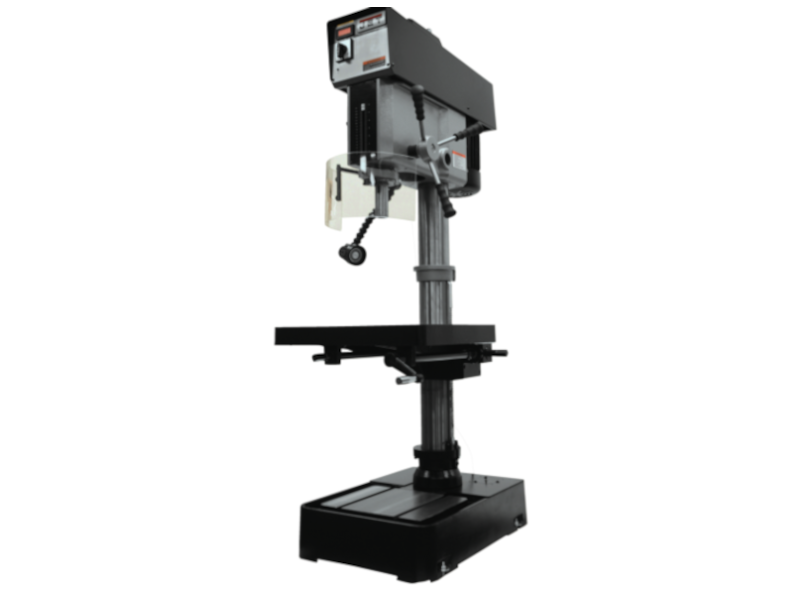

Jet JDP-20VS-1, 20" Variable Speed Drill Press, 2HP, 115V/230V/1PH, JT9-354230
$6,115.00
- SKU:
- JETJT9-354230
Description
Reviews
Additional Info
Description
Solid design and construction deliver precision operation and control.
JET 20” Variable Speed Drill Presses combine variable speed spindles with a massively constructed head that increases accuracy and rigidity.
That’s all on top of a steel column and a heavy-duty cast iron base.
- CSA/CUS Certified
- Front Mounted LED Spindle RPM Readout
- Front mounted positive control depth stop
- Head is massively constructed for more accuracy and rigidity and heavy duty cast iron design
- Massive 3" quill diameter
- Large Hand Grips designed with the users comfort in mind
- Large precision ground T-Slot production table for easy set ups
- Drill Chuck is not included
- Table rotates 360° around the column
- Variable spindle speeds
| Stock Number | JT9-354230 |
|---|---|
| Assembled Machine Dimensions (L x W x H) (In.) | 42-1/2 x 27 x 78-3/4 |
| Base Dimensions (In.) | 27 x 19 |
| Base Slots Number & Size (In.) | 3 & 5/8 |
| Column Diameter (In.) | 4-1/2 |
| Distance Column to Spindle (In.) | 10-7/16 |
| Drilling Capacity Cast Iron (In.) | 1-1/4 |
| Drilling Capacity Mild Steel (In.) | 1 |
| Drills to Center of Circle (In.) | 20 |
| Model Number | JDP-20VS-1 |
| Motor (HP) | 2HP, 115/ 230V, 1ph ,4P |
| Motor Phase | Single |
| Motor Power (HP) | 2 |
| Motor Voltage (V.) | 115/230 |
| Number of Spindle Speeds | Variable |
| Overall Dimensions (L x W x H) (In.) | 38.18 x27.16 x79.52 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Spindle Speeds (RPM) | 300 - 2,000 |
| Spindle Distance to Base (In.) | 44-1/2 |
| Spindle Distance to Table (Max.) (In.) | 30-1/4 |
| Spindle Speed Range (RPM) | 300 - 2000 |
| Spindle Speed (RPM) | 300 - 2000 |
| Spindle Taper | MT3 |
| Spindle Taper (In. x TPI) | MT-3 |
| Spindle Travel (In.) | 6 |
| Style (Type) | Variable Speed |
| Swing (In.) | 20 |
| T-Slot Centers (In.) | 7-7/16 |
| T-Slots Number and Size (In.) | 3 and 5/8 |
| Table Size (L x W) (In.) | 22x18-3/4 |
| Table Travel (In.) | 20 |
| Warranty | 2 Year |
| Work Table Weight Capacity (Lbs.) | 154 |
| Gross Weight | 780.0 |
| Net weight | 780.0 |
