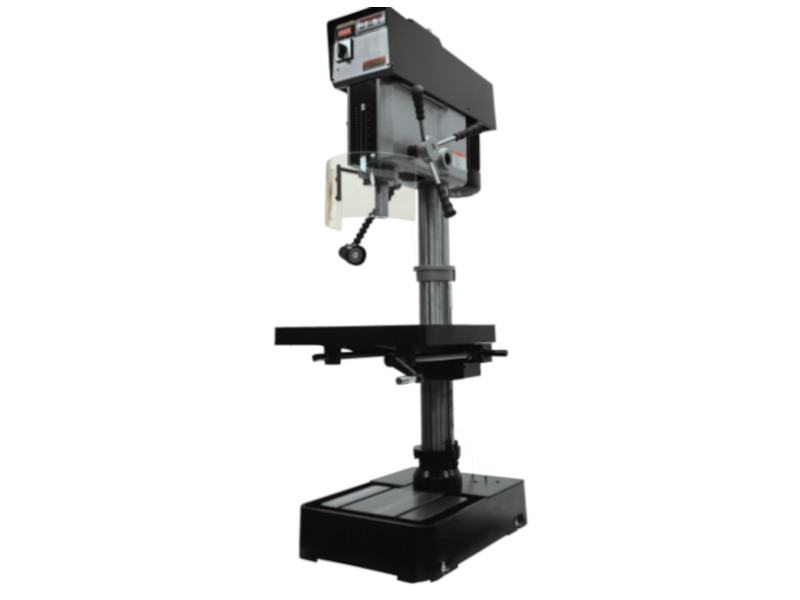

Jet JDP-20VS-3, 20" Variable Speed Drill Press, 2HP, 460V/3PH, JT9-354231-4

$6,511.00

Reviews (0)

Solid design and construction deliver precision operation and control.

JET 20” Variable Speed Drill Presses combine variable speed spindles with a massively constructed head that increases accuracy and rigidity.

That’s all on top of a steel column and a heavy-duty cast iron base.

CSA/CUS Certified
Front Mounted LED Spindle RPM Readout
Front mounted positive control depth stop
Head is massively constructed for more accuracy and rigidity and heavy duty cast iron design
Massive 3" quill diameter
Large Hand Grips designed with the users comfort in mind
Large precision ground T-Slot production table for easy set ups
Drill Chuck is not included
Table rotates 360° around the column
Variable spindle speeds

Stock Number	JT9-354231-4
Base Dimensions (In.)	27 x 19
Column Diameter (In.)	4-1/2
Drilling Capacity Cast Iron (In.)	1-1/2
Drilling Capacity Mild Steel (In.)	1-3/8
Drills to Center of Circle (In.)	20
Model Number	JDP-20VS-3
Motor (HP)	2HP, 460V,3ph
Overall Dimensions (L x W x H) (In.)	38.18 x27.16 x79.52
Prop 65	Cancer and Reproductive Harm
Range of Spindle Speeds (RPM)	300 - 2,000
Spindle Distance to Base (In.)	44-1/2
Spindle Distance to Table (Max.) (In.)	30-1/4
Spindle Taper (In. x TPI)	MT-3
Spindle Travel (In.)	6
Style (Type)	Variable Speed
T-Slot Centers (In.)	7-7/16
Table Size (L x W) (In.)	22x18-3/4
Table Travel (In.)	20
Warranty	2 Year
Work Table Weight Capacity (Lbs.)	154
Gross Weight	780.0
Net weight	780.0
