All Lift Wall-Mounted Jib Crane, 1/4 Ton

All Lift Wall-Mounted Jib Crane, 1/4 Ton

$1,638.00

Reviews (0)

SKU:: ALLC-CW-Series-1

Estimated Lead Time: 2-3 weeks

Description
Reviews
Additional Info

Description

The All Lift Cantilevered Wall Mounted Jib Crane provides hoist coverage with up to 200° of rotation. Because it mounts directly to a wall or vertical building column, it can be installed very close to the underside of the lowest ceiling obstruction, maximizing available lift height for the hoist. The design consists of a vertical mast secured to two brackets on a wall or structural beam, with a boom that extends outward perpendicular from the mounting surface.

Well suited for individual use in bays, along walls, or between building columns. Also works as a supplement to an existing overhead crane or monorail system where additional point-of-use lifting is needed.

All Lift CW-Series Cantilevered Wall Mounted Jib Crane, 1/4 Ton - 8' to 20' Span

NOTE: Price listed is for smallest size model #CW508 (RFQ for pricing on others).

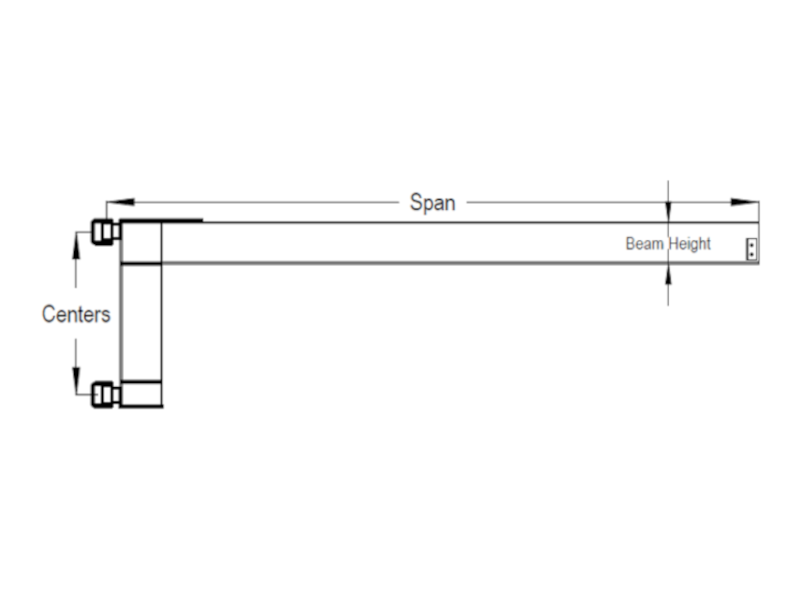

Capacity (Pounds)	Model	Span	Bracket Centers	Beam Height	Flange Width	Thrust & Pull	Weight lbs.
500	CW508	8’	3’ – 0”	6”	4”	2,185#	308
500	CW510	10’	3’ – 0”	6”	4”	2,720#	340
500	CW512	12’	4’ – 0”	6”	4”	2,560#	415
500	CW514	14’	4’ – 0”	8”	5-1/4”	2,975#	512
500	CW516	16’	4’ – 0”	8”	5-1/4”	3,526#	554
500	CW518	18’	4’ – 0”	8”	5-1/4”	4,150#	596
500	CW520	20’	4’ – 0”	12”	6 ½”	4,980#	885

*Bolt together design - All other models are WELDED.

Available Options (RFQ):

Tagline Festooning
Hoists & Trolleys
Rotation Stops

Installation Requirements:

Mounting bolts not included – use grade 5 or be er provided by the installer.
Allow for 3” clearance above and along entire length of boom.
Must have a structurally sound wall, column, or base for supporting the Jib Crane.
