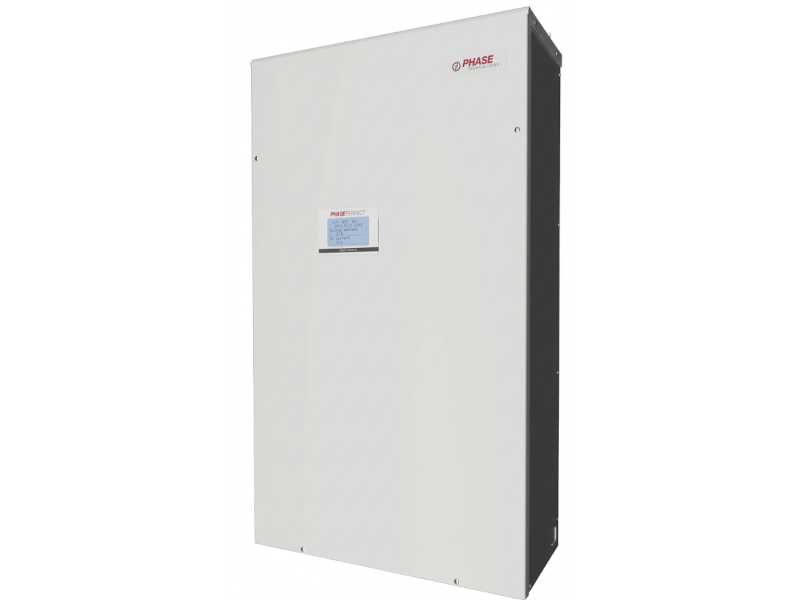

Phase Technologies – Phase Perfect® Enterprise Series Digital Phase Converter, 460V/1PH to 460V/3PH, 7.5HP-30HP

$2,914.00

Reviews (0)

SKU:: PHAS-PTE407

Description
Reviews
Additional Info
Videos

The Phase Perfect® Enterprise offers Uncommon Value in phase conversion technology.

Utilize our solid-state phase conversion technology to power single or multiple three-phase loads from a single-phase source quietly, efficiently, and reliably.

Over 20 years of development has resulted in a robust and proven phase conversion technology, capable of powering any load.

The Phase Perfect® Enterprise also offers Voltage Doubling options, allowing 460 V output from a 230 V input

7.5 - 30 HP, slim chassis, the same reliable and quality 3-phase power. Available with voltage-doubling.

DOCUMENTATION:

Phase Perfect Brochure

Phase Perfect Cutsheet

Phase Perfect Spec Sheet

PT-PTE Manual

Model	Horsepower	Rated Voltage	Max Input	Max Output
PTE407	7.5	460	22 A	13 A
PTE410	10	460	32 A	18 A
PTE415	15	460	48 A	27 A
PTE420	20	460	55 A	32 A
PTE430	30	460	80 A	46 A

Panel Shop Options (Request for Quote):

NEMA 3R Outdoor Enclosure (units come standard with NEMA Type 1 indoor enclosure)
On/Off Switch - Allows toggling of device power without the need to remove it from the power source.
Surge Protection - Protect your drive from damaging input voltage spikes with a high-quality, surge protective device.
Extended Warranty - standard warranty is 1 year, but additional 1 year, 2 years, or 4 years of additional coverage available
