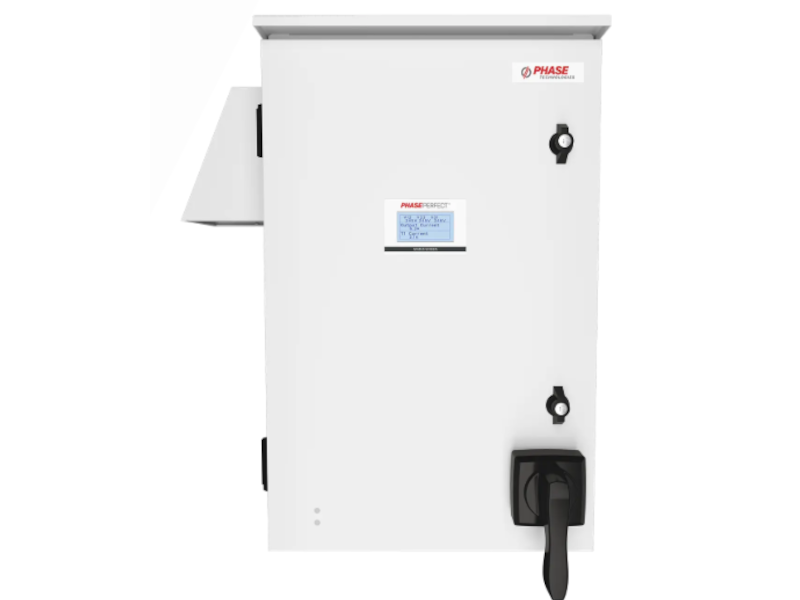

Phase Technologies – Phase Perfect® Performance Series Digital Phase Converter, 230V/1PH to 230V/3PH, 7.5HP-75HP
$4,174.00
- SKU:
- PHAS-PT007
Description
Reviews
Additional Info
Videos
Description
The Original Phase Perfect® 7.5-100+ horsepower phase converters fully customizable through the panel shop to meet any need.

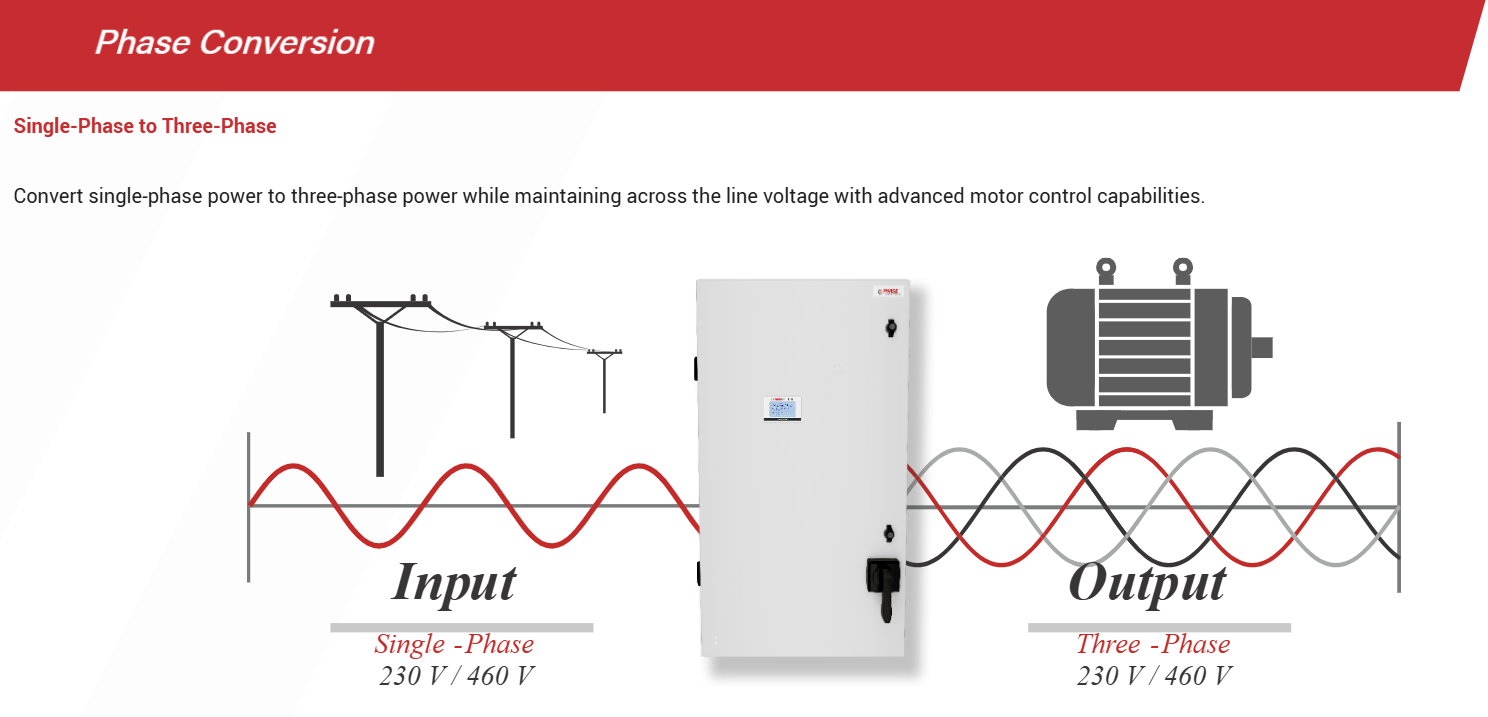

The Phase Perfect® is the world’s only digital phase converter. Utilize our solid-state phase conversion technology to power single or multiple three-phase loads from a single-phase source quietly, efficiently, and reliably.
Over 20 years of development has resulted in a robust and proven phase conversion technology, capable of powering any load. The Phase Perfect® excels where other phase conversion technologies fail.
DOCUMENTATION:
| Model Number | HP | Rated Voltage | Rated Current Input|Output |
| PT007 | 7.5 | 230 | 45 A | 26 A |
| PT010 | 10 | 230 | 62 A | 36 A |
| PT015 | 15 | 230 | 90 A | 52 A |
| PT020 | 20 | 230 | 111 A | 64 A |
| PT030 | 30 | 230 | 165 A | 95 A |
| PT040 | 40 | 230 | 225 A | 130 A |
| PT050 | 50 | 230 | 286 A | 165 A |
| PT060 | 60 | 230 | 329 A | 190 A |
| PT075 | 75 | 230 | 416 A | 240 A |
Panel Shop Options (Request for Quote):
- NEMA 3R Outdoor Enclosure (units come standard with NEMA Type 1 indoor enclosure)
- On/Off Switch - Allows toggling of device power without the need to remove it from the power source.
- Surge Protection - Protect your drive from damaging input voltage spikes with a high-quality, surge protective device.
- MCCB Service Disconnect -Branch Circuit Protection - Breaker equipped with external, service-rated, disconnect to support easy field serviceability.
- Extended Warranty - standard warranty is 1 year, but additional 1 year, 2 years, or 4 years of additional coverage available
