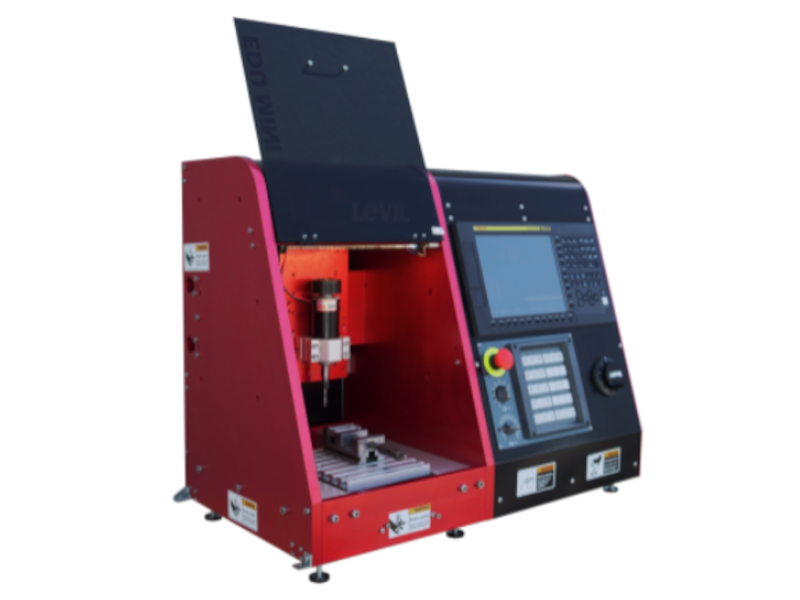

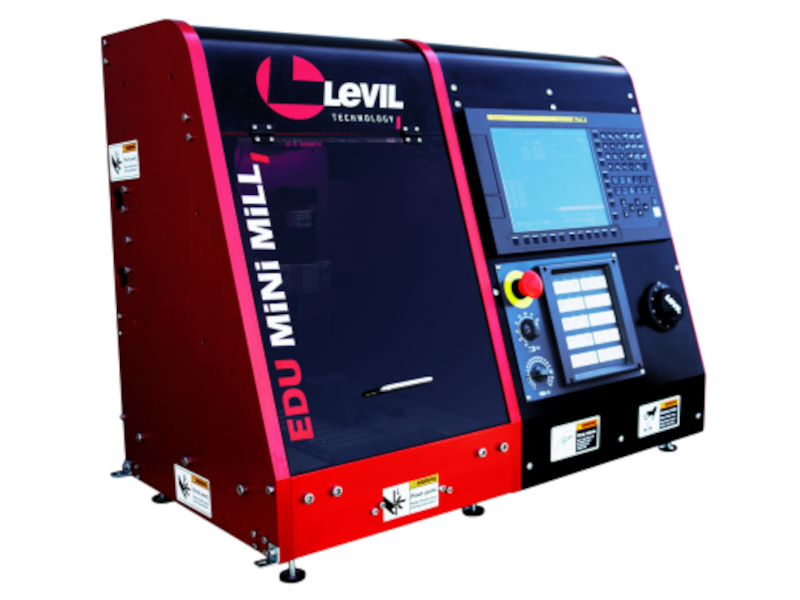

EDU MiNi MiLL - Compact Precision for Education and Small Part Production

The EDU MiNi MiLL is a compact yet robust CNC milling machine crafted specifically for educational environments. It offers students practical experience in modern machining and manufacturing, equipping them with the skills needed to excel in the industry.

• Industrial Control System: Delivers real-world experience with industry-standard technology.
• Precision and Reliability: Engineered with high-quality components for outstanding accuracy, perfect for both educational and research purposes.
• Flexible Curriculum Integration: Versatile enough to support everything from foundational training to complex projects, adapting to diverse educational requirements.
• Safety and User-Friendly Interface: Designed with a focus on safety and ease of use, ensuring an effective and secure learning environment

General Specifications (see downloads section for more information):

• Travel: X 7 in, Y 7.75 in, Z 5 in

• Spindle: 12,000 rpm, 0.5 kW, ER-11 collet

• Power: 110–220 VAC, 15 A, single phase

• Safety door sensor

• FANUC Control: 0i-MF Plus Series with 10.4” LCD and integrated MDI

• Servo motors: 130 W brushless AC (X, Y, Z), 6,000 rpm

• Drive system: Direct drive (X, Y), belt-driven (Z)

• Operator panel with FOV and SOV controls

• 3000 W voltage converter transformer, step up/down 110V/220V

• Standard accessories: 13 mm angle wrench, thin head 17 mm wrench, 6-piece metric ball-end hex key set, 2” vise, EDU Mini tool box
