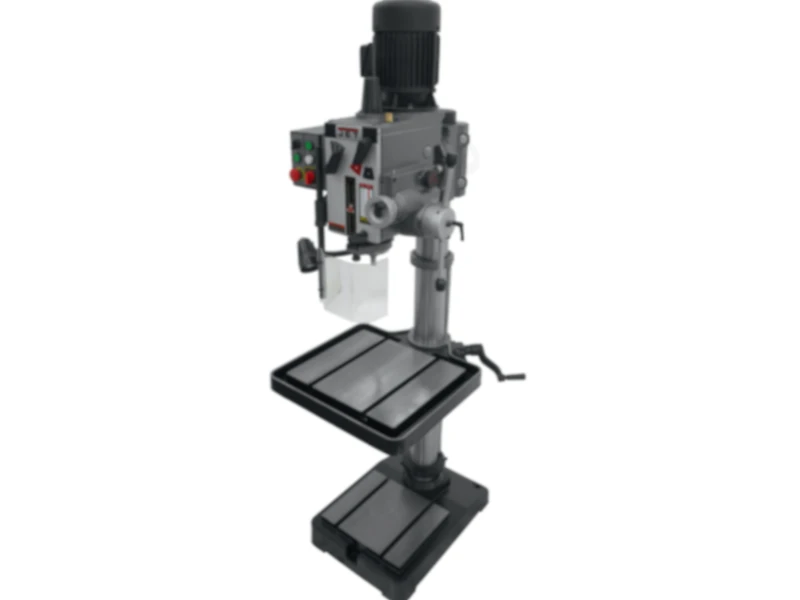

Jet GHD-20PFT, 20" Gear Head Tapping Drill Press With Power Down Feed, 230V/3PH, JT9-354026

$7,952.00

Reviews (0)

JET Geared Head Drill Presses are ideal for repetitive drilling in a wide variety of materials.

These drill presses are equipped with helical gears for smooth and quiet operation, a quick-release drill ejector and English/Metric depth gauge.

T-slotted table, 12 spindle speeds, and a head and table that rotate 360° around the column enhance overall use and supply premier results.

Easily accessible table raiser
Head tilts left or right
Heavy-duty design allows a variety of precision drilling and tapping applications
Integrated tapping and reversing controls
Large production table and T-slotted base
Power downfeed speed selector

Stock Number	JT9-354026
Base Dimensions (In.)	26 x 18
Base Work Table (In.)	15-1/4 x 13
Column Diameter (In.)	4-1/2
Distance Column to Spindle (In.)	10
Drilling Capacity Cast Iron (In.)	1-1/2
Drilling Capacity Mild Steel (In.)	1-1/4
Drills to Center of Circle (In.)	20
Model Number	GHD-20PFT
Motor (HP)	2 HP (2 Speed) , 230V, 3Ph
Overall Dimensions (L x W x H) (In.)	32 x 24 x 71
Prop 65	Cancer and Reproductive Harm
Quill Diameter (In.)	3
Quill Feed	Manual
Range of Spindle Speeds (RPM)	60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000
Spindle Distance to Base (In.)	44-5/16
Spindle Distance to Table (Max.) (In.)	30-1/2
Spindle Taper (In. x TPI)	MT-3
Spindle Travel (In.)	4-1/2
Style (Type)	Geared Head
T-Slot Centers (In.)	9
Table Size (L x W) (In.)	21-3/4 x 19-1/2
Table Travel (In.)	25-1/2
Tapping Capacity Cast Iron (In.)	15/16
Tapping Capacity Mild Steel (In.)	15/16
Warranty	2 Year
Work Table Weight Capacity (Lbs.)	275
Gross Weight	708.0
Net weight	708.0
