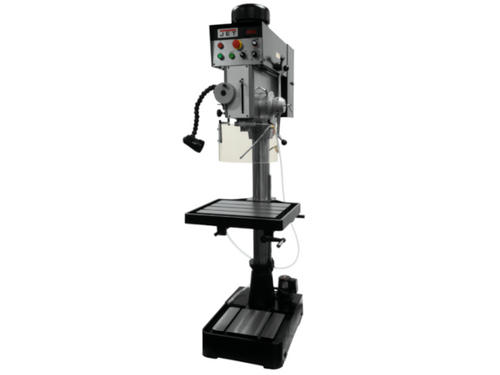

Jet JDP-20EVST-230-PDF, 20" EVS Geared Head Drill Press with Tapping & Power Downfeed, 230V/3PH, JT9-354245

$9,052.00

Reviews (0)

SKU:: JETJT9-354245

Description
Reviews
Additional Info

JET Electronic Variable Speed Drill Presses offer spindle speed rates between 65 and 2000 RPM for a wide variety of applications.

Designed to permit continuous speed adjustment - even during operation.

Forward and reverse tapping capabilities, an emergency stop, and a heavy-duty casted head are but a few of the features JET includes to enhance overall use and accuracy. CSA/CUS Certified.

CSA Coolant System
Front Mounted LED Spindle RPM Readout
Front mounted positive control depth stop
Heavy-duty steel column for increased precision and rigidity
High torque at all speeds both forward and reverse
Large Hand Grips designed with the users comfort in mind
Large precision ground T-Slot production table for easy set ups
Latest AC Inverter Variable Speed Technology

Stock Number	JT9-354245
Base Dimensions (In.)	27 x 19
Column Diameter (In.)	4-1/2
Distance Column to Spindle (In.)	10-7/16
Drilling Capacity Mild Steel (In.)	2
Drills to Center of Circle (In.)	20
Inverter Type	B Type 230V 1/3Ph
Model Number	JDP20EVST-230-PDF
Motor (HP)	2 HP, 230V 3ph
Overall Dimensions (L x W x H) (In.)	42.5 x 27.16 x 78.74
Prewired Voltage (V.)	230
Prop 65	Cancer and Reproductive Harm
Range of Spindle Speeds (RPM)	60 - 2,000(60-540/225-2000)
Spindle Taper (In. x TPI)	MT-4
Spindle Travel Auto (In.)	4-1/2
Spindle Travel (In.)	6
Style (Type)	Variable Speed
Swing (In.)	20
T-Slot Centers (In.)	7-7/16
Table Size (L x W) (In.)	22x18-3/4
Table Travel (In.)	20
Tapping Capacity Cast Iron (In.)	1
Tapping Capacity Mild Steel (In.)	1
Warranty	2 Year
Work Table Weight Capacity (Lbs.)	154
Gross Weight	847.0
Net weight	847.0
