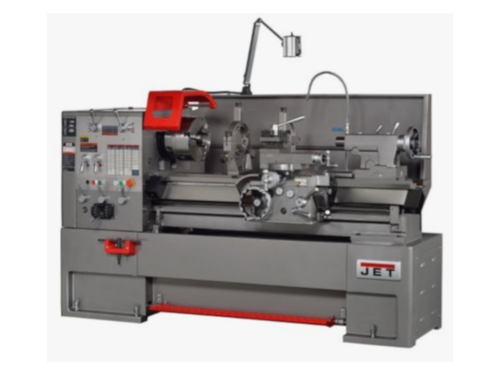

Jet GH-1640ZX, Large Spindle Bore Gear Head Lathe w/ Taper Attachment Kit, JT1-3285

$36,999.00

Reviews (0)

SKU:: JETJT1-3285

Description
Reviews
Additional Info

The JET GH-1640ZX is engineered for shops that require increased horsepower, larger through-spindle capacity, and greater rigidity without moving to a longer bed machine.

With a powerful 10HP, 3-phase motor and a 3.15" spindle bore, this 16" x 40" gear head lathe is built to handle heavier stock, tougher materials, and higher material removal rates.

The D1-8 spindle nose supports industrial-grade workholding solutions, while 12 spindle speeds ranging from 26–1500 RPM provide the torque and flexibility required for aggressive turning, precision threading, deep boring, and production-facing operations

The 10HP motor provides the torque needed for deeper passes, harder materials, and improved metal removal rates compared to lower horsepower machines
Larger 3.15" Through-Spindle Capacity Accommodates larger diameter stock, reducing secondary operations and increasing shop efficiency
Industrial D1-8 Spindle Nose Supports robust workholding setups for demanding fabrication and production environments
Rigid Cast Iron Construction One-piece base minimizes flex and vibration, improving repeatability and surface finish during heavy-duty turning
Certified Operator Protection UL 987 Certified with standard foot brake, chuck guard, electronic chuck key holder, and lead screw cover to reinforce safe operation
Inspected, Tested, and Ready to Run JET’s 30-Point Pre-Shipment Inspection verifies spindle accuracy, safety systems, controls, and gear function before arrival

Stock Number	JT1-3285
Carriage Travel (In.)	35
Compound Slide Travel (In.)	5.9
Cross Slide Travel (In.)	9.8
Diametral Pitch Threads Number	21
Distance Between Centers (In.)	40"
Drive	Geared Head
Length of Gap (In.)	8
Max Tool Size (In.)	5/8 x 5/8
Model Number	GH-1640ZX
Modular Pitch Threads Number	18
Modular Pitch Threads Range	0.3 - 3.5
Motor Phase	3
Motor Power (HP)	10
Motor Voltage (V.)	230
Number of Inch Threads	45
Number of Metric Threads	39
Number of Spindle Speeds	12
Prop 65	Cancer and Reproductive Harm
Range of Cross Feeds (IPR)	0.00075" - 0.02"
Range of Inch Threads (TPI)	2-72
Range of Longitudinal Feeds (IPR)	0.0015" - 0.04"
Range of Metric Threads	0.2 - 14mm
Range of Spindle Speeds (RPM)	26-1500 RPM
Size	16" x 40"
Spindle Bore (In.)	3-1/8
Spindle Mount	D1-8
Spindle Taper	MT-7 (with sleeve MT-5)
Spindle Taper with Sleeve	MT-5
Style (Type)	Bench - Geared Head
Swing Over Bed (In.)	16
Swing Over Cross Slide (In.)	10.3"
Swing Through Gap (In.)	23"
Tailstock Spindle Travel (In.)	5
Taper in Tailstock Spindle	MT 4
Warranty	2 Year
Width of Bed (In.)	12.5"
Gross Weight	4299
Net weight	3858
