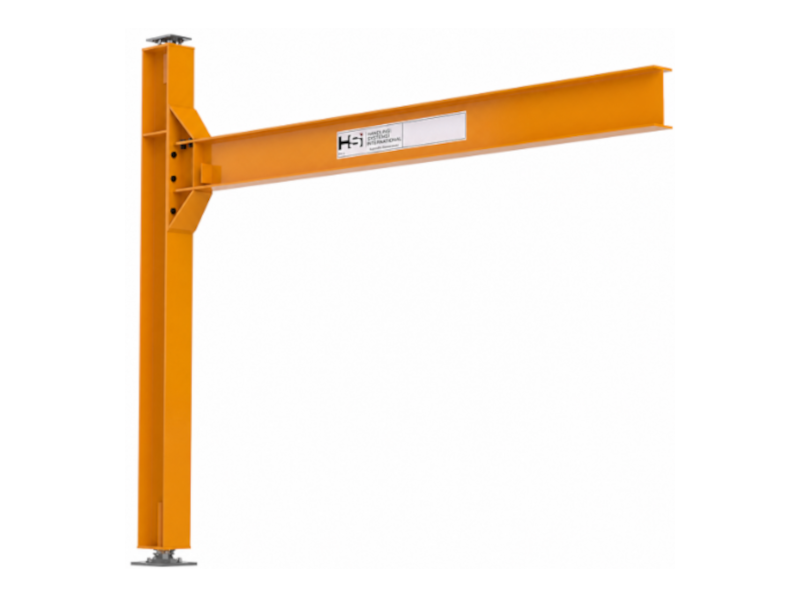

HSI Pillar Mounted Jib Crane, 3 Ton
$5,656.71
- SKU:
- HANL-314-5
Estimated Lead Time: 2-3 weeks
Description
Reviews
Additional Info
Description
The Handling Systems International Model 314 Pillar Mounted Jib Crane is designed to mount to the floor with upper support from a building truss or bracket.
This provides an economical 360° rotation solution with no special foundation requirement, reducing overall installation cost. Well suited for low headroom applications, and also available with a drop boom configuration.
- Capacities up to 10 Ton
- Most economical 360 rotation jib crane
- No foundation requirement
- Low force exertion on supporting structure
- Perfect solution for overhead crane work cell handling
HSI Model 314 Mast Style Jib Crane, 3 Ton - 8' to 20' Span
NOTE: Price listed is for smallest size model #314-6000-8-10 (RFQ for pricing on others).
Not seeing what you're looking for? Please RFQ, many sizes available not listed.
| Model | Capacity (LBS) |
Span (S) | Mounting Height (MH) | Height Under Boom (HUB) (Feet) |
Approx. Weight (lbs.) |
| 314-6000-8-10 | 6000 | 8'-0" | 10'-0" | 8'-5" | 881 |
| 314-6000-8-14 | 6000 | 8'-0" | 14'-0" | 12'-5" | 1028 |
| 314-6000-8-20 | 6000 | 8'-0" | 20'-0" | 18'-5" | 1528 |
| 314-6000-10-10 | 6000 | 10'-0" | 10'-0" | 8'-5" | 1055 |
| 314-6000-10-14 | 6000 | 10'-0" | 14'-0" | 12'-5" | 1424 |
| 314-6000-10-20 | 6000 | 10'-0" | 20'-0" | 18'-5" | 1701 |
| 314-6000-12-10 | 6000 | 12'-0" | 10'-0" | 8'-5" | 1309 |
| 314-6000-12-14 | 6000 | 12'-0" | 14'-0" | 12'-5" | 1509 |
| 314-6000-12-20 | 6000 | 12'-0" | 20'-0" | 18'-5" | 1805 |
| 314-6000-14-10 | 6000 | 14'-0" | 10'-0" | 8'-3" | 1578 |
| 314-6000-14-14 | 6000 | 14'-0" | 14'-0" | 12'-3" | 1756 |
| 314-6000-14-20 | 6000 | 14'-0" | 20'-0" | 18'-3" | 2321 |
| 314-6000-16-10 | 6000 | 16'-0" | 10'-0" | 8'-0" | 2004 |
| 314-6000-16-14 | 6000 | 16'-0" | 14'-0" | 12'-0" | 2254 |
| 314-6000-16-20 | 6000 | 16'-0" | 20'-0" | 18'-0" | 2603 |
| 314-6000-18-10 | 6000 | 18'-0" | 10'-0" | 8'-0" | 2135 |
| 314-6000-18-14 | 6000 | 18'-0" | 14'-0" | 12'-0" | 2381 |
| 314-6000-18-20 | 6000 | 18'-0" | 20'-0" | 18'-0" | 3039 |
| 314-6000-20-10 | 6000 | 20'-0" | 10'-0" | 7'-9" | 2559 |
| 314-6000-20-14 | 6000 | 20'-0" | 14'-0" | 11'-9" | 2810 |
| 314-6000-20-20 | 6000 | 20'-0" | 20'-0" | 17'-9" | 3481 |
Available Options (RFQ):
- Tagline Festooning
- Hoists & Trolleys
- Rotation Stops
- Outdoor application
- Motorized Rotation
- Hand Geared Rotation
- Custom Heights & Spans
Reviews (0)
Be the first to review this product.
Additional Info
- SKU:
- HANL-314-5
- Availability:
- Estimated Lead Time: 2-3 weeks
- Shipping:
- Calculated at Checkout
- Mounting:
- Pillar
- Standard Capacities:
- Up to 3 tons
- Spans:
- Up to 20 ft.
- Power Option:
- Yes
- Heights:
- Determined by structure
