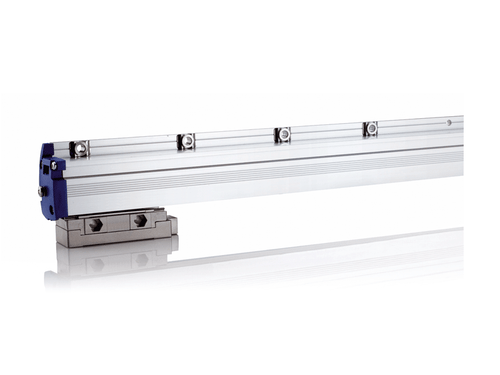

Fagor LA Series Absolute Encoders (440mm - 50m)

Contact Us for Pricing

Price and SKU will update based on options selected.
Current stock: 0


Specially designed for high performance environment requiring speed and accuracy.
Their special mounting system guarantees a thermal behavior identical to that of the machine surface the linear encoder is mounted on. This is achieved through floating fixtures at their ends with the base of the machine and by tensioning the etched steel tape. This system eliminates the errors caused by temperature changes and ensures maximum accuracy and repeatability of the linear encoders. The steel tape graduation pitch is 0.04 mm. Measuring lengths over 4 040 mm require the use of modules.


Available in measuring lengths from 440 mm to 50 m in 200 mm increments. Contact Fagor Automation for custom solutions if your application requires longer lengths.


LA: Absolute linear encoders with SSI protocol for FAGOR and others.
LAS: Absolute linear encoders with SSI protocol for SIEMENS® (Solution Line).
LAF: Absolute linear encoders with FANUC® (01, 02 and αi) protocol.
LAM: Absolute linear encoders with MITSUBISHI® CNC protocol.
LAP: Absolute linear encoders with PANASONIC® (Matsushita) protocol.
LAD: Absolute linear encoders with FeeDat protocol for FAGOR and others.
LAD + EC-PA-DQ: Linear and absolute encoders with DRIVE-CLiQ® protocol, for SIEMENS® (Solution Line).
LAB: Absolute linear encoders with BiSS® protocol.


Measurement Incremental: By means of a 40 μm-pitch stainless steel tape.
Absolute: Optical reading of sequential binary
Glass thermal expansion coefficient αtherm: 11 ppm/K aprox.
Output signals 0,1 μm 1 μm Interfaz α Interfaz αi 0,01 μm 0,05 μm 0,01 μm 0,05 μm 0,01 μm 0,05 μm 0,01 μm 0,05 μm 0,01 μm 0,05 μm
0,05 μm 0,0125 μm
0,01 μm 0,0025 μm
Incremental signal period onda-senoidal1 Vpp - - - - - -
Incremental signal period 40 μm - - - - - -
Limit frequency < 50 KHz para 1 Vpp - - - - - -
Maximum cable length 75m (*) 100 m 30 m 30 m 30 m 30 m 30 m 30m (*)
Supply voltage 5 V ± 10%, <250 mA (sin carga)
Accuracy ± 5 μm/m
Maximum speed 120 m/min 180 m/min 180 m/min 180 m/min 180 m/min 180 m/min 180 m/min
Maximum vibration 100m/s2
Maximum shock 300m/s2 (11 ms) IEC 60068-2-27
Maximum acceleration 100m/s2 en la dirección de medida
Required moving force < 5 N
Operating temperature 0 ºC … 50 ºC
Storage temperature -20 ºC ... 70 ºC
Weight 1,50 kg + 4 kg/m
Relative humidity 20 … 80%
Protection IP 53 (standard)
IP 64 (DIN 40050) using pressurized air at 0.8 ± 0.2 bar in linear encoders
Reader head With built-in connector
