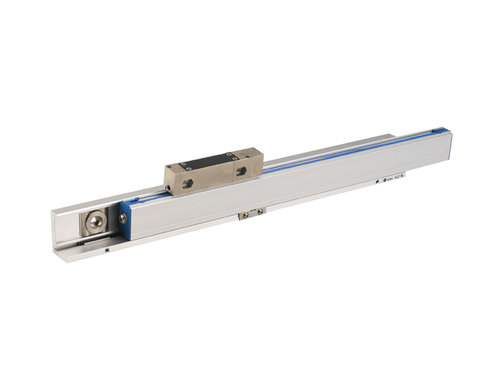

Linear encoder with threaded head option for different installation options without the need for nuts. Small mounting support that may be secured from the top or from the bottom for easier installation.
Especially indicated for high standard environments in terms of speed and vibration. Their special design of the securing points of the linear encoder (TDMS™), drastically reduces the effects and ensures the accuracy and repeatability of the encoders.

Lengths

70 • 120 • 170 • 220 • 270 • 320 • 370 • 420 • 470 • 520 • 570 • 620 • 670 • 720 • 770 • 820 • 870 • 920 • 970 • 1.020 • 1.070 • 1.140 • 1.240 • 1.340 • 1.440 • 1.540 • 1.640 • 1.740 • 1.840 • 2.040

Models

SV2A: Absolute linear encoders with SSI protocol for FAGOR and others.
SV2AS: Absolute linear encoders with SSI protocol for SIEMENS® (Solution Line).
SV2AF: Absolute linear encoders with FANUC® (01 and 02) protocol.
SV2AM: Absolute linear encoders with MITSUBISHI® CNC protocol.
SV2AP: Absolute linear encoders with PANASONIC® (Matsushita) protocol.
SV2AD: Absolute linear encoders with FeeDat protocol for FAGOR and others.
SV2AD + EC-PA-DQ: Linear and absolute encoders with DRIVE-CLiQ® protocol, for SIEMENS® (Solution Line).
SV2AB: Absolute linear encoders with BiSS® protocol.

	SV2A / SV2AS		SV2AF		SV2AM		SV2AP		SV2AD		SV2AD+EC-PA-DQ		SV2AB
Measurement	Incremental: By means of a 20 μm-pitch graduated glass tape Absolute: Optical reading of sequential binary code
Glass thermal expansion coefficient	αtherm: 8 ppm/K aprox.
Measuring resolution	0,1 μm		Interface α	Interface αi	0,01 μm	0,05 μm	0,01 μm	0,05 μm	0,01 μm	0,05 μm	0,01 μm	0,05 μm	0,01 μm	0,05 μm
			0,05 μm	0,0125 μm
			0,01 μm	0,0025 μm
Output signals	1 Vpp		-		-		-		-		-		-
Incremental signal period	20 μm		-		-		-		-		-		-
Limit frequency	< 100 KHz for1 Vpp		-		-		-		-		-		-
Maximum cable length	75m (*)	100m	30m		30m		30m		100m		30m		30m (*)
Supply voltage	5 V ± 10%, <250 mA (sin carga)
Accuracy	± 5 μm/m ± 3 μm/m
Maximum speed	180 m/min
Maximum vibration	200 m/s2 (55 … 2000 Hz) IEC 60068-2-6
Maximum shock	300 m/s2 (11 ms) IEC 60068-2-27
Maximum acceleration	100 m/s2 in the measuring direction
Required moving force	< 4 N
Operating temperature	0 ºC … 50 ºC
Storage temperature	-20 ºC ... 70 ºC
Weight	0,25 kg + 1,55 kg/m
Relative humidity	20 … 80%
Protection	IP 53 (standard) IP 64 (DIN 40050) using pressurized air at 0.8 ± 0.2 bar in linear encoders
Reader head	With built-in connector
