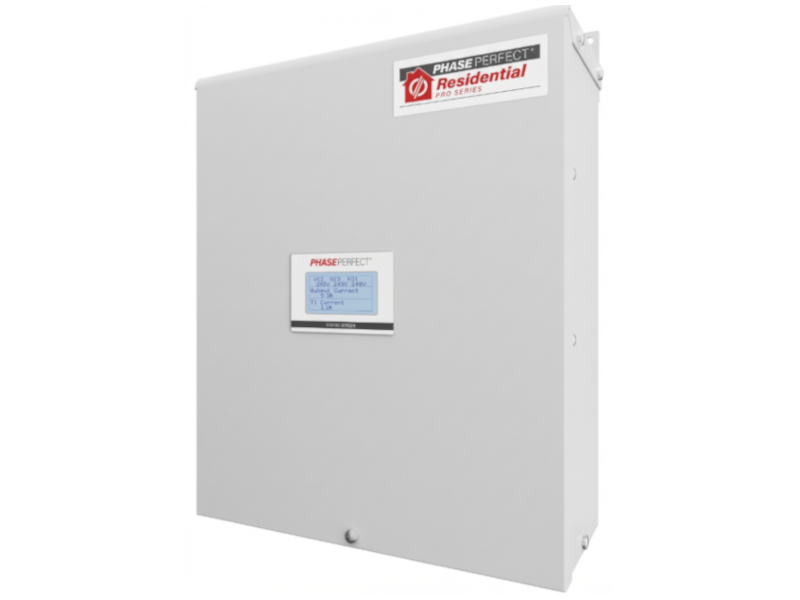

Phase Technologies – Phase Perfect® Residential Pro Series Digital Phase Converter, 230V/1PH to 230V/3PH, 2HP-5HP
$900.00
- SKU:
- PHAS-PTR002
Description
Reviews
Additional Info
Videos
Description

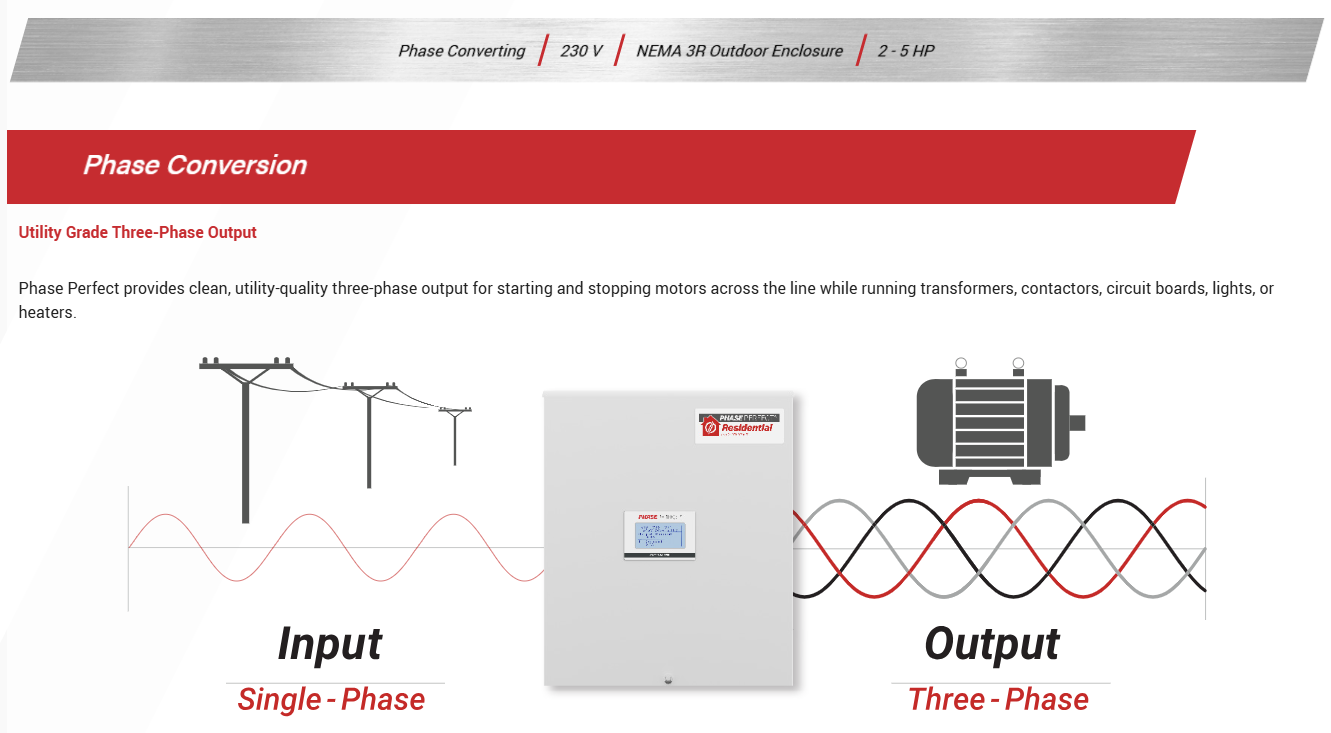

The Phase Perfect® Residential Pro digital phase converter uses the same proven technology as our Phase Perfect® Performance and Enterprise converters but is specifically designed for smaller motor loads found in home garages or small shops. The Residential Pro uses 80% less standby power than a rotary, runs 82% quieter, and takes up less space. No parts to wear out, no adjustments to make. Built-in digital monitoring keeps your equipment safe. Handles 2-5 HP loads—grinders, lathes, mills, compressors, dust collectors, and more. Starts hard loads and runs multiple machines at once. Easy to install, compact indoor enclosure. Stop wasting money on lost power and burned-out motors.
Includes Nema Type 1 indoor enclosure, RFQ for optional NEMA 3R enclosure.
How does sizing differ from a typical rotary converter?
When sizing a rotary phase converter, the motor size is doubled to produce the current required for the 3rd leg at full power (For example, a 5HP machine will require a 10HP rotary converter).
With a Phase Technologies converter, sizing is straightforward.
You can power a 5 HP machine with a 5 HP Phase Perfect converter, with no derating required.
Choosing a PT digital phase converter over rotary can lead to significant energy cost savings over the course of the year.

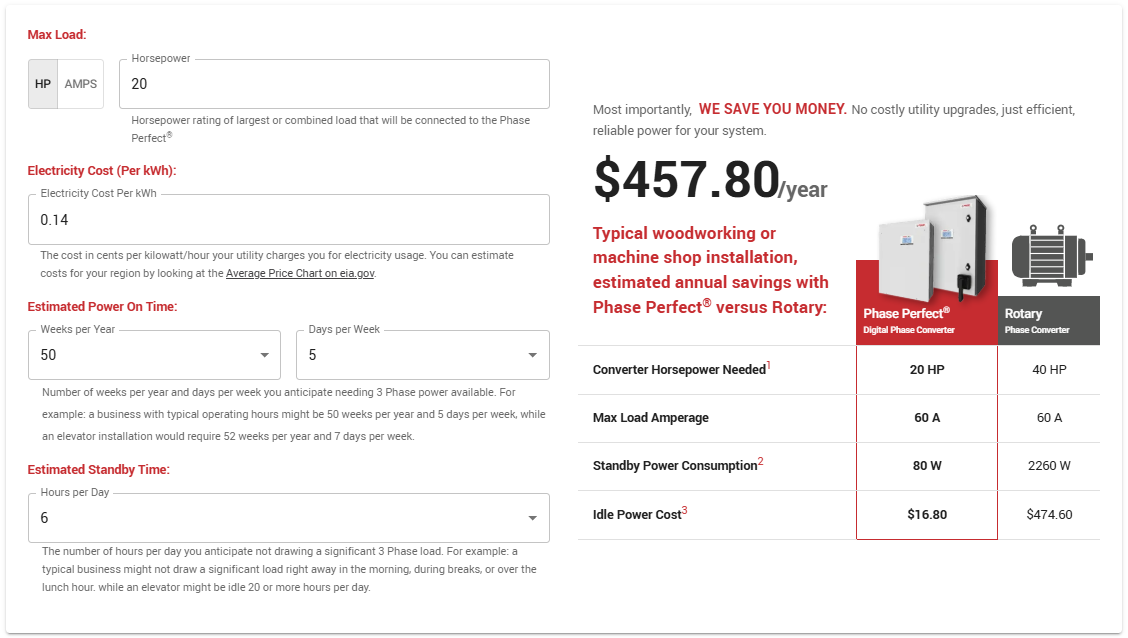

If you would like to estimate the potential savings for your specific application, contact us and we can run a Phase Technologies cost savings calculation.
Cost savings example:
DOCUMENTATION:
| Model | Horsepower | Rated Voltage | Max Input | Max Output |
| PTR002 | 2 | 230 | 13 A | 7.5 A |
| PTR003 | 3 | 230 | 19 A | 11 A |
| PTR005 | 5 | 230 | 28 A | 16 A |
Panel Shop Options (Request for Quote):
- NEMA 3R Outdoor Enclosure (units come standard with NEMA Type 1 indoor enclosure)
- Extended Warranty - standard warranty is 1 year, but additional 1 year, 2 years, or 4 years of additional coverage available
