Low Profile Manual Trollies

Only $97.50-$627.50

SKU:
RQ_VESL-E-MT

Request quote for availability

Price and SKU will update based on options selected.
Current stock: 0
Description

Description

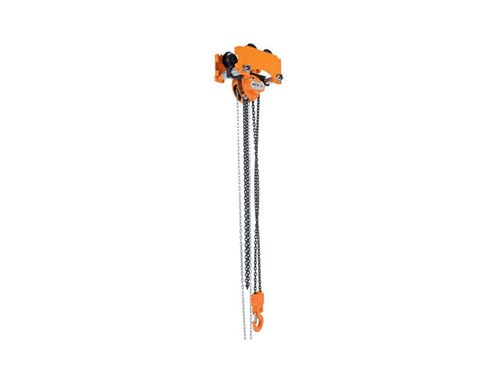

These trollies have been designed to quickly install on virtually any S and H type I-beam. The width of the trolley is adjusted by rotating the center rod with lifting eye clockwise or counterclockwise. Once hoist is attached, center rod cannot be rotated which prevents trolley width from accidentally changing. The trolley includes four (4) rollers with sealed bearings. Choose either push trolley or geared trolley. Geared trolley is ideal for use when precise positioning is required. A lifting eye is located at the bottom of the trolley for attaching a hoist (sold separately). Steel construction and painted finish. Headroom is measured from bottom of wheel to bottom of hooking eye.

Vestil Low Profile Manual Trolley Models

MODEL NUMBERDESCRIPTIONI-BEAM FLANGEHEADROOMUNIFORM CAPACITYWEIGHT (POUND)
E-MT-1 PUSH 2" to 8 5/8" 2 1/2" 1,000 lb. 12
E-MT-2 PUSH 2 1/2" to 10 1/8 " 2 5/8" 2,000 lb. 20
E-MT-4 PUSH 2 1/2" to 8 5/8" 3" 4,000 lb. 31
E-MT-6 PUSH 3" to 8 5/8 " 3 3/8" 6,000 lb. 52
E-MT-8 PUSH 3" to 9" 4" 8,000 lb. 82
E-MT-10 PUSH 3" to 9" 4" 10,000 lb. 82
E-MT-1-C GEARED 2 1/2" to 5 "1/2" 4 1/2" 1,000 lb. 21
E-MT-2-C GEARED 2 1/2" to 5 1/2" 5" 2,000 lb. 29
E-MT-4-C GEARED 3" to 6 1/2" 6" 4,000 lb. 41
E-MT-6-C GEARED 3" to 8" 7 3/8" 6,000 lb. 62
E-MT-8-C GEARED 3" to 9" 8 5/8" 8,000 lb. 100
E-MT-10-C GEARED 3" to 9" 8 5/8" 10,000 lb. 103
Reviews

Reviews (0)

Be the first to review this product.
Additional Info

Additional Info

Warranty:
<a href="http://www.vestildocs.com/manuals/E-MT,%20MANUAL.pdf ">E-MT Series Manual</a><br><a href="http://www.vestildocs.com/Warranties/Limited%20Warranty%20(90%20days%20warranty%20period).pdf" target="_blank"> Vestil E-MT Warranty</a>
SKU:
RQ_VESL-E-MT
Availability:
Request quote for availability
Mfr Part #:
-
Product Type:
Trolley
Capacity Lbs.:
1000
Capacity Lbs.:
2000
Capacity Lbs.:
4000
Capacity Lbs.:
6000
Capacity Lbs.:
8000
Capacity Lbs.:
10000
Beam Width:
2" to 8 5/8"
Beam Width:
2 1/2" to 10 1/8"
Beam Width:
2 1/2" to 8 5/8"
Beam Width:
3" to 8 5/8"
Beam Width:
3" to 9"
Beam Width:
2 1/2" to 5 1/2"
Beam Width:
3" to 6 1/2"
Beam Width:
3" to 9"
