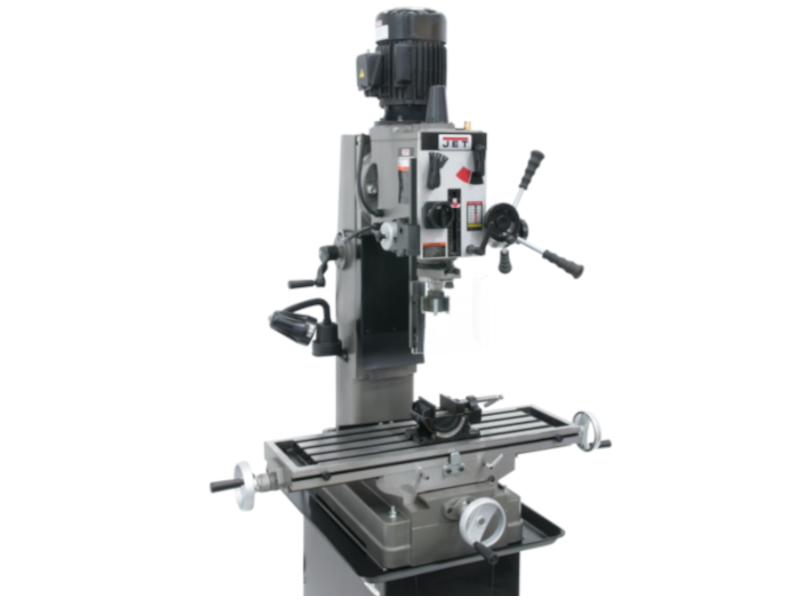

Jet JMD-45GH Geared Head Square Column Mill Drill with Newall NMS300 2-Axis DRO & X-Powerfeed, JT9-351159
$12,286.00
- SKU:
- JETJT9-351159
Description
Reviews
Additional Info
Description
The heavy-duty JMD-45GH Square Column Geared Head Mill Drill is engineered to deliver the rigidity needed to perform a variety of precision drilling applications in high intensity environments. Features
-
Calibrated fine down feed built in
- CSA/CUS Certified
- Easy to read internal depth gauge
- Full power to the cutting tools through 6 speed geared head
- Heavy-duty design allows for a variety of precision drilling applications
- Milling table allows for movement
- R8 spindle allows use of all mill tooling
- Rapid spindle speed changes through quick-select gear shift levers
- Square column with dovetail ways
| Stock Number | JT9-351159 |
|---|---|
| Base Dimensions (In.) | 26-11/16 x 15-15/16 |
| Face Mill Capacity (In.) | 4 |
| Max Distance Spindle to Table (In.) | 18-1/8 |
| Model Number | JMD-45GH |
| Motor (HP) | 1-1/2HP, 115/230V, 1Ph |
| Number of Spindle Speeds | 6 |
| Overall Dimensions (L x W x H) (In.) | 29 x 36 x 50 |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 3 |
| Range of Spindle Speeds (RPM) | 65-1550 |
| Spindle Taper (In. x TPI) | R8 |
| Spindle Travel (In.) | 5 |
| Swing (In.) | 19-11/16 |
| Table Longitudinal Travel (In.) | 20-1/2 |
| Table Size (L x W) (In.) | 9-1/2 x 32-1/4 |
| Warranty | 2 Year |
| Gross Weight | 794.0 |
| Net weight | 727.0 |
Reviews (0)
Be the first to review this product.
Additional Info
- Warranty:
- <p><a href="http://machinetoolproducts.com/content/Jet/350020_man_EN.pdf" target="_blank">JMD-15/18/18PFN Mill/Drill Manual</a></p>
- SKU:
- JETJT9-351159
- Shipping:
- $0.00 (Fixed Shipping Cost)
- Mfr Part #:
- JT9-351159
- Style (Type):
- Belt Drive
- Swing (in.):
- 21
- Spindle Travel (in.):
- 5
