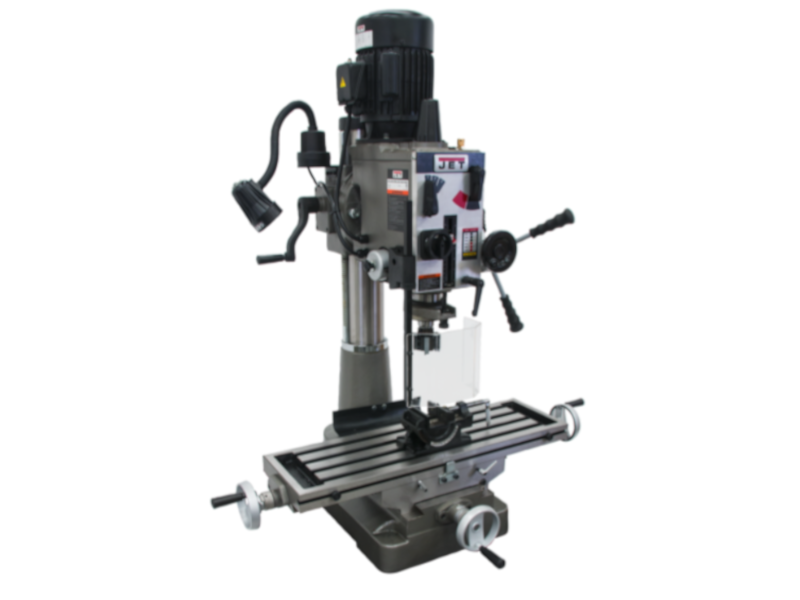

Jet JMD-40GH Geared Head Mill Drill with Newall NMS300 2Axis DRO, JT9-351144
$8,513.00
- SKU:
- JETJT9-351144
Description
Reviews
Additional Info
Description
Engineered for precision drilling, the heavy-duty JMD-40GH Round Column Geared Head Mill Drill is loaded with intuitive features for maximum accuracy.
Features
-
Calibrated fine down feed built in
-
CSA/CUS Certified
-
Easy to read internal depth gauge
-
Full power to the cutting tools through 6 speed geared head
-
Heavy-duty design allows for a variety of precision drilling applications
-
Mill Drill Stand, p/n 350045, shown in some images, is optional
-
Milling table allows for movement
-
R8 spindle allows use of all mill tooling
-
Rapid spindle speed changes through quick-select gear shift levers
| Stock Number | JT9-351144 |
|---|---|
| Column Diameter (In.) | 4-1/2 |
| Face Mill Capacity (In.) | 4 |
| Max Distance Spindle to Table (In.) | 15-3/4 |
| Model Number | JMD-40GH |
| Motor (HP) | 1-1/2HP, 115/230V, 1Ph |
| Number of Spindle Speeds | 6 |
| Overall Dimensions (L x W x H) (In.) | 28 x 39-1/4 x 42-1/2 |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 3 |
| Range of Spindle Speeds (RPM) | 65, 130, 220, 480, 925, 1550rpm |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |
| Swing (In.) | 21 |
| Table Longitudinal Travel (In.) | 20-1/2 |
| Warranty | 2 Year |
| Gross Weight | 694.0 |
| Net weight | 628.0 |
351040, 351041, 351140, 351141, 351142, 351143, 351144, 351145, 351146, 351147
Reviews (0)
Be the first to review this product.
Additional Info
- Warranty:
- <p><a href="http://machinetoolproducts.com/content/Jet/350020_man_EN.pdf" target="_blank">JMD-15/18/18PFN Mill/Drill Manual</a></p>
- SKU:
- JETJT9-351144
- Shipping:
- $0.00 (Fixed Shipping Cost)
- Mfr Part #:
- JT9-351144
- Style (Type):
- Belt Drive
- Swing (in.):
- 21
- Spindle Travel (in.):
- 5
