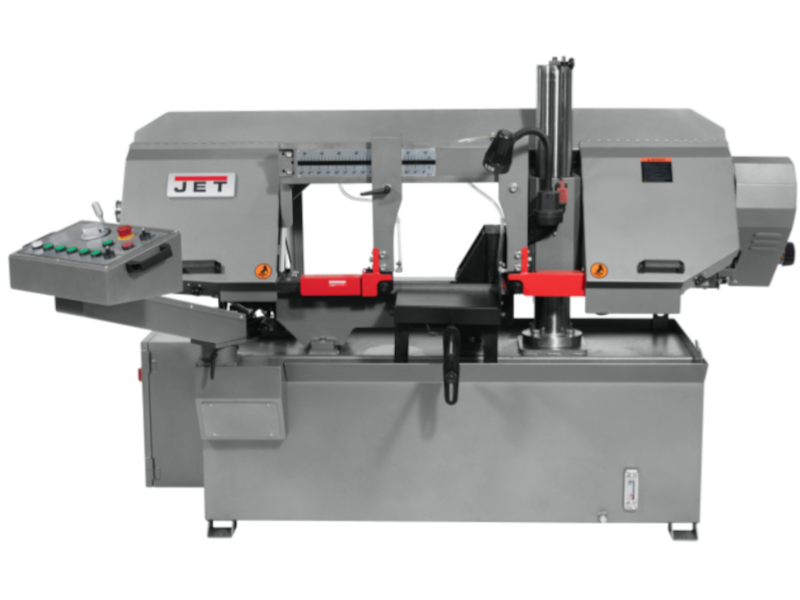

Jet HBS1220DC 12" x 20" Semi Auto Variable Speed Dual Column Bandsaw, 3HP, 460V/3PH, JT9-413400-4

$17,819.00

Reviews (0)

JET Dual Column Bandsaw is great for cutting large parts while keeping the blade as straight as possible while the head is descending during the cut.

Heavy duty construction reduces vibration and deflection
Coolant is distributed through the blade guides through an integrated coolant system
Blade tension gauge helps to ensure the blade is in the correct cutting position
Built-in, self-propelled blade brush prevents chip build up in blade guides
Motor designed for continuous operation
Powerful gearbox for long life
Two column design for more productive cutting

Stock Number	JT9-413400-4
Bed Height (In.)	27
Blade Length (In.)	155-1/2
Blade Speed (SFPM)	95 - 295
Blade Speeds (SFPM)	86,157,228,330
Blade Wheel Diameter (In.)	16
Drive	Mechanical Variable Speed
Electrics	3HP, 460V, 3Ph
Model Number	HBS1220DC
Motor (HP)	3 HP, 460v, 3Ph
Overall Dimensions (L x W x H) (In.)	81 x 42-1/2 x 54-1/2
Prewired Voltage (V.)	460V
Prop 65	Cancer and Reproductive Harm
Rectangle at 90 Degrees (In.)	12 x 20
Round at 90 Degrees (In.)	12
Shipping Weight (Lbs.)	1628
Square at 90 Degrees (In.)	12
Throat Depth (In.)	12 x 12
Warranty	2 Year
Gross Weight	1740.0
Net weight	1420.0
Blade Size (In.)	1-1/8 x 0.043 x 155-1/2
