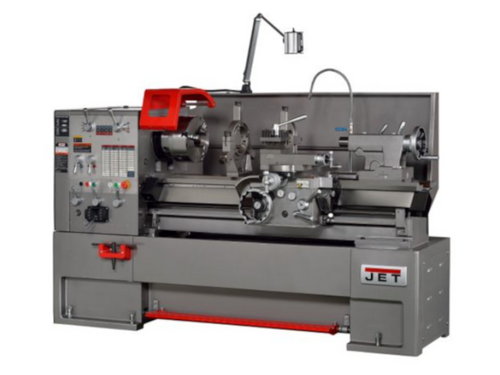

Jet GH-1860ZX, Large Spindle Bore Gear Head Lathe w/ Acu-Rite 203 DRO, JT1-3301
$44,999.00
- SKU:
- JETJT1-3301
Description
Reviews
Additional Info
Description
The JET GH-1860ZX is built for shops that demand greater swing capacity, longer turning length, and uncompromising rigidity for heavy industrial applications.
With an expanded 18" swing and 60" between centers, this lathe provides the clearance and stability required for large-diameter components, heavy shafts, industrial rollers, and high-mass workpieces.
Powered by a 10HP, 3-phase motor, the GH-1860ZX delivers consistent torque for aggressive roughing cuts and dependable performance under sustained load.
The 3.15" spindle bore allows larger material to pass directly through the headstock, reducing secondary operations and improving shop throughput.
- Expanded 18" Swing for Larger Workpieces Increased swing capacity allows machining of larger diameter components while maintaining stability and clearance for tooling.
- 60" Between Centers for Long-Part Capability Turn shafts, rollers, and extended cylindrical components in a single setup to reduce repositioning and maintain alignment.
- 10HP Industrial-Grade Torque Delivers the power needed for deep cuts, harder materials, and sustained production environments without bogging down.
- 3.15" Large Spindle Bore Run larger stock through the headstock to minimize re-chucking and secondary operations.
- Rigid One-Piece Cast Iron Construction Heavy cast iron mass absorbs vibration, limits deflection, and supports consistent dimensional accuracy under load.
- Standard Certified Safety Systems UL 987 Certified with integrated foot brake, chuck guard, electronic chuck key holder, and lead screw cover for reinforced operator protection.
- Built for Industrial Uptime Verified prior to shipment and backed by a 2-year parts and labor warranty to support predictable ownership costs.
| Stock Number | JT1-3301 |
|---|---|
| Carriage Travel (In.) | 35 |
| Compound Slide Travel (In.) | 2-11/16 |
| Drive | Geared Head |
| Length of Gap (In.) | 8 |
| Max Tool Size (In.) | 5/8 x 5/8 |
| Model Number | GH-1340 |
| Motor (HP) | 2 HP, 230V, 1Ph |
| Number of Inch Threads | 38.0000 |
| Number of Longitudinal and Cross Feed Rates | 40 |
| Number of Metric Threads | 23.0000 |
| Number of Spindle Speeds | 8 |
| Overall Dimensions (L x W x H) (In.) | 79 x 28-1/2 x 30 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Cross Feeds (IPR) | .0006 - .0130 |
| Range of Inch Threads (TPI) | 3-1/2 - 80 |
| Range of Longitudinal Feeds (IPR) | .0018 - .0374 |
| Range of Metric Threads | .45 - 10 |
| Range of Spindle Speeds (RPM) | 70 - 2,000 |
| Size | 13 x 40 |
| Spindle Bore (In.) | 1-3/8 |
| Spindle Mount | D1-4 |
| Spindle Taper with Sleeve | MT-5 (MT-3) |
| Steady Rest Capacity (In.) | 2-3/4 |
| Style (Type) | Bench - Geared Head |
| Swing Over Bed (In.) | 13 |
| Swing Over Cross Slide (In.) | 7-25/32 |
| Swing Through Gap (In.) | 18-3/4 |
| Tailstock Spindle Travel (In.) | 3-3/4 |
| Taper in Tailstock Spindle | MT-3 |
| Warranty | 2 Year |
| Width of Bed (In.) | 7-3/8 |
| Gross Weight | 1236.0 |
| Net weight | 1154.0 |
