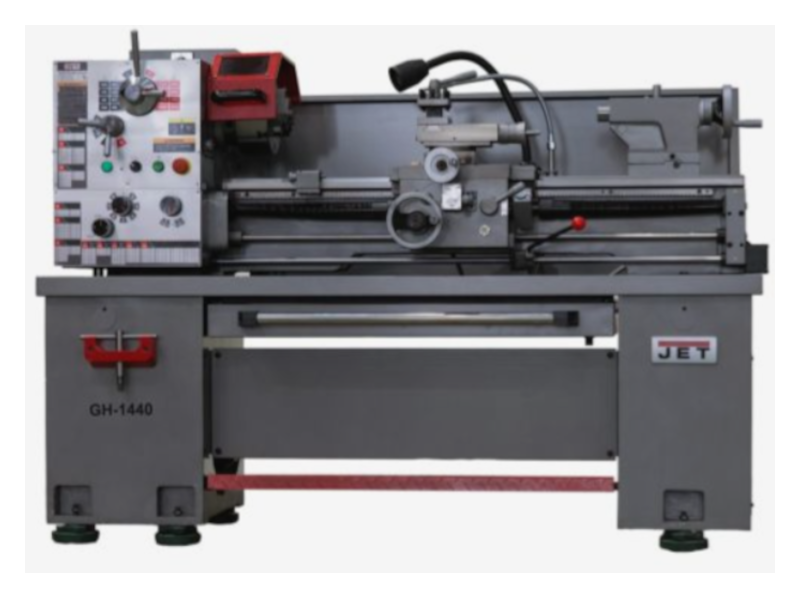

Jet GH-1440-1; 14x40 Gear Head Lathe, 230V 1PH

Jet GH-1440-1; 14x40 Gear Head Lathe w/ Collet Closer, Taper Attachment Kit, JT1-3267

$14,499.00

Reviews (0)

SKU:: JETJT1-3267

Description
Reviews
Additional Info

The JET GH-1440-1 14" x 40" Gear Head Engine Lathe is designed to help shops do more per shift with safer operation, clean containment, and dependable turning performance.

Whether used in production machining, repair work, fabrication, or training environments, this machine balances power, capacity, and operator-focused safety.

At the heart of the GH-1440-1 is a 3 HP, 1-phase motor driving an 8-speed gear head system with spindle speeds ranging from 90–1800 RPM, delivering consistent torque for turning, facing, drilling, boring, threading, grooving, and parting operations.

The 2" spindle bore increases bar capacity, reduces secondary operations, and expands the range of workpieces your shop can handle. A D1-5 spindle nose supports secure chuck mounting and industrial rigidity.

Large 2" spindle bore and 14" swing handle bigger stock and reduce secondary operations.
Foot brake, chuck guard, lead screw cover, and JET e-chuck key holder come standard for controlled operation.
Full-length splash guard, integrated coolant system, and chip tray contain chips and coolant.
3 HP motor and geared head drive system provide consistent torque across 8 speeds (90–1800 RPM).
JET 30-Point Inspection ensures proper assembly, function testing, and safety validation.
UL 987 Certified electrical system supports safer workplace installations.
2-year parts and labor warranty plus nationwide authorized service network.

Stock Number	JT1-3267
Carriage Travel (In.)	35
Compound Slide Travel (In.)	6.45"
Cross Slide Travel (In.)	6.7"
Distance Between Centers (In.)	40"
Drive	Geared Head
Length of Gap (In.)	7-2/3
Max Tool Size (In.)	5/8 x 5/8
Model Number	GH-1440-1
Modular Pitch Threads Number	18
Modular Pitch Threads Range	0.3 - 3.5
Motor Phase	1
Motor Power (HP)	2
Motor Voltage (V.)	230
Number of Inch Threads	32
Number of Longitudinal and Cross Feed Rates	40
Number of Metric Threads	32
Number of Spindle Speeds	8
Overall Dimensions (L x W x H) (In.)	76 x 30 x 48
Prop 65	Cancer and Reproductive Harm
Range of Cross Feeds (IPR)	0.0005” – 0.0086”
Range of Inch Threads (TPI)	4-56
Range of Longitudinal Feeds (IPR)	0.0016” – 0.0257”
Range of Metric Threads	0.4 – 7mm
Range of Spindle Speeds (RPM)	90-1800 RPM
Size	14 x 40
Spindle Bore (In.)	2
Spindle Mount	D1-5
Spindle Taper	MT6
Spindle Taper with Sleeve	MT-4
Steady Rest Capacity (In.)	2-3/4
Style (Type)	Bench - Geared Head
Swing Over Bed (In.)	14
Swing Over Cross Slide (In.)	8.7"
Swing Through Gap (In.)	20.3"
Tailstock Spindle Travel (In.)	6
Taper in Tailstock Spindle	MT-3
Warranty	2 Year
Width of Bed (In.)	8"
Gross Weight	1804
Net weight	1638
