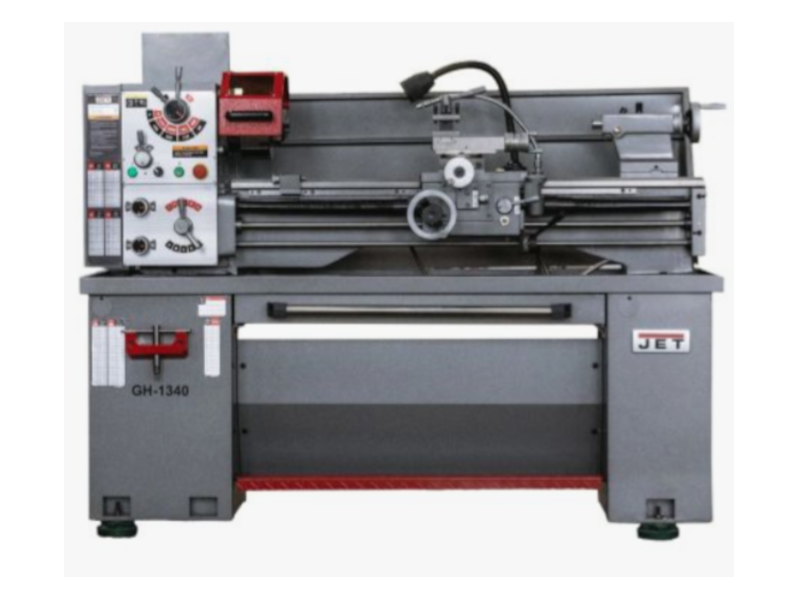

Jet GH-1340; 13x40 Gear Head Lathe, 230V 1PH

Jet GH-1340; 13x40 Gear Head Lathe w/ Acu-Rite 203, Collet Closer, Taper Attachment Kit, JT1-3264

$18,499.00

Reviews (0)

SKU:: JETJT1-3264

Description
Reviews
Additional Info

The JET GH-1340 Gear Head Lathe is built for shops that demand precision, durability, and operator safety without compromise.

Designed for MRO, fabrication, and precision machining environments, this 13” x 40” manual lathe delivers powerful cutting performance, industry-leading safety features, and the support backing of JET’s nationwide service network.

With a large 2” spindle bore, rigid cast iron construction, and 8-speed gear head drive, the GH-1340 is engineered for reliable turning across a wide range of materials and applications.

Rigid Cast-Iron Base for reduced vibration and improved accuracy

2 HP Motor (230V, 1 Phase) for dependable cutting power

8 Spindle Speeds (70–2000 RPM) for material flexibility

Integrated Coolant System

Full-Length Splash Guard

Chip Tray for Easy Cleanup

Halogen Work Light

Every GH-1340 undergoes a 30-Point Pre-Shipment Inspection to verify setup and operation before it reaches your shop, reducing installation time and startup headaches.

Backed by a 2-Year Parts & Labor Warranty, the GH-1340 offers predictable ownership costs and long-term reliability.

Specifications:

Stock Number JT1-3264
Carriage Travel (In.) 35
Compound Slide Travel (In.) 2-11/16
Drive Geared Head
Length of Gap (In.) 8
Max Tool Size (In.) 5/8 x 5/8
Model Number GH-1340
Motor (HP) 2 HP, 230V, 1Ph
Number of Inch Threads 38.0000
Number of Longitudinal and Cross Feed
Rates 40
Number of Metric Threads 23.0000
Number of Spindle Speeds 8
Overall Dimensions (L x W x H) (In.) 79 x 28-1/2 x 30
Prop 65 Cancer and Reproductive Harm
Range of Cross Feeds (IPR) .0006 - .0130
Range of Inch Threads (TPI) 3-1/2 - 80
Range of Longitudinal Feeds (IPR) .0018 - .0374
Range of Metric Threads .45 - 10
Range of Spindle Speeds (RPM) 70 - 2,000
Size 13 x 40
Spindle Bore (In.) 1-3/8
Spindle Mount D1-4
Spindle Taper with Sleeve MT-5 (MT-3)
Steady Rest Capacity (In.) 2-3/4
Style (Type) Bench - Geared Head
Swing Over Bed (In.) 13
Swing Over Cross Slide (In.) 7-25/32
Swing Through Gap (In.) 18-3/4
Tailstock Spindle Travel (In.) 3-3/4
Taper in Tailstock Spindle MT-3
Warranty 2 Year
Width of Bed (In.) 7-3/8
Gross Weight 1236.0
Net weight 1154.0
