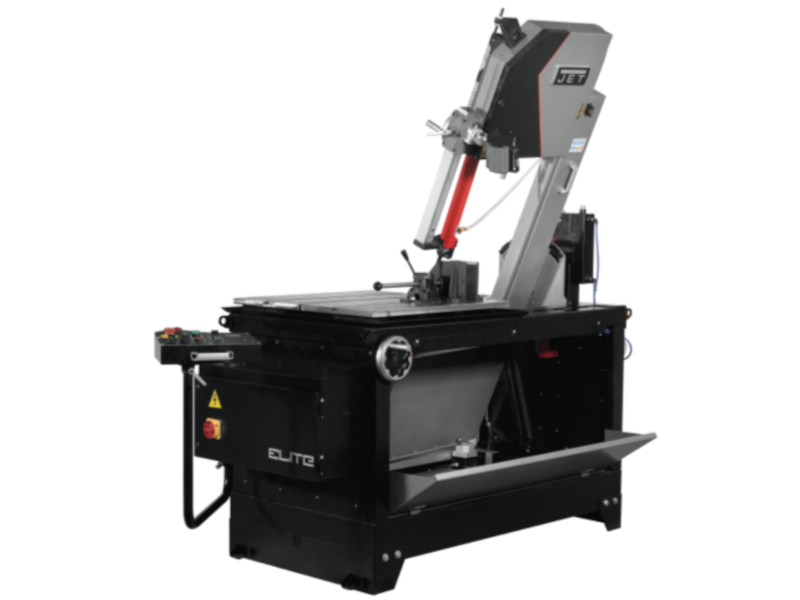

Jet Elite EVTBS16VS-230, 16" Vertical Tilt Frame Bandsaw, 230V/3PH, JT9-891200

$24,979.00

Reviews (0)

Electronic Variable Speed 76-430 SFPM with Digital Readout for FPM
Blade tension gauge helps to ensure the blade is in the correct cutting position
3° forward approach angle for increased efficiency in cutting of structural materials.
Quick action vise saves set up time and can be moved to either the right or left of the blade and fast locking
Fully adjustable air hydraulic control for bow travel
Heavy-duty steel construction reduces vibration and deflection
Automatic stops can be pre-set to stop advancement and return of the blade
CSA Certified Electrics following strict guidelines and electrical requirements and are certified by the CSA Group
Integrated pressurized wash off hose for easy machine clean up
Auto-shut off switch stops the sawing process

Stock Number	JT9-891200
Blade Size (In.)	1-1/16 x 0.035 x 168-1/2 4/6T
Accessories	Material Stop Wash-off hose Blade tension gauge Coolant system Leveling Feet LED Work Lamp Toolbox
Blade Guide	Carbide & Roller
Blade Length (In.)	168-1/2
Blade Speed (RPM)	76-430 Variable
Blade Speeds (SFPM)	76-430
Blade Thickness	0.035
Blade Width (In.)	0.035
Coolant Pump Motor	32W
Drive	EVS
Drive Type	Inverter Driven
Height (In.)	90.5
Input Power	230V 3ph
Maximum Vise Opening (In.)	17-1/2
Miter Angle Range (Deg.)	45 - 90 - 45
Model Number	EVTBS16V-230
Motor (HP)	2HP, 230V,3ph
Overall Dimensions (L x W x H) (In.)	94-1/2 x49-1/8 x 90-1/2
Prop 65	Cancer
Rectangle at 45 Degrees (In.)	13-1/4 x 16
Round Stock Capacity (Max.) (In.)	16
Shipping Dimensions (L x W x H) (In.)	94-1/2 x 49-1/8 x 90-1/2
Speeds	Variable
Table Length (In.)	29-1/2
Table Size (In.)	29-1/2 x 14-3/16
Table T-Slot (In.)	3/4
Table Width (In.)	14-3/16
Warranty	3 Year
Work Height (In.)	39-3/8
Gross Weight	1510.0
Net weight	1408.0
Speed Control	Electronic Variable Speed
Reservoir (Gal.)	60 Litter
T-Slots Number and Size (In.)	3/4
Round Capacity at 45° Right (in.)	13-1/4
Rectangle Capacity at 45° Left (in.) (HxW)	11-1/2 x 16
Rectangle Capacity at 45° Right (in.)(HxW)	13-1/4 x 13-1/4
Rectangle Capacity at 90° (in.) (HxW)	20 x 16
Round Capacity at 45° Left (in.)	11-1/2
Round Capacity at 90°(in.)	16
Square Capacity at 45° Left (in.) (H x W)	11-1/2 x 11-1/2
Square Capacity at 45° Right (in.) (HxW)	13-1/4 x 13-1/4
Square Capacity at 90° (in.) (HxW)	16 x 16
