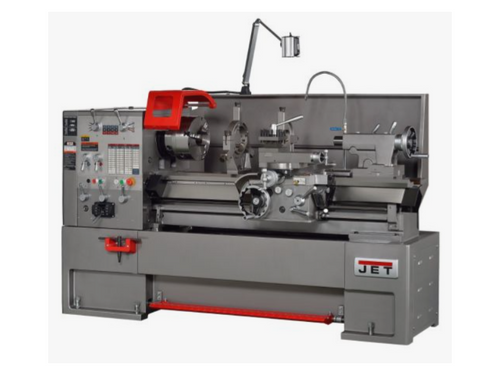

Jet EGH-1740, Elite 17x40, Large Spindle Bore Geared Head Lathe, 460V/3PH, JT1-2291
$41,969.00
- SKU:
- JETJT1-2291
Description
Reviews
Additional Info
Description
The Jet Elite EGH-1740 is perfect for when precision matters the most. The large spindle bore Elite lathes are the signature machines within the Elite lathe lineup. Engineered to meet world-class tolerances for spindle run out, bed alignment, and bed-way parallelism, these lathes take Precision, durability and safety, beyond what the market needs
| STOCK NUMBER | JT1-2291 |
|---|---|
| Max. swing over bed (in.) | 17 |
| Max. swing over cross slide (in.) | 11 |
| Swing Through Gap (in.) | 24-1/2 |
| Length of Gap (in.) | 7-2/3 |
| Distance between Centers (in.) | 40 |
| Hole Through Spindle (in.) | 3-1/8 |
| Spindle Mount | D1-6 |
| Spindle Taper | MT-5 |
| Number of Spindle Speeds | 12 |
| Range of Spindle Speeds (RPM) | 36 - 1,800 |
| Range of Longitudinal Feeds (IPR) | .0015 - .04 |
| Range of Cross Feeds (IPR) | .00075 - .02 |
| Number of Inch Threads | 45 |
| Range of Inch Threads | 2 to 72 |
| Number of Metric Threads | 39 |
| Range of Metric Threads (mm) | .2 - 14 |
| Max. Tool Size | 1 x 1 |
| Max. Compound Slide Travel (in.) | 6-2/7 |
| Max. Cross Slide Travel (in.) | 9-1/4 |
| Tailstock Spindle Travel (in.) | 5 |
| Taper in Tailstock Spindle | MT-4 |
| Follow Rest Capacity | 1/2 - 3 |
| Steady Rest Capacity | 3/8 - 6-3/4 |
| Width of Bed (in.) | 13-4/7 |
| Motor | 7.5HP, 460V, 3Ph |
| Prewired | 230V |
| Net Weight (lbs) | 3747 |
| Overall Dimensions (LxWxH/Inch) | 94 x 44 x 68 |
Features
- 3-1/8" Spindle Bore
- Matrix® Disc Clutch permits the changing of gears without stopping the motor, reducing wear
- Universal gearbox supports inch, metric, modular and diametral threads, without changing gears
- Anti-Float design eliminates backlash in the cross slide
- Steady rests feature ball bearing guides for smooth material movements
- Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant
- Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004
- Hardened and ground gears in headstock reduce vibration and deflection
- Wider bedways absorb vibration
- Turcite-B coating between bed and carriage provides friction free motion in all linear directions
- One-Shot lubrication in the carriage reduces maintenance
- Overload clutch at feed shaft prevents the carriage from crashing into the chuck
- Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock
- Hardened and ground bedways provide accurate longitudinal movements
- Front facing chip pan allows easy chip removal from the front of the machine
- Certified Meehanite® castings retain their tolerances and remain rigid through many years of machining
Standard Equipment
- 10" 3-Jaw chuck
- Backplate for 10" Chuck
- Steady Rest-Ball Bearing
- Follow Rest- Brass Tipped
- 4-Way Tool Post
- Chuck Guard
- Micro-Carriage Stop
- Threading Dial
- Leveling Pads
- Tool Box With Tools
Reviews (0)
Be the first to review this product.
Additional Info
- SKU:
- JETJT1-2291
- Shipping:
- $0.00 (Fixed Shipping Cost)
- Mfr Part #:
- JT1-2291
- Style (Type):
- Engine - Large Spindle Bore
- Spindle Bore (IN.):
- 3-1/8
- Swing Over Bed (IN.):
- 17
- Distance Between Centers (IN.):
- 40
