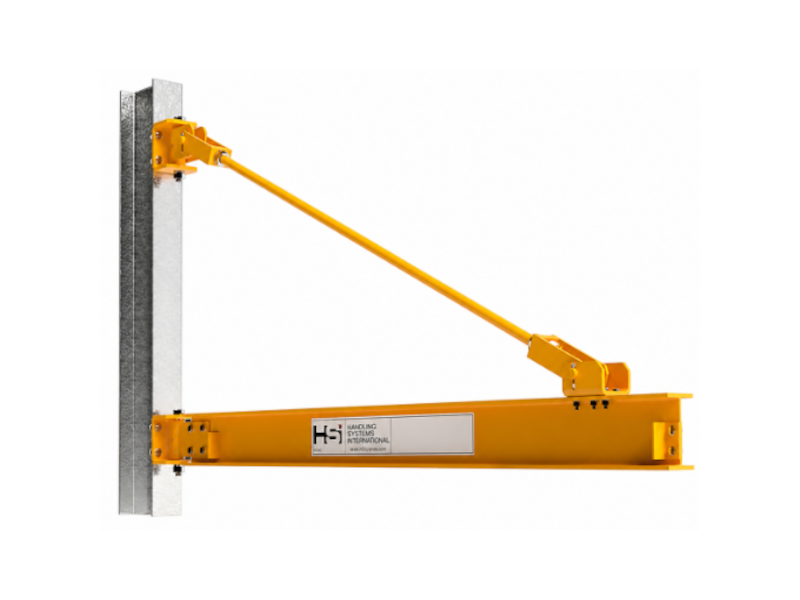

HSI Tie Rod Wall-Mounted Jib Crane, 4 Ton
$5,452.38
- SKU:
- HANL-311-7
Estimated Lead Time: 2-3 weeks
Description
Reviews
Additional Info
Description
An economical heavy duty wall mounted lifting solution ideal for use in bays, along walls, within work cells, or as a supplement to existing overhead cranes or gantry systems.
Similar in function to a cantilever style jib crane, but at a lower cost when available headroom is not a constraint.
Capacities up to 12 ton. Benefits vs. Cantilever Style: most economical solution, less beam deflection, easier to rotate in large applications, hook travel closer to mounting column
HSI Model 311 Tie Rod Wall Mounted Jib Crane, 4 Ton - 8' to 30' Span
NOTE: Price listed is for smallest size model #311-8000-8 (RFQ for pricing on others).
*Not seeing what you're looking for? Please RFQ, many sizes available not listed.*
| Part Number | Capacity (Lbs.) | Span (Ft.) | Weight |
| 311-8000-8 | 8000 | 8 | 972 |
| 311-8000-10 | 8000 | 10 | 1058 |
| 311-8000-12 | 8000 | 12 | 1144 |
| 311-8000-14 | 8000 | 14 | 1230 |
| 311-8000-16 | 8000 | 16 | 1478 |
| 311-8000-18 | 8000 | 18 | 1582 |
| 311-8000-20 | 8000 | 20 | 1951 |
| 311-8000-22 | 8000 | 22 | 2089 |
| 311-8000-24 | 8000 | 24 | 2227 |
| 311-8000-26 | 8000 | 26 | 2365 |
| 311-8000-28 | 8000 | 28 | 2503 |
| 311-8000-30 | 8000 | 30 | 2641 |
Available Options (RFQ):
- Tagline Festooning
- Hoists & Trolleys
- Rotation Stops
- Motorized Rotation
- Outdoor Application
Reviews (0)
Be the first to review this product.
Additional Info
- SKU:
- HANL-311-7
- Availability:
- Estimated Lead Time: 2-3 weeks
- Shipping:
- Calculated at Checkout
- Mounting:
- Wall
- Standard Capacities:
- Up to 4 tons
- Spans:
- Up to 30 ft.
- Power Option:
- Yes
- Heights:
- Determined by structure
