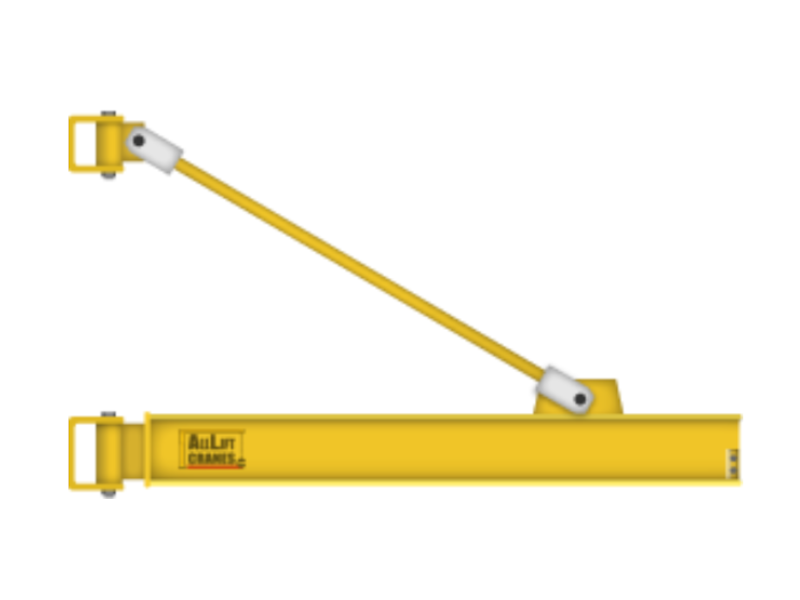

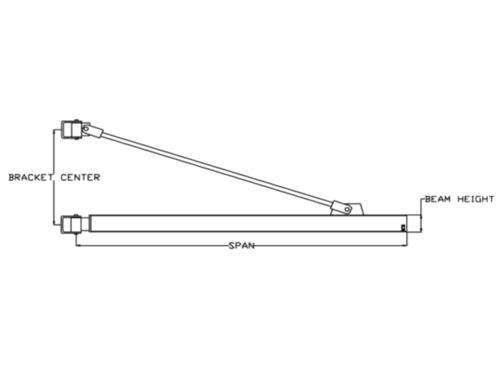

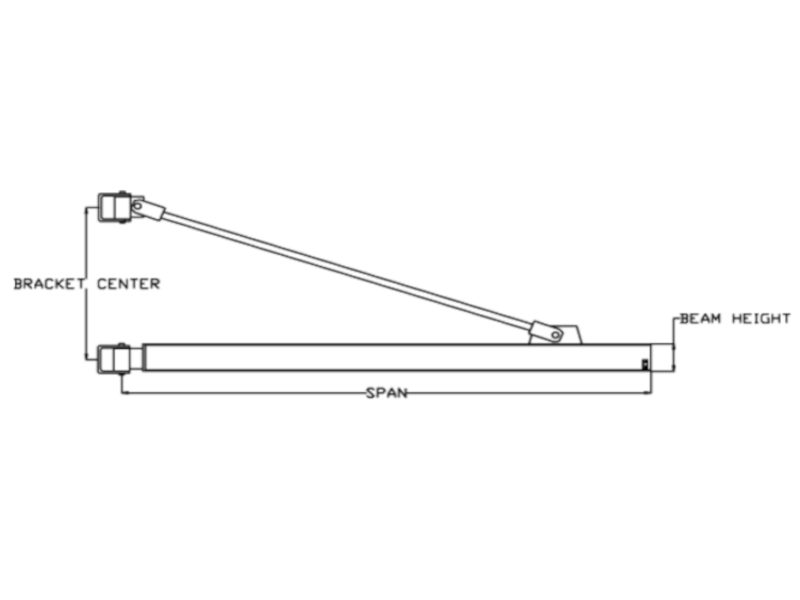

The All Lift Overbraced Tie Rod Wall Mounted Jib Crane delivers hoist coverage with up to 180° of rotation. It mounts to a wall or structural building beam using two brackets, with the boom extending perpendicular from the lower bracket. A tie rod connects from a bracket near the end of the boom to the upper wall mount, providing structural support. This is the most economical wall mounted jib crane option, though it does require more headroom and places greater force on the mounting surface compared to other wall mounted designs.

Ideal for individual use in bays, along walls, or between building columns, and works well as a supplement to an existing overhead crane or monorail system. The overbraced tie rod design is a great solution where floor space is limited or unavailable for a freestanding jib.

All Lift TWR-Series Overbraced Tie Rod Wall Mounted Jib Crane, 2 Ton - 8' to 30' Span

NOTE: Price listed is for smallest size model #TRW408 (RFQ for pricing on others).

Available Options (RFQ):

• Tagline Festooning
• Hoists & Trolleys
• Rotation Stops

Installation Requirements:

• Mounting bolts not included – use grade 5 or better provided by the installer.
• Must have a structurally sound wall, column, or base for supporting the Jib Crane.
