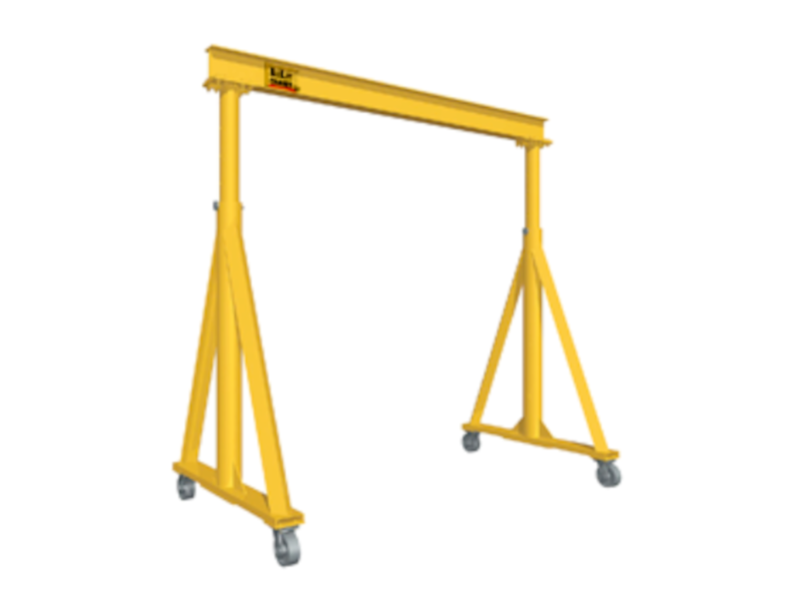

All Lift Fixed Height Gantry Crane, 1 Ton

All Lift Fixed Height Gantry Crane, 1 Ton

$3,071.00

Reviews (0)

SKU:: ALLC-FG-Series-1

Estimated Lead Time: 2-3 weeks

Description
Reviews
Additional Info

Description

The All Lift Fixed Height Steel Gantry Crane (1 Ton) is an economical portable lifting solution for moving materials anywhere in your facility. Four large steel casters (two with brakes) allow the gantry to be rolled into position and locked in place for lifting, then easily transported to another location when the job is done.

This is a cost-effective alternative to permanent overhead structures in areas with infrequent or varied lifting needs. Available in capacities from 1 ton to 10 ton.

Application: Well suited for small warehouses, light to heavy duty work areas, multi-level facilities, or any location where a permanent foundation or fixed crane isn't practical.

Includes (4) steel swivel casters, (2) with brakes.

All Lift FG-Series Fixed Height Gantry Crane, 1 Ton - 12' to 16' HUB (Height Under Beam)

NOTE: Price listed is for smallest size model #FG1-812 (RFQ for pricing on others).

Capacity (Pounds)	Model	Span	Hub Fixed	Beam Height	Flange Width	Caster Diameter	Unit Weight
1 Ton	FG1-812	8’	12’	6”	4”	8”	869#
1 Ton	FG1-1012	10’	12’	6”	4”	8”	901#
1 Ton	FG1-1212	12’	12’	6”	4”	8”	933#
1 Ton	FG1-1612	16’	12’	8”	5-1/4”	8”	1,087
1 Ton	FG1-814	8’	14’	8”	5-1/4”	8”	1,061#
1 Ton	FG1-1014	10’	14’	8”	5-1/4”	8”	1,109#
1 Ton	FG1-1214	12’	14’	8”	5-1/4”	8”	1,151#
1 Ton	FG1-1614	16’	14’	12”	6 ½”	8”	1,445#
1 Ton	FG1-816	8’	16’	12”	6-1/2”	8”	1,286#
1 Ton	FG1-1016	10’	16’	12”	6-1/2”	8”	1,346#
1 Ton	FG1-1216	12’	16’	12”	6-1/2”	8”	1,406#
1 Ton	FG1-1616	16’	16’	12”	6-1/2”	8”	1,526#

Available Options (RFQ):

Tagline Festooning
Hoists & Trolleys
Poly casters
Lever Pullers with brackets for assisting height adjustment. Includes (2) pullers and brackets.
V-Groove Casters & Track
