All Lift Adjustable Height Steel Gantry Crane, 1 Ton

All Lift Adjustable Height Steel Gantry Crane, 1 Ton

$4,504.00

Reviews (0)

SKU:: ALLC-TG-Series-1

Estimated Lead Time: 2-3 weeks

Description
Reviews
Additional Info

Description

The All Lift Telescoping Gantry Crane is an economical portable lifting solution for moving materials anywhere in your facility. The beam height is adjustable from 8' to 12' (or 12' to 16') using two built-in pullers, allowing you to set the correct lift height for each specific load.

Four large steel casters (two with brakes) make it easy to roll into position, lock in place for lifting, and transport to another location when the job is done. This is a cost-effective alternative to permanent overhead structures in areas with infrequent or varied lifting needs. Available in capacities from 1 ton to 5 ton.

Application: Well suited for small warehouses, light to medium duty work areas, multi-level facilities, or any location where a permanent foundation or fixed crane isn't practical.

Includes (4) steel swivel casters, (2) with brakes and (2) cable pullers for adjusting height. *Not designed to be moved under load*.

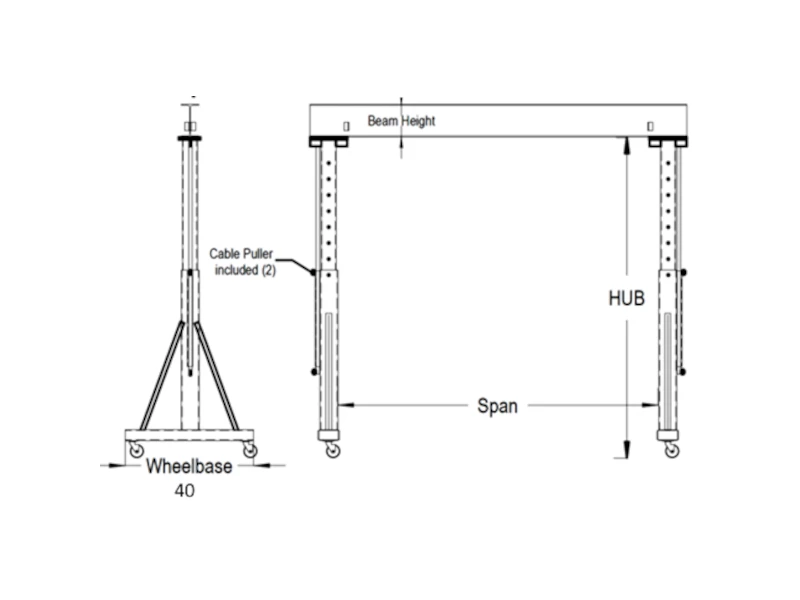

All Lift TG-Series Adjustable Height Steel Gantry Crane, 1 Ton - 8' to 12' or 12' to 16' HUB (Height Under Beam)

NOTE: Price listed is for smallest size model #TG1-812 (RFQ for pricing on others).

Capacity	Model	Span	Hub Adjustment	Beam Height	Flange Width	Caster Diameter	Unit Weight
1 Ton	TG1-812	8’	8’ - 12’	6”	4”	8”	1,015#
1 Ton	TG1-1012	10’	8’ - 12’	6”	4”	8”	1,083#
1 Ton	TG1-1212	12’	8’ - 12’	6”	4”	8”	1,115#
1 Ton	TG1-1412	14’	8’ - 12’	8”	5-1/4”	8”	1,223#
1 Ton	TG1-1612	16’	8’ - 12’	8”	5-1/4”	8”	1,269#
1 Ton	TG1-1812	18’	8’ - 12’	12”	6-1/2”	8”	1,487#
1 Ton	TG1-2012	20’	8’ - 12’	12”	6-1/2”	8”	1,547#
1 Ton	TG1-816	8’	12’ - 16’	12”	6-1/2”	8”	1,496#
1 Ton	TG1-1016	10’	12’ - 16’	12”	6-1/2”	8”	1,556#
1 Ton	TG1-1216	12’	12’ - 16’	12”	6-1/2”	8”	1,616#
1 Ton	TG1-1416	14’	12’ - 16’	12”	6-1/2”	8”	1,626#
1 Ton	TG1-1616	16’	12’ - 16’	12”	6-1/2”	8”	1,736#
1 Ton	TG1-1816	18’	12’ - 16’	12”	8”	8”	1,946#
1 Ton	TG1-2016	20’	12’ - 16’	12”	8”	8”	2,026#
