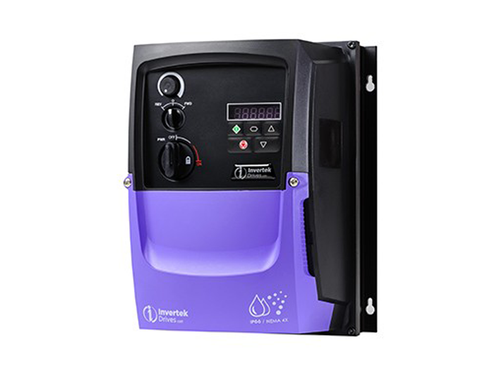

1HP-350HP OPTIDRIVE P2 High Performance Variable Frequency Drive

Request Quote for Pricing


1-2 business days

Current stock: 0


The combination of high performance together with ease of use allows Optidrive P2 to handle even the most demanding applications. The Optidrive P2 Variable Frequency Drive has been uniquely developed to allow a wide range of different motor types to be used, with only parameter changes being required. This technology allows the same drive to be used in a wide range of applications.


  • Multiple Modes:
    • Closed Loop Vector for high performance
    • Open loop PM Motor Control
    • Sensorless vector & V/Hz control
  • Up to 200% torque at zero speed
  • Sensorless speed regulation better than 1%
  • Torque control
  • DC bus sharing
  • Safe Torque Off function
  • Output to 500Hz (V/F Mode), 100Hz (Vector Mode)
  • Built-in 100% rated DB transistor up to 350HP
  • Integral PI controller
  • drive.web savvy function block programming
  • Silent running with up to 32KHz switching
  • 200% starting torque
  • Bipolar 12 bit analog input (isolated +/-10V or 4-20mA)
  • ModbusRTU, RS485 port
  • CANopen port
  • Filters & DC chokes 25-250 HP
  • Power loss ride through
  • Process control options
  • Programmable i/o
  • Hours run log & trip log
  • Cartridge fans for easy maintenance (NEMA12 drives)


  • 230V or 460V
  • NEMA0 (IP20), NEMA12 (IP55), NEMA4X (IP66)
  • Encoder feedback
  • Additional basic & smarty i/o options
  • EIP, Modbus TCP/IP, Profibus, DeviceNet, BACnet
  • Memory stick with bluetooth interface
  • Remote keypad
  • 2Khz output in V/Hz mode
  • OLED text display
  • Through panel mount for NEMA 12 versions
